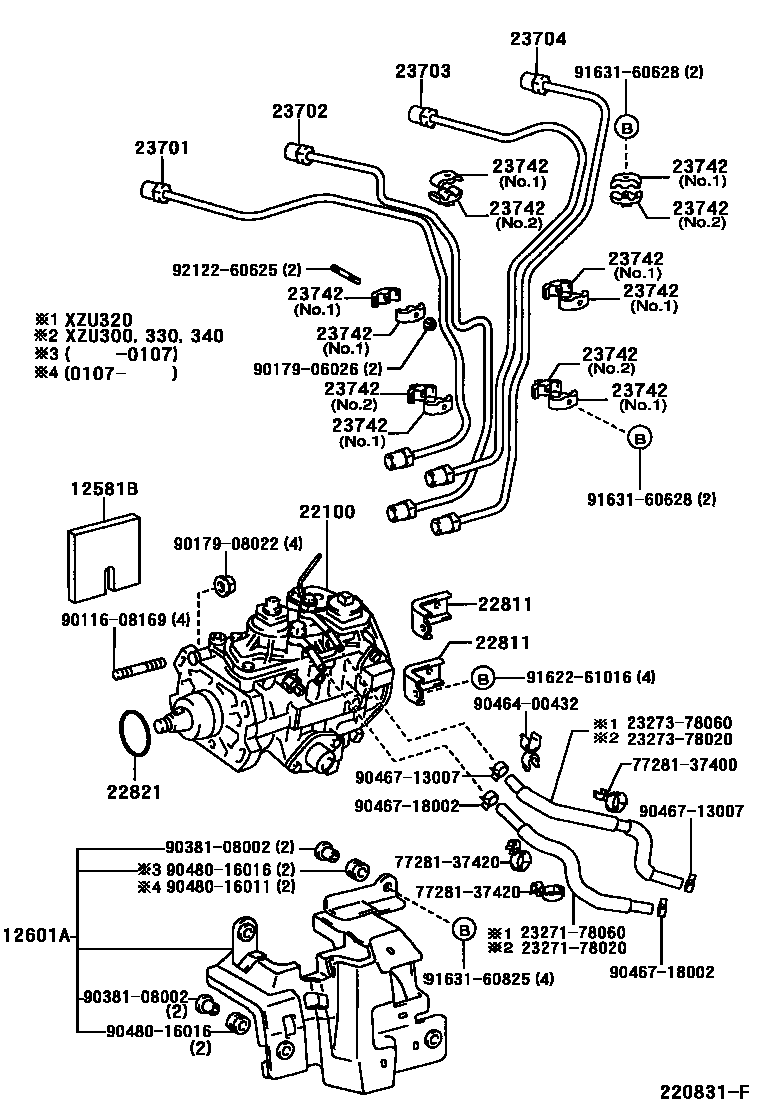

INJECTION PUMP ASSEMBLY

0001 1 0002 1

12581BINSULATOR, CYLINDER BLOCK, NO.1

main12581-58050i15BFTE..XZU300,320,330,340199907-200105

main12581-58051i15BFTE..XZU300,320,330,340200105-200206

12601AINSULATOR, CYLINDER BLOCK

main12601-58010i15BFTE..XZU300,320,330,340199907-200107

main12601-58011i15BFTE..XZU300,320,330,340200107-200206

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-5C590i15BFTE..XZU300,320,330,340199907-200106

sub82989-36010

sub82999-12020

main22100-5C591i15BFTE..XZU300,320,330,340200106-200212

main22100-78072iS05C..XZU302,307,342200010-200105

sub82711-1E360

sub90980-11073

main22100-78120iS05C..XZU302,307,342200105-200206

sub22100-E0130

22811STAY, INJECTION PUMP, NO.1

main22801-78010iS05C..XZU302,307,342200010-200206

main22811-58060×2i15BFTE..XZU300,320,330,340199907-200212

22821GASKET, INJECTION PUMP

main90301-49003i15BFTE..XZU300,320,330,340199907-200212

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-58050i15BFTE..XZU300,320,330,340199907-200212

main23701-78041iS05C..XZU302,307,342200010-200206

subS2370-12051

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-58050i15BFTE..XZU300,320,330,340199907-200212

main23702-78040iS05C..XZU302,307,342200010-200206

subS2370-21990

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-58050i15BFTE..XZU300,320,330,340199907-200212

main23703-78040iS05C..XZU302,307,342200010-200206

sub23703-78041

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-58050i15BFTE..XZU300,320,330,340199907-200212

main23704-78040iS05C..XZU302,307,342200010-200206

sub23704-78041

23742CLAMP, INJECTION PIPE, NO.2

main23741-58020×8i15BFTE..XZU300,320,330,340200105-200212

NO.1

main23742-27010×8i15BFTE..XZU300,320,330,340199907-200105

NO.1

main23742-58020×4i15BFTE..XZU300,320,330,340199907-200105

NO.2

main23742-58030×4i15BFTE..XZU300,320,330,340200105-200212

NO.2

main23742-66020×4iS05C..XZU302,307,342200010-200206

2327178020VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1

main23271-78020

2327178060VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1

main23271-78060

2327378020VALVE, THERMOSTATIC VACUUM SWITCHING, NO.3

main23273-78020

2327378060VALVE, THERMOSTATIC VACUUM SWITCHING, NO.3

main23273-78060

7728137400BRACKET, FUEL MAIN TUBE, NO.1

main77281-37400

7728137420BRACKET, FUEL MAIN TUBE, NO.1

main77281-37420

9011608169

main90116-08169

9017906026

main90179-06026

9017908022

main90179-08022

9038108002

main90381-08002

9046400432

main90464-00432

9046713007

main90467-13007

9046718002

main90467-18002

9048016011

main90480-16011

9048016016

main90480-16016

9162261016

main91622-61016

9163160628

main91631-60628

9163160825

main91631-60825

9212260625

main92122-60625

29 parts on this diagram · 2 diagrams in section
