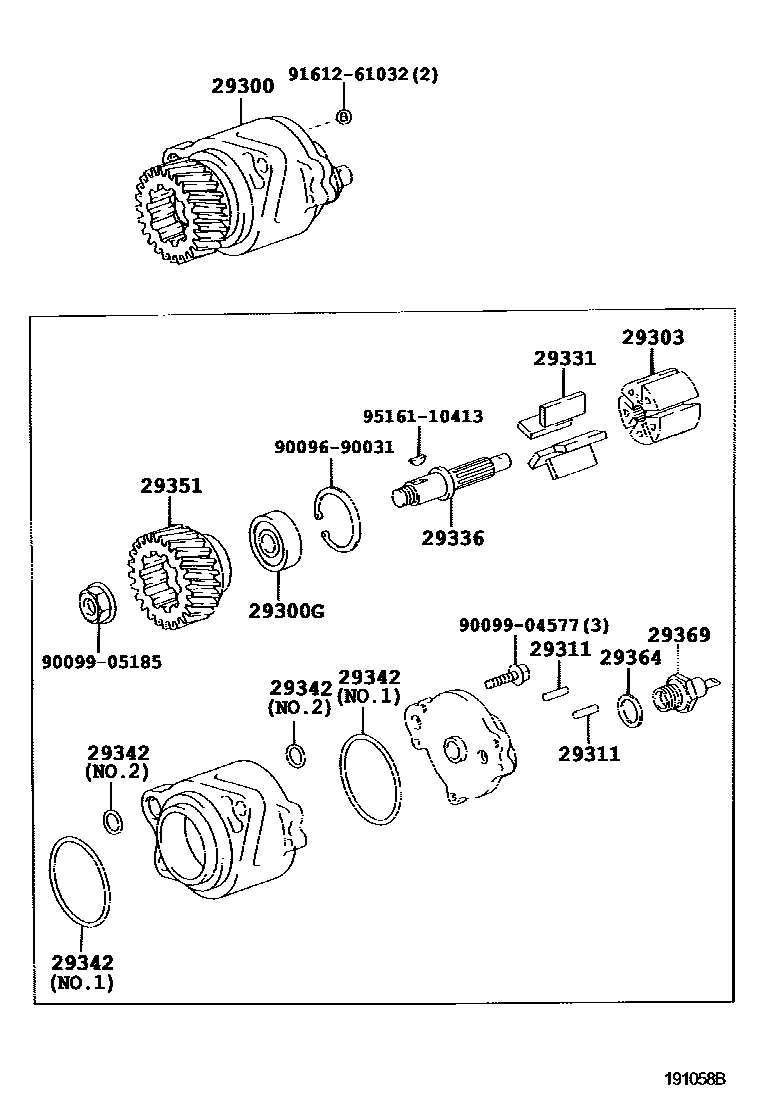

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-58040i15BFTE..XZU300,320,330,340199907-200212

main29300-78050iS05C..XZU302,307,342200010-200206

29300GBEARING, BALL

main90099-10185iS05C,15BFTE..XZU30#,320,330,34#199907-200212

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020iS05C..XZU302,307,342200010-200206

main29337-58040i15BFTE..XZU300,320,330,340199907-200212

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2iS05C,15BFTE..XZU30#,320,330,34#199907-200212

29331BLADE, VACUUM PUMP, A

main29331-27010×5i15BFTE..XZU300,320,330,340199907-200212

main29331-67020×5iS05C..XZU302,307,342200010-200206

29336SHAFT, VACUUM PUMP

main29336-58040i15BFTE..XZU300,320,330,340199907-200212

main29336-58050iS05C..XZU302,307,342200010-200206

29342PACKING, VACUUM PUMP

main29342-17010iS05C..XZU302,307,342200010-200206

INNER

main29342-58010iS05C..XZU302,307,342200010-200206

OUTER

main29342-64010×2i15BFTE..XZU300,320,330,340199907-200212

NO.2

29351GEAR, VACUUM PUMP

main29351-58050i15BFTE..XZU300,320,330,340199907-200212

main29351-89101iS05C..XZU302,307,342200010-200206

29364WASHER, VACUUM PUMP

main29364-66010i15BFTE..XZU300,320,330,340199907-200212

29369VALVE SUB-ASSY, CHECK

main29369-64030i15BFTE..XZU300,320,330,340199907-200212

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9161261032

main91612-61032

9516110413

main95161-10413

15 parts on this diagram · 2 diagrams in section
