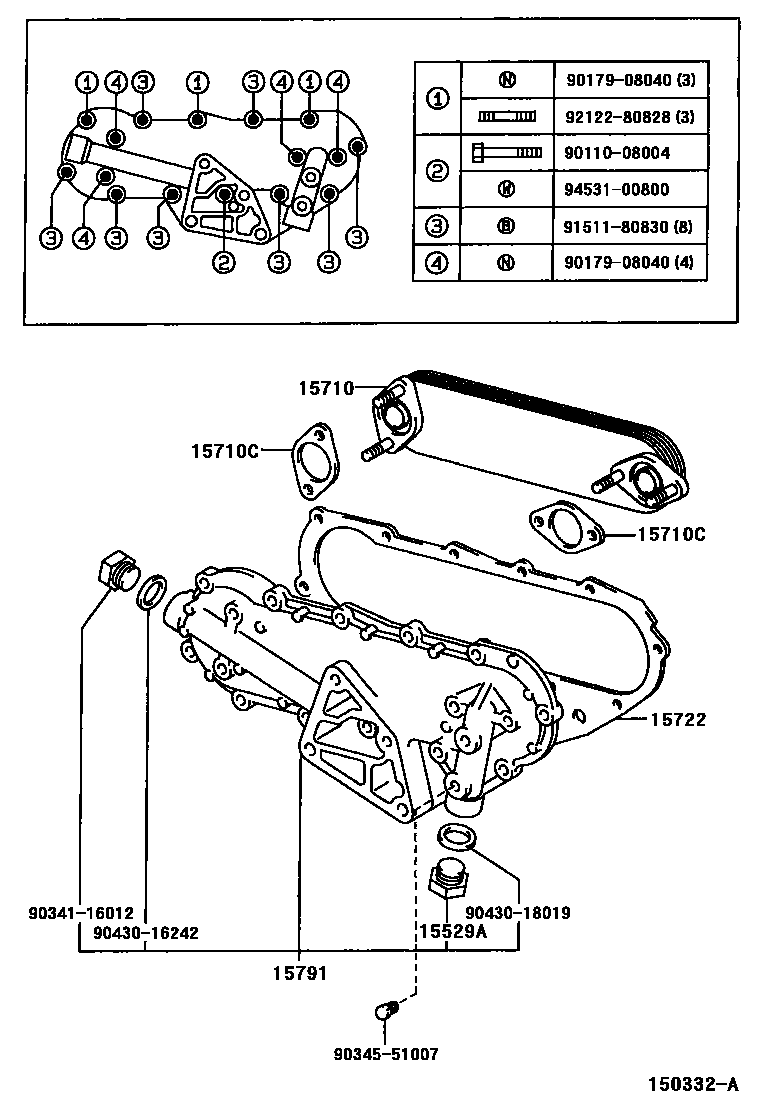

ENGINE OIL COOLER

0001 1 0002 1

15529APLUG

main90341-18006i15BFTE..XZU300,320,330,340199907-200212

15710COOLER ASSY, OIL

main15710-58080i15BFTE..XZU300,320,330,340199907-200212

main15710-78030iS05C..XZU302,307,342200010-200206

15710CGASKET(FOR OIL COOLER)

main15785-58010×2i15BFTE..XZU300,320,330,340199907-200212

15722GASKET, OIL COOLER

main15725-56020i15BFTE..XZU300,320,330,340199907-200212

15791CASE, OIL COOLER

main15701-58050i15BFTE..XZU300,320,330,340199907-200212

9011008004

main90110-08004

9017908040

main90179-08040

9034116012

main90341-16012

9034551007

main90345-51007

9043016242

main90430-16242

9043018019

main90430-18019

9151180830

main91511-80830

9212280828

main92122-80828

9453100800

main94531-00800

14 parts on this diagram · 2 diagrams in section
