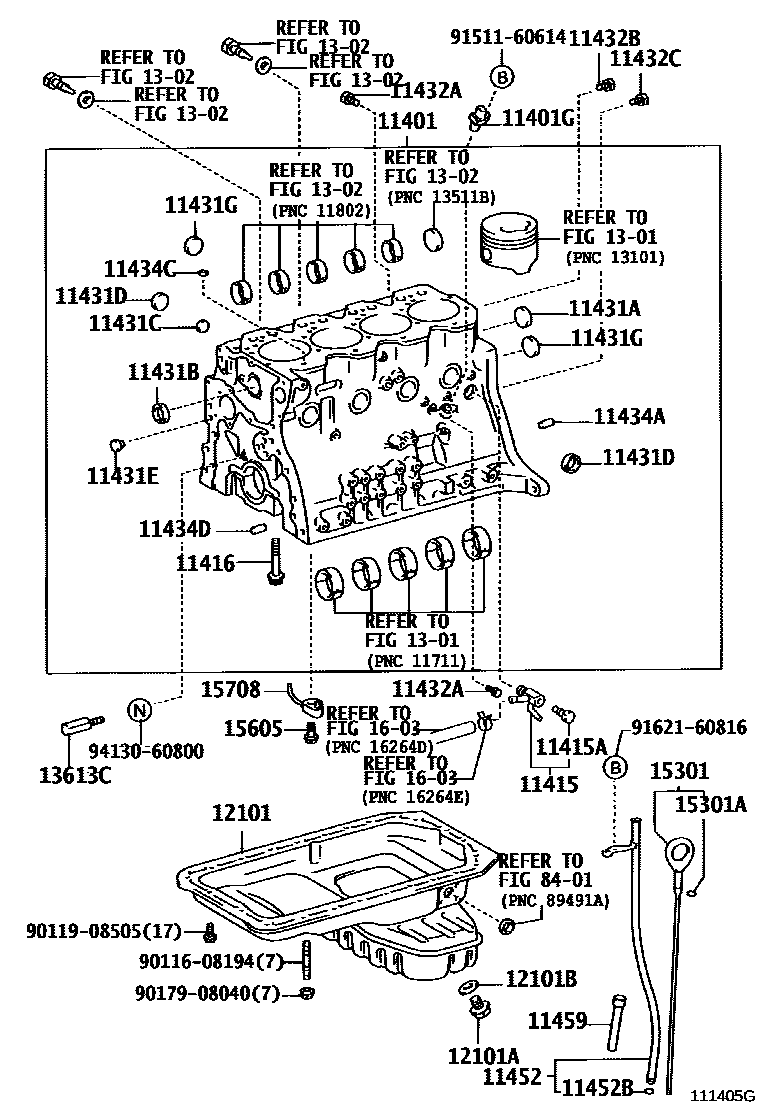

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*16-2.0PX126-32
*16-2.0PX109-32
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
OD=50
OD=45
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
OD=42
OD=50
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
OD=22
OD=30
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
OD=17
OD=35
11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
OD=26
OD=14
11431GPLUG, TIGHT
OD=26
OD=50
11432APLUG, W/HEAD TAPER SCREW, NO.1
11432BPLUG, W/HEAD TAPER SCREW, NO.2
11432CPLUG, W/HEAD TAPER SCREW, NO.3
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=18,OD=8
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=16,OD=8
L=9.0,OD=14.5
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=18,OD=8
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11459SUPPORT, OIL LEVEL GAGE GUIDE
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
1301CRANKSHAFT & PISTON
1302CAMSHAFT & VALVE
13613CNOZZLE, OIL
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15605VALVE SUB-ASSY, OIL CHECK
15708NOZZLE SUB-ASSY, OIL, NO.1
1603RADIATOR & WATER OUTLET
8401SWITCH & RELAY & COMPUTER
9011608194
main90116-08194
9011908505
main90119-08505
9017908040
main90179-08040
9151160614
main91511-60614
9162160816
main91621-60816
9413060800
main94130-60800
38 parts on this diagram · 2 diagrams in section
