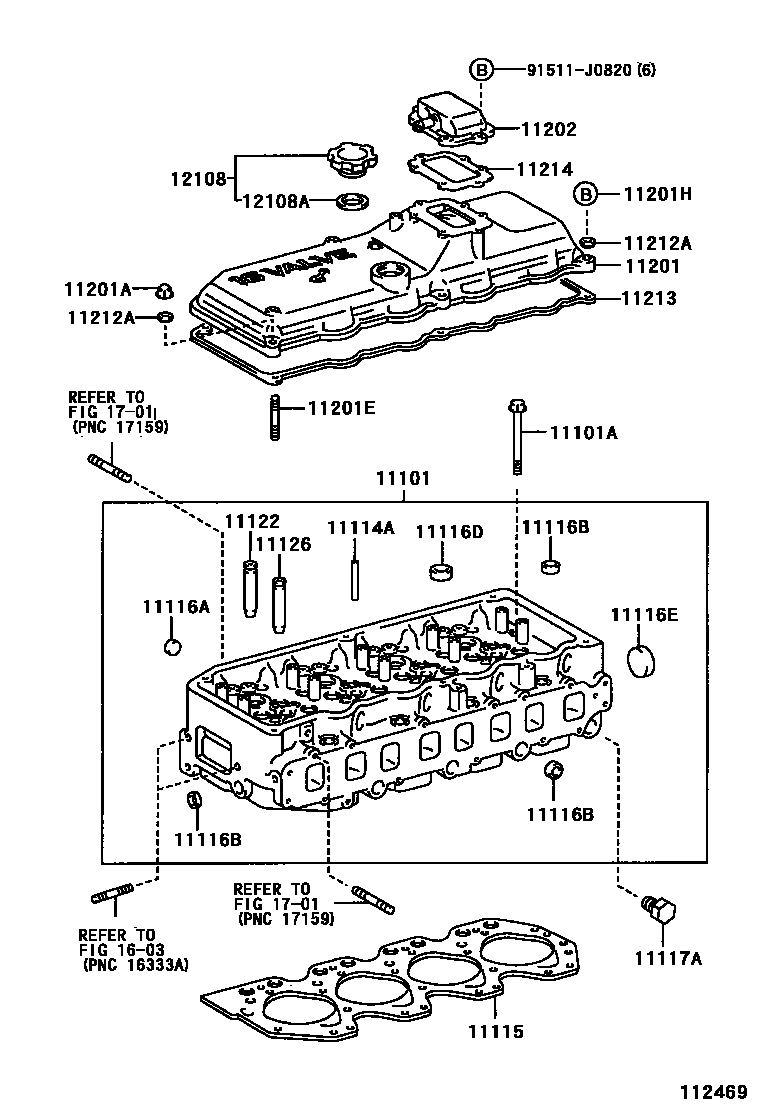

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-58100i15BFTE..XZU300,320,330,340199907-200212

main11101-78060iS05C..XZU302,307,342200010-200112

main11101-78061iS05C..XZU302,307,342200112-200206

11101ABOLT(FOR CYLINDER HEAD SET)

main90031-09051×9iS05C..XZU302,307,342200010-200206

NO.1

main90038-01023×4iS05C..XZU302,307,342200010-200206

NO.2

main90038-01024×5iS05C..XZU302,307,342200010-200206

NO.3

main90910-02084×18i15BFTE..XZU300,320,330,340199907-200212

11114APIN, STRAIGHT

main90250-09007×8i15BFTE..XZU300,320,330,340199907-200212

L=53.5,OD=9

11115GASKET, CYLINDER HEAD

main11115-58131i15BFTE..XZU300,320,330,340199907-200212

T=1.20

main11115-58141i15BFTE..XZU300,320,330,340199907-200212

T=1.30

main11115-58151i15BFTE..XZU300,320,330,340199907-200212

T=1.40

main11115-78021iS05C..XZU302,307,342200010-200112

main11115-78030iS05C..XZU302,307,342200112-200206

11116APLUG, TIGHT, NO.1

main90331-14006×4i15BFTE..XZU300,320,330,340199907-200212

11116BPLUG, TIGHT, NO.2

main90033-31024×4iS05C..XZU302,307,342200010-200206

main96411-62500×8i15BFTE..XZU300,320,330,340199907-200212

11116DPLUG, TIGHT, NO.4

main90033-31023×5iS05C..XZU302,307,342200010-200206

main96411-63000×4i15BFTE..XZU300,320,330,340199907-200212

11116EPLUG, TIGHT, NO.5

main90033-31022×8iS05C..XZU302,307,342200010-200206

main96411-64000i15BFTE..XZU300,320,330,340199907-200212

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90345-54005i15BFTE..XZU300,320,330,340199907-200212

11122BUSH, INTAKE VALVE GUIDE

main11122-58020×8i15BFTE..XZU300,320,330,340199907-200212

STD

11126BUSH, EXHAUST VALVE GUIDE

main11122-58020×8i15BFTE..XZU300,320,330,340199907-200212

STD

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-58070i15BFTE..XZU300,320,330,340199907-200212

main11211-78020iS05C..XZU302,307,342200010-200112

main11211-78021iS05C..XZU302,307,342200112-200206

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90179-08040×2i15BFTE..XZU300,320,330,340199907-200212

11201EBOLT, STUD(FOR CYLINDER HEAD COVER SET)

main92112-60835×2i15BFTE..XZU300,320,330,340199907-200212

11201HBOLT(FOR CYLINDER HEAD COVER)

main90031-05013×13iS05C..XZU302,307,342200010-200206

main91511-60835×4i15BFTE..XZU300,320,330,340199907-200212

11202COVER SUB-ASSY, CYLINDER HEAD, LH

main11202-58010i15BFTE..XZU300,320,330,340199907-200212

11212ACUSHION, CYLINDER HEAD COVER

main11228-56010×6i15BFTE..XZU300,320,330,340199907-200212

11213GASKET, CYLINDER HEAD COVER

main11213-58021i15BFTE..XZU300,320,330,340199907-200212

main11213-78020iS05C..XZU302,307,342200010-200206

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-58010i15BFTE..XZU300,320,330,340199907-200212

12108CAP SUB-ASSY, OIL FILLER

main12108-78010iS05C..XZU302,307,342200010-200206

main12180-55010i15BFTE..XZU300,320,330,340199907-200212

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i15BFTE..XZU300,320,330,340199907-200212

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

91511J0820

main91511-J0820

24 parts on this diagram · 2 diagrams in section
