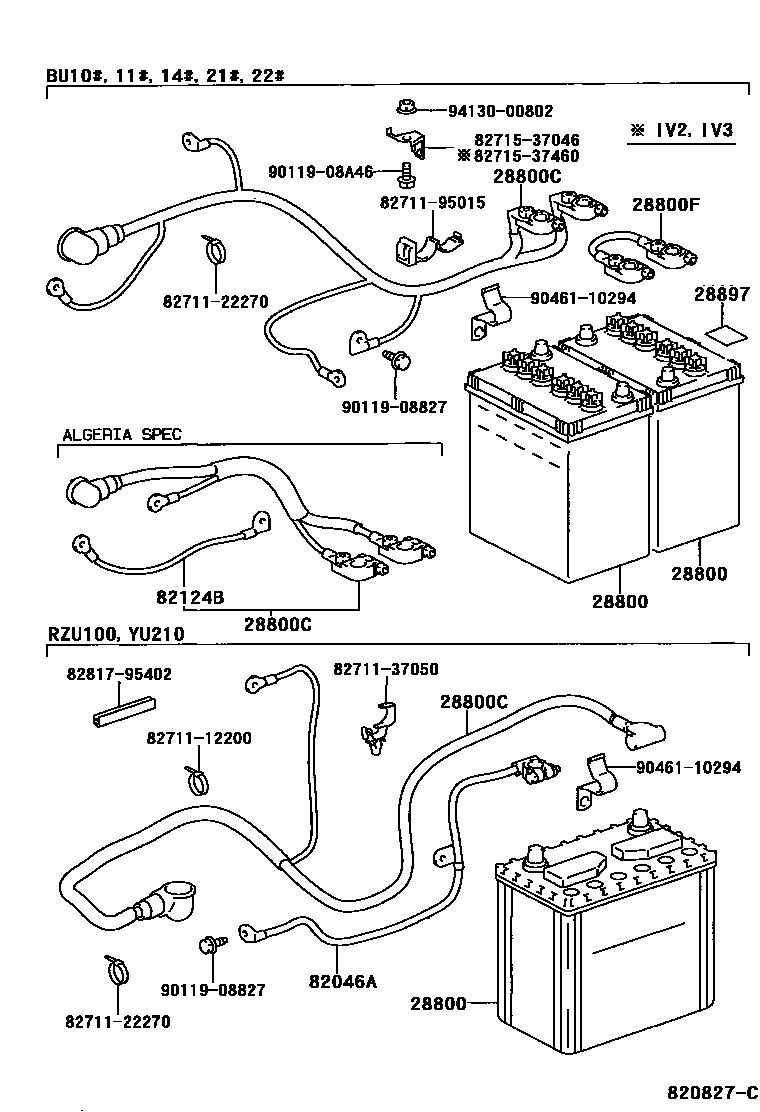

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-14010×2i15BF..BU102..ST199705-199707

55D23R,TAIWAN SPEC

main28800-15020×2i15BFT..BU142..EUR;14B,15BFT..BU141,222..LHD;14B,15BFT..BU102,111,142..(20T,30T)..IV3;14B,15BFT..BU211,212..RHD..40T..GEN..(IV2,IV3); 4Y..YU210;3RZFE..RZU100..15T200003-200103

55D23R

main28800-15022×2i14B..BU141,221..LHD;14B..BU211..LHD..40T..CBU;14B..BU101..LHD..WT..IV3..TS;14B,15BFT..BU102,111,142..(20T,30T)..IV3;14B,15BFT..BU211,212..RHD..40T..(IV2,IV3)200111-200211

55D23R

main28800-46012i14B..BU101,141..SA;15BFT..BU212..LHD..40T199808-200003

75D31R

main28800-46020i15BF..BU212..RHD;15BFT..BU222..SA;15BFT..BU212..CBU;15BFT..BU212..LHD..40T;14B,15BF..BU211,221,222..(ARL,GEN,SA)..(CBU,IV3);14B,15BF,3B..BU100,101,14#..(T1,T3,TW2)..(ARL,GEN)199505-200211

105E41R

main28800-46050i14B..BU211..LHD..30T..IV3200211

75D31R

main28800-48011i14B..BU211,221..GEN..(CBU,IV3);14B,3B..BU100,101,111,140,141..(DM1,T1,T3,TW2)..(GEN,SA)199605-199808

75D31R,SINKOUBE

main28800-54040i14B,3B..BU10#,11#..DM1,T2199505-200003

95D31R

main28800-54290i14B..BU102,212,222..T3199505-199703

130E41R

main28800-64062×2i14B..BU211..LHD..T3;14B..BU101..175T..GEN;15BFT..BU212..RHD..IV3;15BFT,15BFTE..BU213,222,223..GEN200003-200112

95D31R

main28800-67030i3RZFE..RZU100..RHD199703-200009

80D26R

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-37022i14B..BU111..RHD199505-199703

HONG KONG SPEC

main82021-37023i15BF..BU112199811-199908

main82021-37131i14B..BU101..RHD..WT..IV3199505-199703

HONG KONG SPEC

main82021-37132i15BFT..BU102,142..RHD200007

main82021-37141i15BF..BU102..WT..20T..TB199703-199811

main82021-37142i15BF..BU102..WT..20T..TB199811-199908

main82021-37151i15BFT..BU142..GEN;14B,3B..BU100,101,140,141..EUR,GEN,SA199505-199811

main82021-37152i15BFT..BU142..25T..GEN;14B,3B..BU100,101,140,141..GEN,SA199811

main82021-37161i14B,15BF,3B..BU100,102,142..(T3,TW2)..(ARL,TAIW); 14B,3B..BU100,101,140,141..GEN199505-199811

W(105E41R BATTERY)

main82021-37162i14B..BU101..GEN;14B,15BF,3B..BU100,14#..(T3,TW2)..(ARL,GEN)199811

W(105E41R BATTERY)

main82021-37171i14B,3B..BU11#..DM1199505-199610

main82021-37172i14B,3B..BU11#..DM1199610-199811

main82021-37173i14B,3B..BU110,111..CBU199811

main82021-37181i14B..BU111..IV3199505-199811

main82021-37182i14B..BU111..IV3199811

main82021-37191i14B..BU141..LHD199505-199811

ALGERIA SPEC

main82021-37192i14B..BU141..LHD199811-200111

ALGERIA SPEC

main82021-37231i14B..BU102..WT..20T..TB199505-199610

main82021-37232i14B,3B..BU100,102..WT..20T..TB199610-199811

main82021-37233i14B,3B..BU100,101..ARL..TB199811

main82021-37301i3RZFE..RZU100199703-199708

main82021-37302i3RZFE..RZU100..RHD199708-200009

main82021-37351i15BFT..BU212..LHD..40T;14B..BU211,221..T3..GEN..(CBU,IV3)199808-199811

main82021-37352i15BFT..BU212..LHD..40T;14B..BU211,221..T3..GEN..(CBU,IV3)199811

main82021-37361i14B..BU211,221..GEN; 15BFT..BU212;14B,15BF..BU21#,22#..T3..(ARL,SA,TAIW)199505-199511

W(105E41R BATTERY)

main82021-37362i15BFT..BU222..SA;15BFT..BU212..CBU;14B..BU211..30T..SA;15BFT..BU212..LHD..40T;15BF..BU212..RHD..T3..(ARL,GEN);14B,15BF..BU211,221,222..T3..(ARL,GEN)..(CBU,IV3)199811

W(105E41R BATTERY)

main82021-37371i15BFT..BU222;14B..BU211..IV2;15BF..BU212..GEN..IV3;15BFT..BU212..RHD..IV3;15BFT..BU212..30T..IV3199610-199811

main82021-37372i15BF..BU212..GEN..IV3;15BFT..BU212..RHD..IV3;14B..BU211..LHD..40T..CBU;14B,15BFT..BU211,212..LHD..T3..30T;14B,15BFT..BU211,222..40T..GEN..(IV2,IV3)199811

CHILE SPEC;ALGERIA SPEC;CHINA SPEC;KENYA SPEC

main82021-37570i15BF..BU212..TW1199505-199810

main82021-37571i14B,15BF..BU211,212..TW1199810

W(105E41R BATTERY)

main82021-37630i15BFT..BU142..EUR199605-200110

main82021-37640i3RZFE..RZU100..15T199908

main82021-37660i14B..BU211,221..40T..SA199511-200008

main82021-37720i14B..BU211..TW1199610-199810

main82021-37721i14B..BU211..TW1199810

main82021-37751i15BFTE..BU213,223199908

main82021-95439i4Y..YU210199505

28800FCABLE, BATTERY TO BATTERY

main82123-37010i15BFT..BU212..RHD;15BFT,3B..BU100,222..WT..GEN;15BFT,3B..BU100,212..(175T,30T)..GEN;14B,15BF,3B..BU102,111,112,140,141,211..LHD..(DM1,DM6,DM7,T2,T3)199703-199708

28897PLATE, BATTERY CAUTION

main28897-54030i15BFT..BU142,222..EUR199610-200110

82046AWIRE SUB-ASSY, BODY GROUND, NO.1

main82046-95409iYU210199505

82124BWIRE, ENGINE, NO.4

main82124-37040iBU141..LHD199505

ALGERIA SPEC

main82124-37050iBU142..EUR199605-200110

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

8271137050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-37050

8271195015WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95015

8271537046BRACKET,WIRING HARNESS CLAMP

main82715-37046

8271537460BRACKET,WIRING HARNESS CLAMP

main82715-37460

8281795402PROTECTOR, WIRING HARNESS, NO.1

main82817-95402

9011908827

main90119-08827

9011908A46

main90119-08A46

9046110294

main90461-10294

9413000802

main94130-00802

17 parts on this diagram · 2 diagrams in section
