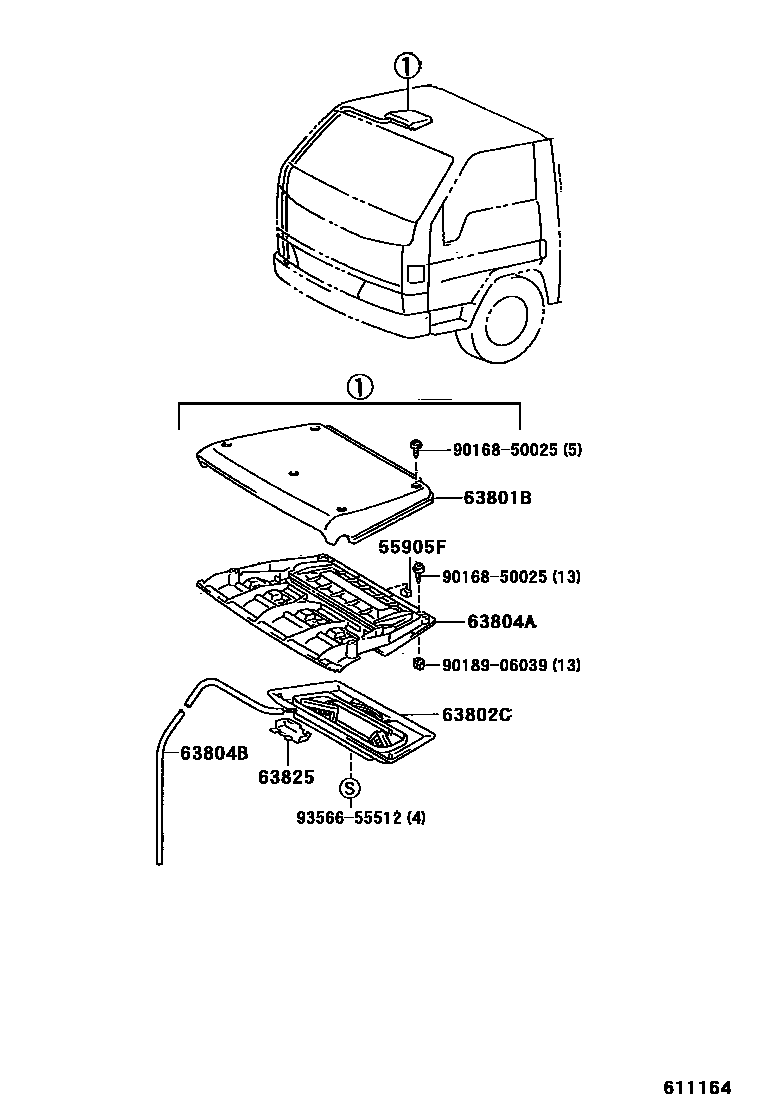

REAR VENTILATOR & ROOF VENTILATOR
55905FKNOB SUB-ASSY, CONTROL
main55905-10110iBU100..CBU;BU222..EUR;BU211,YU210;BU100..GEN..IV3;BU142,221..25T,40T;BU212..LHD..40T..TD;BU101,212..(TW1,TW2)..ARL;BU212,222..RHD..(GEN,SA)..IV3;BU101,111,140,141,RZU100..(DM1,T1,T3,TW2)..(EUR,GEN)199505-200008
63801BCOVER SUB-ASSY, ROOF VENTILATOR
main63801-95401iBU100..CBU;BU222..EUR;BU211,YU210;BU100..GEN..IV3;BU142,221..25T,40T;BU212..LHD..40T..TD;BU101,212..(TW1,TW2)..ARL;BU212,222..RHD..(GEN,SA)..IV3;BU101,111,140,141,RZU100..(DM1,T1,T3,TW2)..(EUR,GEN)199505-200008
63802CCOVER SUB-ASSY, ROOF VENTILATOR, NO.2
LT.GRAY,TRIM11
63804AHOUSING SUB-ASSY, ROOF VENTILATOR
main63804-95400iBU100..CBU;BU222..EUR;BU211,YU210;BU100..GEN..IV3;BU142,221..25T,40T;BU212..LHD..40T..TD;BU101,212..(TW1,TW2)..ARL;BU212,222..RHD..(GEN,SA)..IV3;BU101,111,140,141,RZU100..(DM1,T1,T3,TW2)..(EUR,GEN)199505-200008
63804BHOSE, DRAIN(FOR ROOF VENTILATOR)
main88539-95402iBU100..CBU;BU222..EUR;BU211,YU210;BU100..GEN..IV3;BU142,221..25T,40T;BU212..LHD..40T..TD;BU101,212..(TW1,TW2)..ARL;BU212,222..RHD..(GEN,SA)..IV3;BU101,111,140,141,RZU100..(DM1,T1,T3,TW2)..(EUR,GEN)199505-200008
63825COVER, ROOF VENTILATOR DRAIN HOSE
main63825-95400-B0iBU212..TW1;BU222..EUR;BU211,221,YU210;BU212..LHD..40T..TD;BU212,222..RHD..(GEN,SA)..IV3199505
LT.GRAY,TRIM1#
9016850025
main90168-50025
9018906039
main90189-06039
9356655512
main93566-55512
9 parts on this diagram · 1 diagram in section
