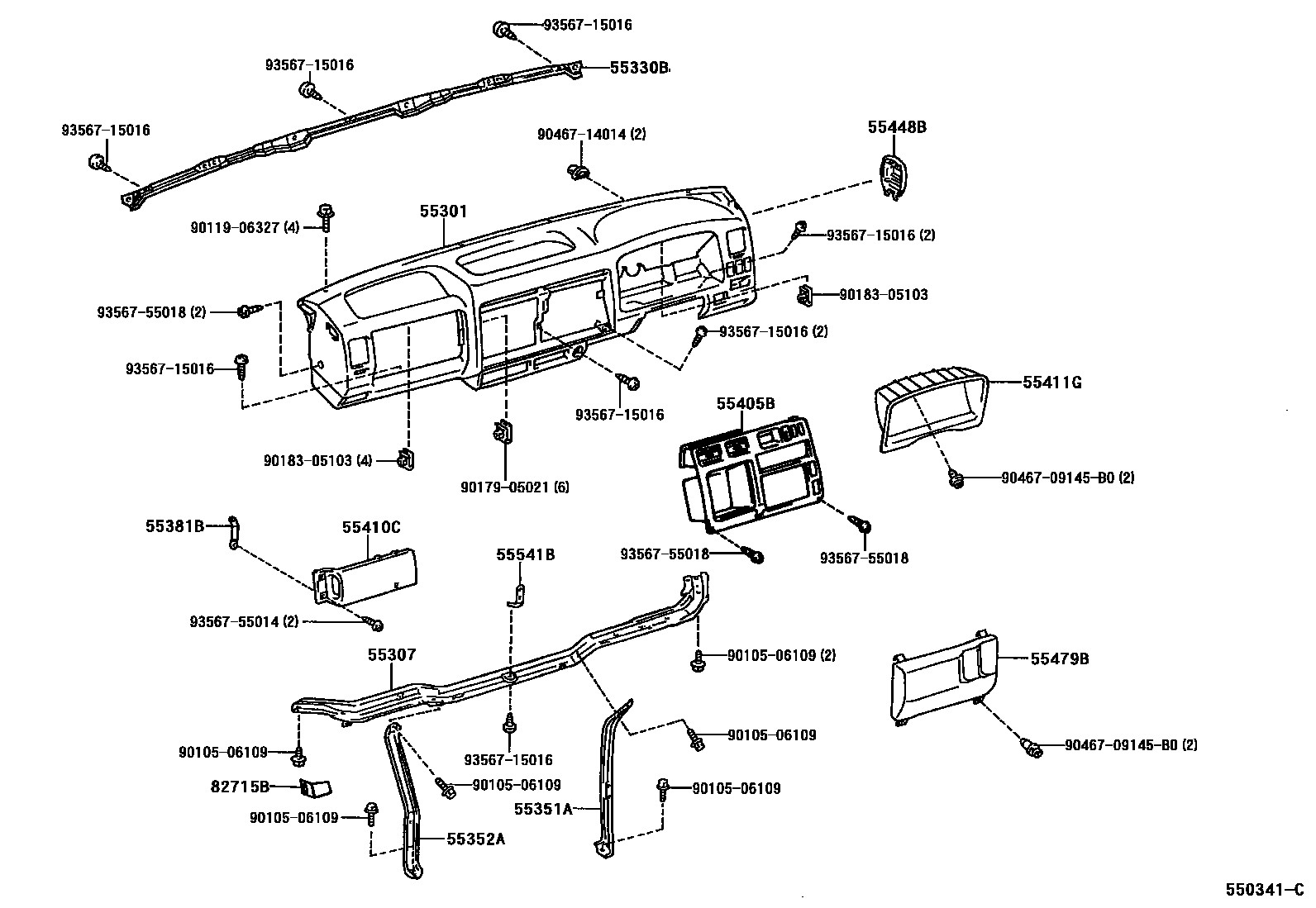

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-37020-B0iBU100,101,110,111,14#,RZU100..RHD199505-199708

BLUISH GRAY,TRIM1#

main55311-37021-B0iBU10#,110,111,14#,RZU100..RHD199708

BLUISH GRAY,TRIM1#

main55311-37030-B0iBU10#,111,112,14#..LHD199505-200108

BLUISH GRAY,TRIM1#

main55311-37040-B0iBU21#,22#,YU210..RHD199505-199708

BLUISH GRAY,TRIM1#

main55311-37041-B0iBU211,212,221,222,YU210..RHD199708

BLUISH GRAY,TRIM1#

main55311-37050-B0iBU211,212,221..LHD200108

BLUISH GRAY,TRIM1#

main55311-37140-B0iRZU100..15T199908-200212

BLUISH GRAY,TRIM1#

main55311-37150-B0iBU213,223199908

BLUISH GRAY,TRIM1#

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-37010iBU10#,110,111,14#,RZU100..RHD199505

main55307-37020iBU101,111,14#,RZU100..LHD..GEN200108

main55307-37030iBU211,212,221,222,YU210..RHD200110

main55307-37040iBU21#,221,223..LHD200108

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-25010iBU10#,11#,14#,RZU100199505-200108

main55330-37010iBU21#,22#,YU210200008-200108

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-37010iBU10#,111,14#,211,212,221,222,YU210..RHD200110

main55351-37020iBU101,111,14#,21#,221,223,RZU100..LHD..GEN200108

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-37010iBU100,101,110,111,14#..RHD199505-199610

main55352-37020iBU21#,22#,YU210199505-200008

main55352-37030iBU10#,110,111,14#,RZU100..RHD..(ARL,GEN)199610

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-37010iRZU100..RHD;BU100,101,110,142..ARL199505

main55381-37020iBU212,222..RHD..DSL..(ARL,GEN)199505

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-25030-C0iBU140..EUR199505-199511

BLACK,TRIM1#

main55405-25060-C0iBU101,111,140,141,211,221..RHD..GEN..(CBU,IV3)199505-200212

W(CLOCK),BLACK,TRIM1#

main55405-37010-C0iBU10#,110,111,14#,211,212,221,222,RZU100..RHD..(ARL,GEN)199505

W(CLOCK & HEATER),BLACK,TRIM1#

main55405-37030-C0iBU140,142,222..EUR199511-200108

BLACK,TRIM1#

main55405-37040-C0iBU212..RHD..IV3;BU10#,110,111,14#,211,221,222,RZU100,YU210..RHD199505

W(HEATER),BLACK,TRIM1#

main55405-37050-C0iBU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,T3,TW1,TW2)..GEN199505

BLACK,TRIM1#

main55405-37060-C0iBU213,223..30T;BU101,111,14#,211,212,221,RZU100..LHD..GEN200011

W(HEATER),BLACK,TRIM1#

main55405-37070-C0iBU102,212..LHD..(15T,40T);BU100,101,111,14#,211,213,221,223,RZU100..LHD..(DM1,T3,T4,TW1,TW2)..GEN199505-200011

W(CLOCK & HEATER),BLACK,TRIM1#

main55405-37080-C0iBU102,112199505-199703

W(TACHOGRAPH),BLACK,TRIM1#

main55405-37100-C0iBU101,111,140,141,211,221..RHD..GEN..(CBU,IV3)199505-200212

BLACK,TRIM1#

main55405-37180-C0iBU213,223..40T200011

W(HEATER),BLACK,TRIM1#

main55405-37190-C0iBU213,223..40T200011

W(CLOCK & HEATER),BLACK,TRIM1#

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-37010-B0iRZU100..RHD;BU100,101,110,142..ARL199505

BLUISH GRAY,TRIM1#

main55410-37030-B0iBU212,222..RHD..DSL..(ARL,GEN)199505

BLUISH GRAY,TRIM1#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-37010-C0iBU10#,11#,14#,21#,22#,YU210199505-199703

BLACK,TRIM1#

main55411-37020-C0iBU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD199708

BLACK,TRIM1#

55448BCOVER, OIL RESERVOIR TANK, RH

main55448-37010-B0iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200108

BLUISH GRAY,TRIM1#

55479BCOVER, INSTRUMENT, LOWER CENTER

main55479-37010-B0iRZU100..RHD;BU100,101,110,142..ARL199505

BLUISH GRAY,TRIM1#

main55479-37020-B0iBU212,222..RHD..DSL..(ARL,GEN)199505

BLUISH GRAY,TRIM1#

55541BRETAINER, RADIO TUNER OPENING, NO.1

main55541-37010iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

82715BBRACKET, WIRING HARNESS CLAMP

main82715-37670×2iBU100,101,110,111,14#,RZU100..RHD199703-199708

main82715-37671iBU10#,110,111,14#,RZU100..RHD..(ARL,GEN)199708

main82715-37710iBU212,222..RHD..DSL..(ARL,GEN)199708

9010506109

main90105-06109

9011906327

main90119-06327

9017905021

main90179-05021

9018305103

main90183-05103

9046709145B0

main90467-09145B0

9046714014

main90467-14014

9356715016

main93567-15016

9356755014

main93567-55014

9356755018

main93567-55018

22 parts on this diagram · 6 diagrams in section
