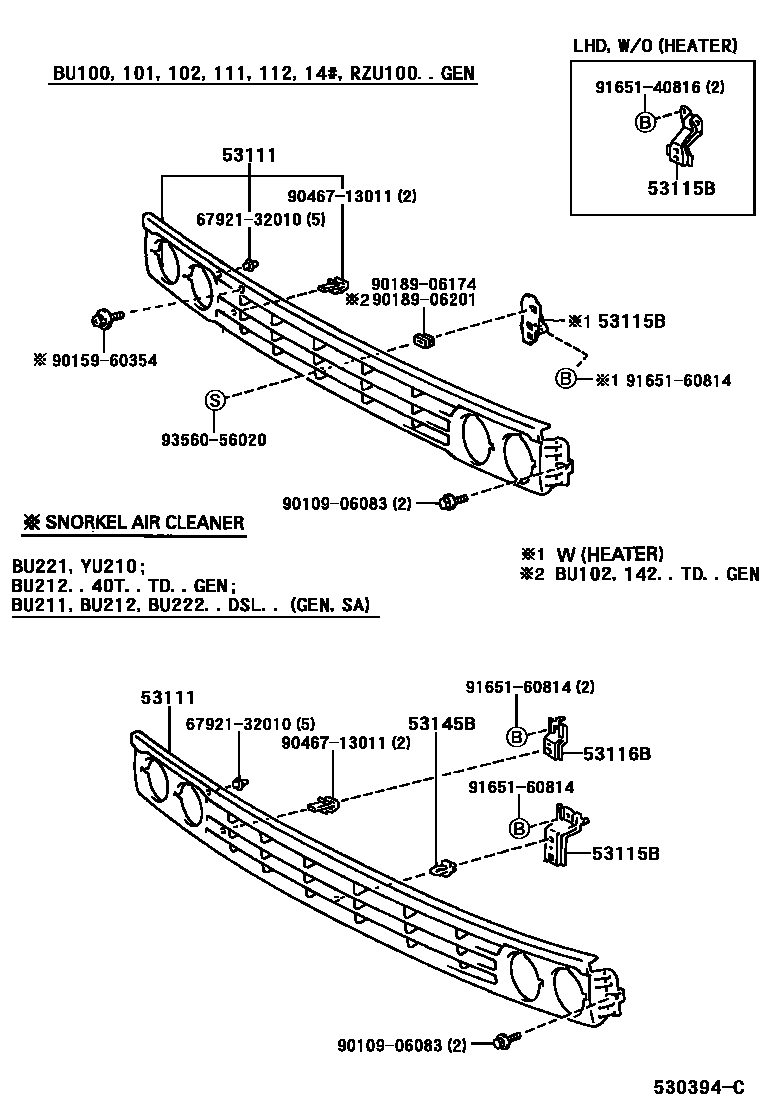

RADIATOR GRILLE

0001 1 0002 1 0003 1

53111GRILLE, RADIATOR

main53101-37020-A0iBU101,142..ARL,EUR;BU102,142,RZU100..RHD..GEN; RZU100..15T200003-200009

GRAY,058 ,766 ,8P0; GRAY,058 ,8P0

main53101-37020-A1iBU101..ST..CBU;BU101,141..RHD..(20T,30T)..GEN..IV3199708-199905

THAILAND SPEC,LT. GRAY,048 ,8E5

main53101-37070-A0iBU142..25T..GEN;BU101,111,141..GEN,SA200002-200009

GRAY,058 ,8P0

main53101-37070-A1iBU142..25T..GEN;BU101,111,141..GEN,SA200009-200212

LT.GRAY,058 ,8P0

main53101-37070-B0iBU100,101,111,14#..GEN,SA199505-199905

LT. GRAY,048 ,8E5

main53101-37090-A0iBU212..RHD..(ARL,GEN);BU213,222,223..ARL,EUR,GEN200009

LT.GRAY,058 ,8P0

main53101-37090-B0iBU212..RHD..TD;BU222..ARL,EUR,GEN;BU212..30T..TD..IV3;BU212..DSL..(ARL,GEN)199905-200009

LT. GRAY,058 ,8P0

main53101-37150-A0iBU101..175T..GEN200009-200212

W(FRONT *STAC),LT.GRAY,058 ,8P0

main53101-37150-B0iBU101..175T..GEN199905-200009

W(FRONT *STAC),LT. GRAY,058 ,8P0

main53111-37150-A1iBU211,YU210;BU212,222..SA;BU212,221..LHD; BU221..RHD200005-200008

LT.GRAY,058 ,8P0; LT.GRAY,8P0

main53111-37150-B0iBU211,YU210;BU212,222..SA;BU212,221..LHD200005-200008

LT.GRAY,058 ,8P0

53115BBRACKET, RADIATOR GRILLE

main53115-37010iBU21#,22#,YU210200008

main53115-37020iBU101..SA;RZU100..RHD;BU101..WT..CBU;BU101..GEN..TB;BU100,102,11#,140..DSL;BU101..LHD..WT..IV3..TS;BU141,142..(20T,25T)..(ARL,EUR,GEN); BU101..T1..CBU;BU101,141..RHD..(20T,30T)..GEN..IV3199708

THAILAND SPEC; W(FRONT HEATER)

main53115-37030iBU101..LHD..ST..TS199905

W(BOOST VENTILATOR)

53116BBRACKET, RADIATOR GRILLE, NO.2

main53116-37010×2iBU212,222..SA;BU211,221,YU210;BU212..LHD..40T..TD199505-200008

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-26010×2iBU111,221..RHD..GEN;BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-199703

HONG KONG SPEC

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9010906083

main90109-06083

9015960354

main90159-60354

9018906174

main90189-06174

9018906201

main90189-06201

9046713011

main90467-13011

9165140816

main91651-40816

9165160814

main91651-60814

9356056020

main93560-56020

13 parts on this diagram · 3 diagrams in section
