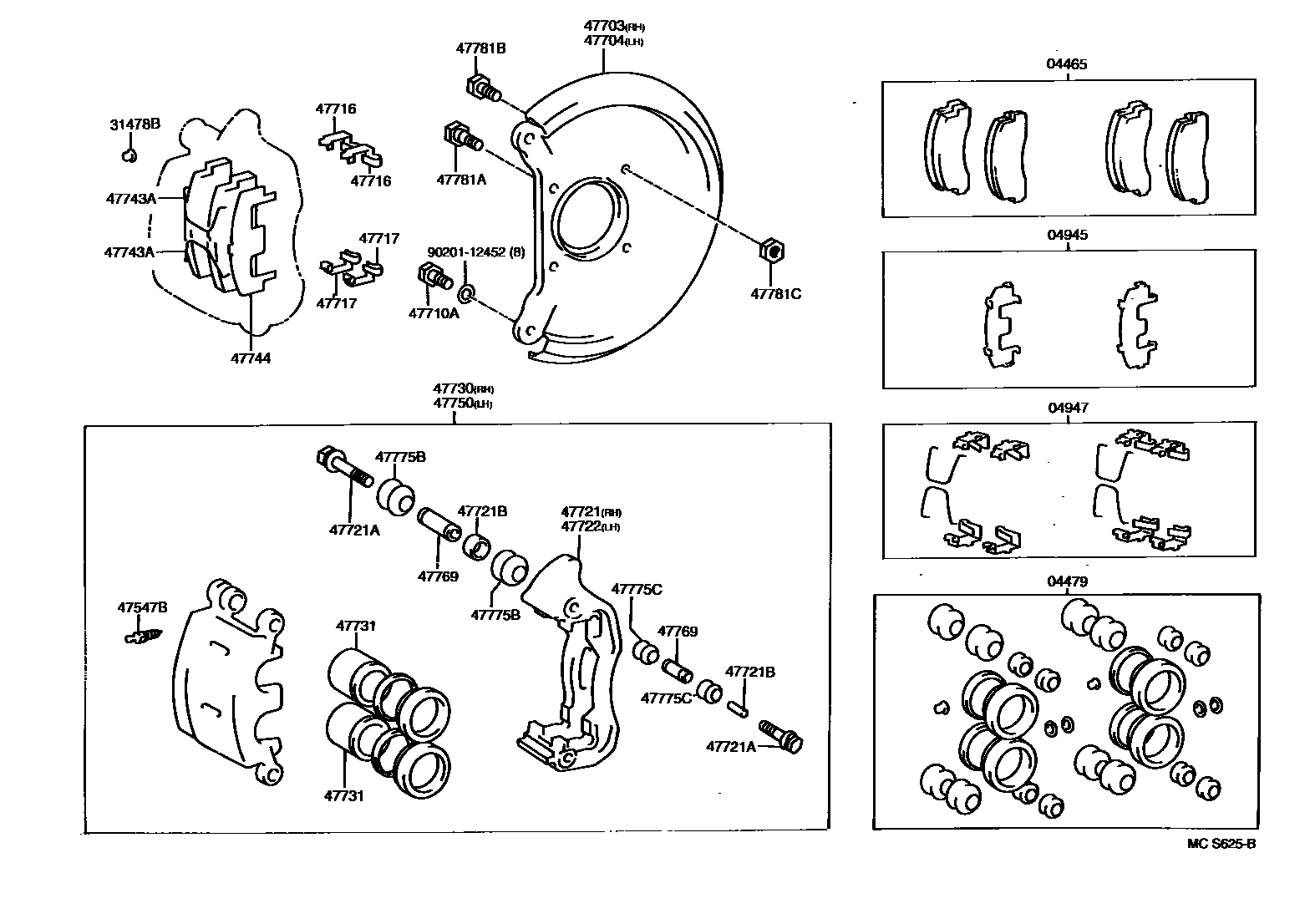

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-25020iRZU100..15T200001

main04465-36010iBU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-25010iRZU100..15T200001

main04479-36010iBU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-25010iRZU100..15T200001

main04945-40040iBU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

04947FITTING KIT, DISC BRAKE, FRONT

main04947-25010iRZU100..15T200001

main04947-36010iBU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iBU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505-200001

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505-200001

main47547-12010iBU211..LHD..30T..IV3199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-36020iBU211..LHD..30T..IV3199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

main47703-37010iRZU100..15T200001

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-36020iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

main47704-37010iRZU100..15T200001

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12070iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

*12-1.25PX29-25

main90101-12070iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

*12-1.25PX29-25,W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

main90101-12155iRZU100..15T200001

*12-1.25PX29.5-17.5

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-25011iRZU100..15T200001

main47716-36010iBU211..LHD..30T..IV3199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-25011iRZU100..15T200001

main47717-36010iBU211..LHD..30T..IV3199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-25020iRZU100..15T200001

main47721-36021iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-08297iBU211..LHD..30T..IV3199505

*8-1.25PX49-30

main90119-08297iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

*8-1.25PX49-30,W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

main90119-10014iRZU100..15T200001

*10-1.25PX65.5-30,SUB PIN SIDE

main90119-10249iRZU100..15T200001

*10-1.25PX95.5-30,MAIN PIN SIDE

main90119-12030iBU211..LHD..30T..IV3199505

*12-1.25PX81-30

main90119-12030iBU211..LHD..30T..IV3199505

*12-1.25PX81-30,W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-14005iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

OUTER

main90387-14005iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC,OUTER

main90387-16004iRZU100..15T200001

SUB PIN SIDE

main90387-16005iRZU100..15T200001

MAIN PIN SIDE

main90387-20003iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

INNER

main90387-20003iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC,INNER

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-25020iRZU100..15T200001

main47722-36021iBU211..LHD..30T..IV3199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-25020iRZU100..15T200001

main47730-36023iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47731PISTON, FRONT DISC BRAKE

main47731-25010iRZU100..15T200001

main47731-36010iBU211..LHD..30T..IV3199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36010iBU211..LHD..30T..IV3199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-25020iRZU100..15T200001

main47744-36011iBU211..LHD..30T..IV3199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-25020iRZU100..15T200001

main47750-36023iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36010iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

INNER

main47769-36010iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC,INNER

main47769-36020iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

OUTER

main47769-36020iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC,OUTER

main47769-40010iRZU100..15T200001

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-40010iRZU100..15T200001

47775BBOOT, BUSH DUST, NO.1

main47775-36010iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47775CBOOT, BUSH DUST, NO.2

main47775-36030iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-12080iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

main90109-12027iRZU100..15T200001

47781BBOLT(FOR DUST COVER SETTING)

main90101-12089iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

*12-1.25PX40-20

main90101-12089iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

*12-1.25PX40-20,W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94115-71200iBU141..25T;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU100,101,110,140..(DM1,T3)..WT;BU142,212..(20T,25T,30T)..(ARL,EUR)199505-199905

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

main94130-01202iBU101..T3..WT;BU211..30T..GEN;BU100,141..T3..(20T,25T);BU142,212..(20T,25T,30T)..(ARL,EUR)199905

9020112452

main90201-12452

28 parts on this diagram · 2 diagrams in section
