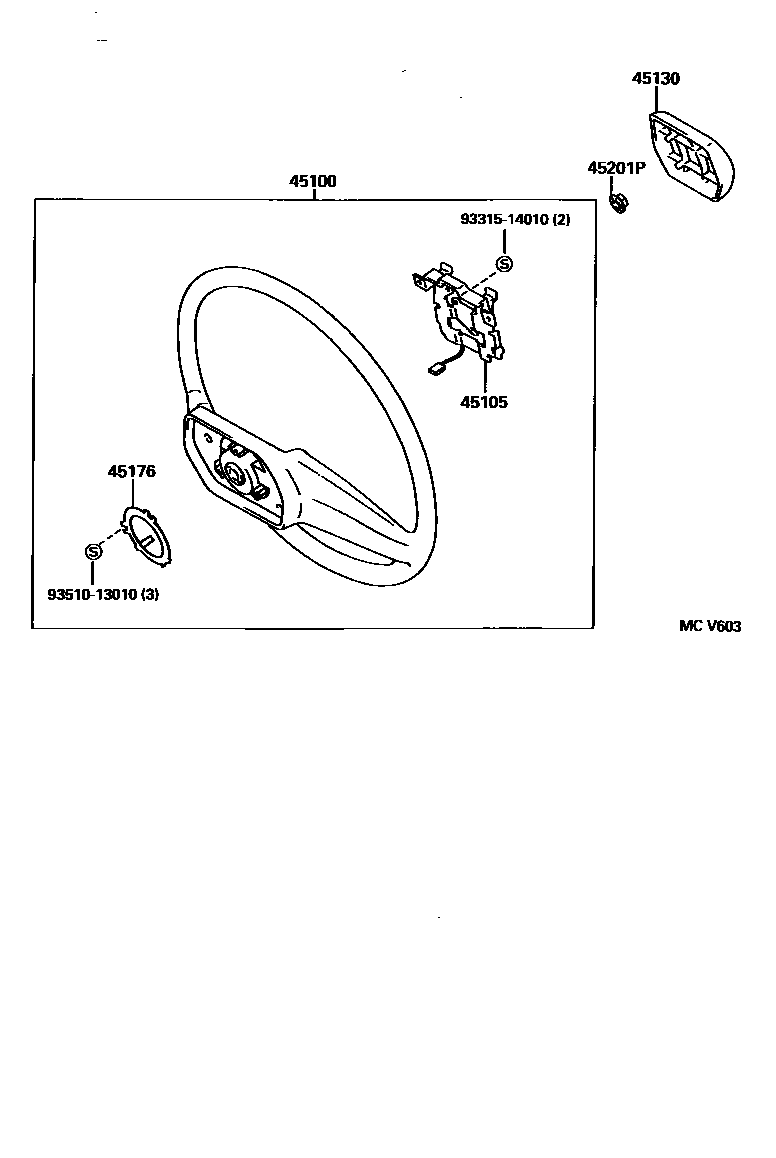

STEERING WHEEL

0001 1POLYPROPYLENE 0003 1URETHANE

45100WHEEL ASSY, STEERING

main45100-36110-B0iBU222..SA;BU212..(GEN,SA)..IV3;BU10#,111,14#,211,221,YU210..GEN,SA200006

2SPOKE,POLYPROPYLENE,GRAY,TRIM1#

main45100-36130-B0iBU141,211,212,222..CBU,IV3;BU10#,111,142,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(15T,175T,20T,30T,40T)..(ARL,GEN)200203

2-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-36010iBU222..SA;BU212..(GEN,SA)..IV3;BU10#,111,14#,211,221,YU210..GEN,SA200008

main45105-36020iBU141,211,212,222..CBU,IV3;BU10#,111,142,213,221,223,RZU100..(DM1,T1,T2,T3,T4,TW2)..(15T,175T,20T,30T,40T)..(ARL,GEN)200203

URETHANE

45130BUTTON ASSY, HORN

main45130-36090-B0iBU212,222..SA;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,YU210..GEN,SA199505-200006

BLUISH GRAY,TRIM1#

main45130-36110-B0iBU141,212,222,RZU100;BU142,211..(20T,25T,30T)..(ARL,EUR,SA);BU10#,11#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,GEN)..(CBU,IV3)199905-200203

URETHANE,BLUISH GRAY,TRIM1#

45176RING, HORN CONTACT

main45176-36010iBU212,222..SA;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,YU210..GEN,SA199505-200006

45201PNUT, STEERING WHEEL SET

main90179-12071iBU10#,111,14#,21#,22#,RZU100,YU210200008

9331514010

main93315-14010

9351013010

main93510-13010

7 parts on this diagram · 2 diagrams in section
