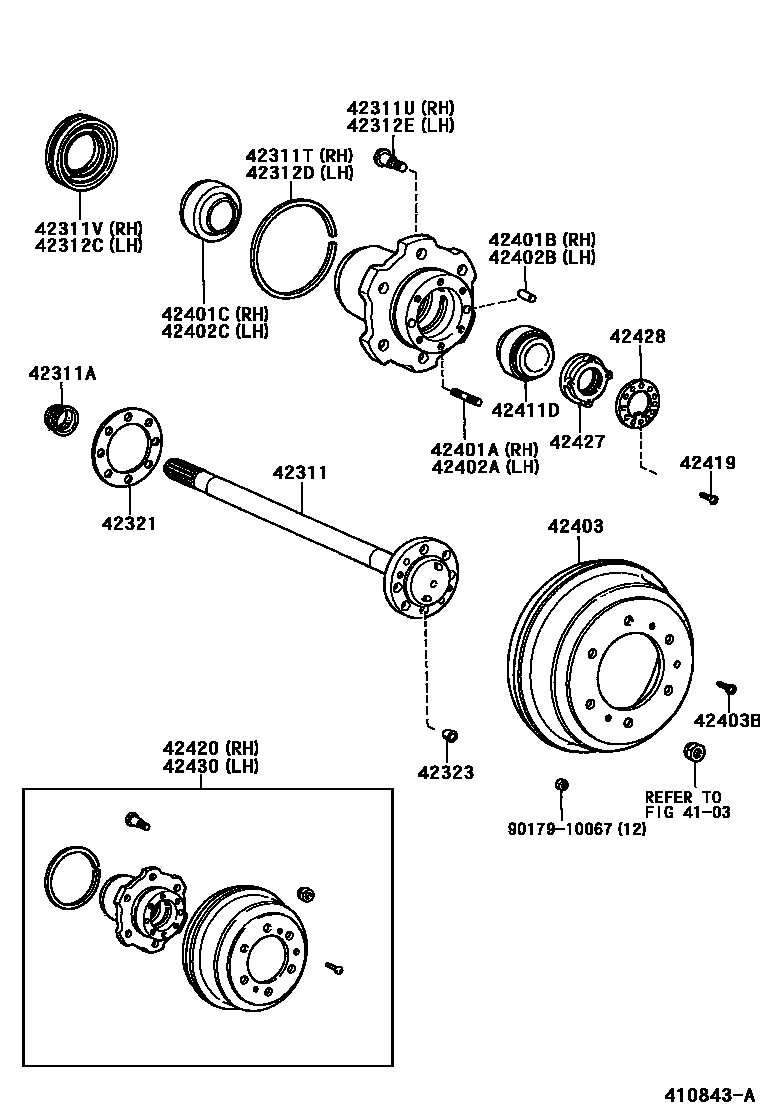

REAR AXLE SHAFT & HUB
4103DISC WHEEL & WHEEL CAP
42311SHAFT, REAR AXLE
main42311-36181×2iBU140..EUR;BU102,142..TD;BU101,102,141..30T; BU141..LHD; BU141..RHD..25T..GEN;BU100,101,140..WT..(20T,25T)..GEN199505
HEAVY DUTY SPEC & W(12INCHES REAR DIFFERENTIAL); HEAVY LOAD SPEC & W(12INCHES REAR DIFFERENTIAL)
42311ASEAL, OIL(FOR REAR AXLE SHAFT)
main90310-40001×2iBU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T;BU101,102,141,211,213,223,YU210..30T; BU141..LHD; BU141..RHD..25T..GEN;BU100,101,140..WT..(20T,25T)..GEN199505
HEAVY DUTY SPEC & W(12INCHES REAR DIFFERENTIAL); HEAVY LOAD SPEC & W(12INCHES REAR DIFFERENTIAL)
42311TRING, SNAP(FOR REAR AXLE SHAFT RH)
42311UBOLT, HUB(FOR REAR AXLE RH)
42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)
42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)
42312DRING, SNAP(FOR REAR AXLE SHAFT LH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42321GASKET, REAR AXLE SHAFT
42323WASHER, CONE (FOR REAR AXLE SHAFT)
main42323-36010×16iBU10#,14#,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(ARL,GEN,SA,TAIW)..(TB,TS); BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T;BU101,102,141,211,213,223,YU210..30T; BU141..LHD; BU141..RHD..25T..GEN;BU100,101,140..WT..(20T,25T)..GEN199505
HEAVY DUTY SPEC & W(12INCHES REAR DIFFERENTIAL); HEAVY LOAD SPEC & W(12INCHES REAR DIFFERENTIAL)
42401ABOLT, STUD (FOR REAR AXLE HUB RH)
main90116-10191×8iBU10#,14#,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(ARL,GEN,SA,TAIW)..(TB,TS); BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T;BU101,102,141,211,213,223,YU210..30T; BU141..LHD; BU141..RHD..25T..GEN;BU100,101,140..WT..(20T,25T)..GEN199505
HEAVY DUTY SPEC & W(12INCHES REAR DIFFERENTIAL); HEAVY LOAD SPEC & W(12INCHES REAR DIFFERENTIAL)
42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)
42401CBEARING (FOR REAR AXLE HUB INNER RH)
42402ABOLT, STUD (FOR REAR AXLE HUB LH)
main90116-10191×6iBU10#,14#,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(ARL,GEN,SA,TAIW)..(TB,TS); BU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T;BU101,102,141,211,213,223,YU210..30T; BU141..LHD; BU141..RHD..25T..GEN;BU100,101,140..WT..(20T,25T)..GEN199505
HEAVY DUTY SPEC & W(12INCHES REAR DIFFERENTIAL); HEAVY LOAD SPEC & W(12INCHES REAR DIFFERENTIAL)
42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)
42402CBEARING (FOR REAR AXLE HUB INNER LH)
42403DRUM SUB-ASSY, REAR BRAKE
42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)
42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
42419SCREW, REAR AXLE BEARING LOCK NUT
42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
HEAVY DUTY SPEC; HEAVY DUTY SPEC & W(12INCHIS DIFFERENTIAL)
42427NUT, REAR AXLE BEARING LOCK
42428PLATE, REAR AXLE LOCK NUT
42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
main42430-37901iBU102,142..TD;BU11#,212,RZU100..20T,25T,30T;BU101,102,141,211,213,223,YU210..30T199605
9017910067
main90179-10067
26 parts on this diagram · 4 diagrams in section
