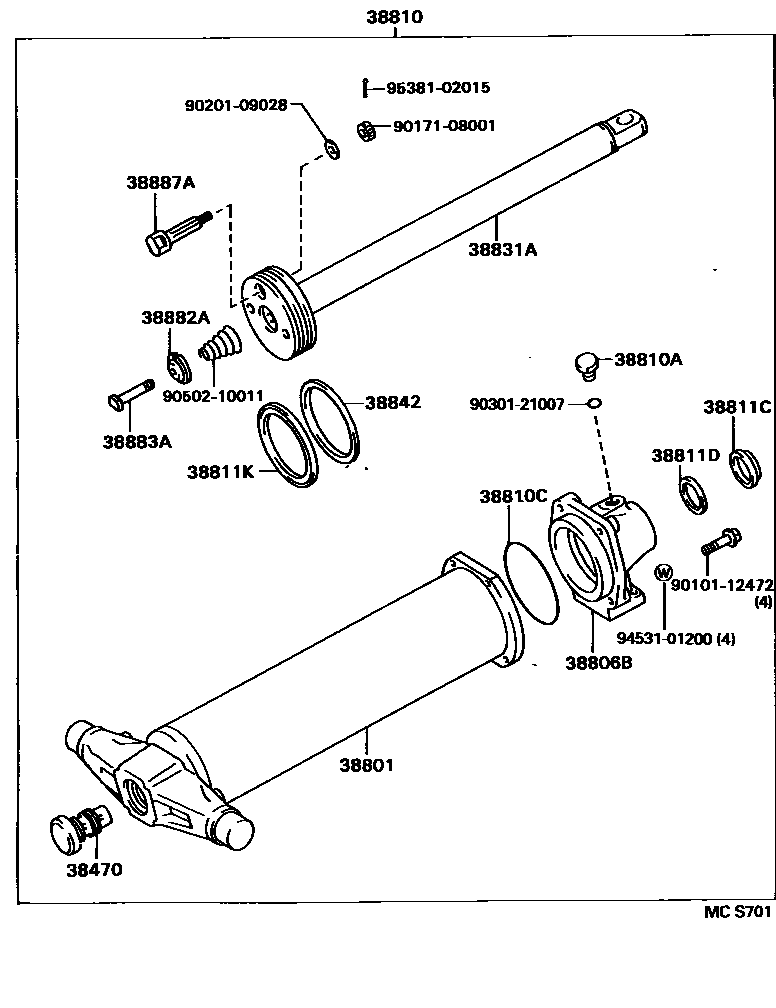

Toyota DYNA200 — HOIST CYLINDER
38470VALVE ASSY, DUMP FLOW CONTROL
38801CYLINDER SUB-ASSY, HOIST
38806BHEAD SUB-ASSY, HOIST CYLINDER
38810APLUG, NO.1 (FOR HOIST CYLINDER)
38810CRING, O (FOR HOIST CYLINDER)
38811CSEAL, DUST, NO.1 (FOR HOIST CYLINDER)
38811DSEAL, DUST, NO.2 (FOR HOIST CYLINDER)
38811KSEAL, DUST, NO.3 (FOR HOIST CYLINDER)
38831APISTON, HOIST CYLINDER
38842RING, HOIST CYLINDER PISTON
38882AVALVE, SLOW RETURN
38883ASPINDLE, SLOW RETURN VALVE
38887AVALVE, HOIST CYLINDER POPPET
9010112472
9017108001
9020109028
9030121007
9050210011
9453101200
9538102015
21 parts on this diagram · 1 diagram in section
HOIST CYLINDER for Toyota DYNA200
This section contains 21 genuine Toyota parts for the HOIST CYLINDER system of the Toyota DYNA200. Key components include: VALVE ASSY, DUMP FLOW CONTROL, CYLINDER SUB-ASSY, HOIST, HEAD SUB-ASSY, HOIST CYLINDER, CYLINDER ASSY, HOIST, PLUG, NO.1 (FOR HOIST CYLINDER).
