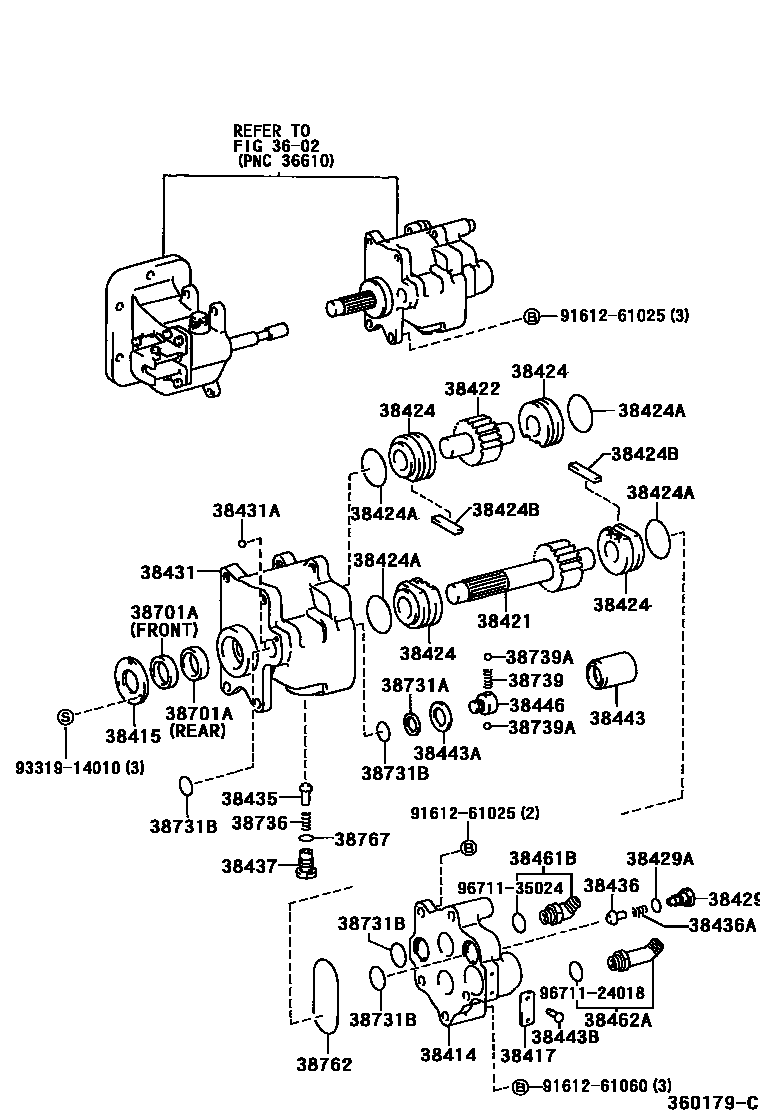

POWER TAKE-OFF OIL PUMP

3602POWER TAKE-OFF CASE & GEAR

→ Go to FIG 36-02

38414COVER, POWER OIL PUMP

main38414-36010iBU110,111..CBU199505

38415COVER, POWER OIL PUMP SEAL

main38415-96300iBU110,111..CBU199505

38417PLATE, POWER OIL PUMP NAME

main38417-36010iBU110,111..CBU199505

38421GEAR, POWER OIL PUMP DRIVE

main38421-36010iBU110,111..CBU199505

38422GEAR, POWER OIL PUMP FOLLOW

main38422-36010iBU110,111..CBU199505

38424BUSH, POWER OIL PUMP INNER

main38424-36010×4iBU110,111..CBU199505

38424ARING, O (FOR POWER OIL PUMP)

main90301-33008×4iBU110,111..CBU199505

38424BKEY, STRAIGHT (FOR POWER OIL PUMP)

main90282-03012×2iBU110,111..CBU199505

38429PLUG, POWER CONTROL CHECK VALVE NO.2

main38429-36010iBU110,111..CBU199505

38429ARING, O (POWER CONTROL CHECK VALVE NO.2 PLUG)

main96711-19010iBU110,111..CBU199505

38431BODY, POWER CONTROL VALVE

main38431-36010iBU110,111..CBU199505

38431ABALL (FOR POWER CONTROL VALVE)

main90360-02001iBU110,111..CBU199505

38435VALVE, POWER CONTROL CHECK, NO.1

main38435-96300iBU110,111..CBU199505

38436VALVE, POWER CONTROL CHECK, NO.2

main38436-36010iBU110,111..CBU199505

38436ASPRING, COMPRESSION (FOR POWER CONTROL CHECK NO.2 VALVE)

main90501-06075iBU110,111..CBU199505

38437PLUG, POWER CONTROL CHECK VALVE

main38437-36010iBU110,111..CBU199505

38443SLEEVE, POWER CONTROL VALVE PLUNGER

main38443-96300iBU110,111..CBU199505

38443AWASHER, PLATE (FOR POWER CONTROL VALVE PLUNGER SLEEVE)

main90201-19012iBU110,111..CBU199505

38443BRIVET, ROUND (FOR POWER CONTROL VALVE PLUNGER SLEEVE)

main90260-02003×2iBU110,111..CBU199505

38446STOPPER, POWER CONTROL DETENTION SPRING

main38446-96300iBU110,111..CBU199505

38461BELBOW(FOR SUCTION HOSE)

main90407-26001iBU110,111..CBU199505

38462AELBOW(FOR DELIVERY HOSE)

main90407-79001iBU110,111..CBU199505

38701ASEAL, OIL (FOR OIL PUMP BODY)

main90311-22004iBU110,111..CBU199505

FR

main90311-22008iBU110,111..CBU199505

RR

38731ARING, O (FOR PLUNGER NO.1)

main90562-18005iBU110,111..CBU199505

38731BRING, O (FOR PLUNGER NO.2)

main90301-17011×2iBU110,111..CBU199505

OD=13.4

main96711-24021×2iBU110,111..CBU199505

OD=25.6

38736SPRING, CHECK VALVE

main90501-04017iBU110,111..CBU199505

38739SPRING, PLUNGER NEUTRAL INDICATING BALL

main90501-08069iBU110,111..CBU199505

38739ABALL, PLUNGER NEUTRAL INDICATING

main90360-05004×2iBU110,111..CBU199505

38762RING, O (FOR OIL PUMP INNER BUSH)

main96711-31080iBU110,111..CBU199505

38767RING, O (FOR CHECK VALVE SPRING)

main90301-10005iBU110,111..CBU199505

9161261025

main91612-61025

9161261060

main91612-61060

9331914010

main93319-14010

9671124018

main96711-24018

9671135024

main96711-35024

36 parts on this diagram · 1 diagram in section
