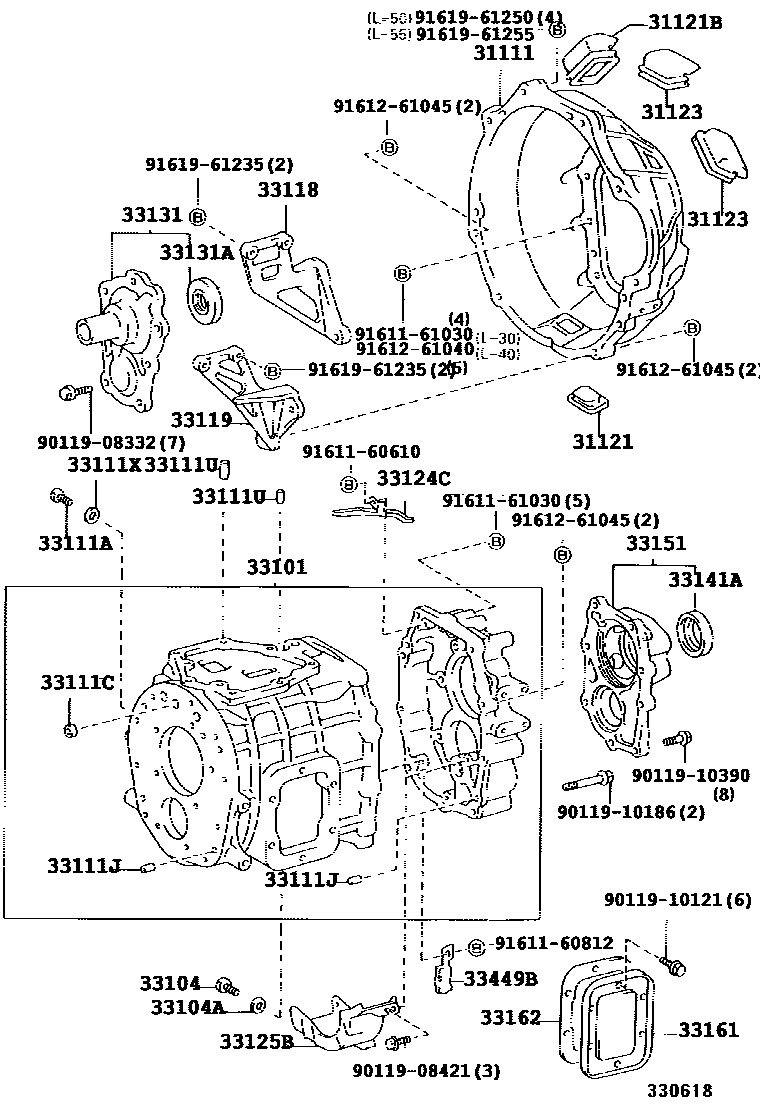

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1M150,M153,M155 0002 1M150,M153 0003 1M153 0004 1M155 0005 1M153 0006 1M150 0007 1H260

31111HOUSING, CLUTCH

main31111-36200iYU210199505

main31111-36210iBU211,221..40T..SA199505-200008

main31111-36281iBU211,221..GEN;BU211..30T..SA;BU212,222..TAIW199505

main31111-36310iBU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL199505

main31111-36331iRZU100199703

main31111-37020iBU102,142..GEN;BU212,222..ARL,GEN,SA199505-200110

main31111-37050iBU213,223199908

31121COVER, CLUTCH HOUSING, NO.1

main31121-36040iBU211,221..GEN;BU211..30T..SA;BU10#,11#,14#,212,213,222,223,RZU100199505

sub31121-36110

main31121-36060iYU210199505

31121BCOVER, CLUTCH HOUSING, NO.3

main31121-28030iBU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL199505

31123COVER, CLUTCH HOUSING, NO.2

main31121-28041iBU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,11#,14#,213,223,RZU100..(DM1,DM6,T1,T2,T3,T4,TW2)..(DSL,EFI,TDEFI)199505

main31121-36070iBU211,221..GEN;BU211..30T..SA;BU212,222..TAIW199505

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-36082iBU10#,11#,14#,21#,22#,RZU100,YU210199505-199808

main33101-36083iBU10#,11#,14#,211,212,221,222,RZU100,YU210199808-200110

sub33101-36084

main33101-36084iBU10#,111,14#,211,212,221,222,RZU100,YU210200110

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200110

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200110

33111CASE, MANUAL TRANSMISSION

main33111-37041iBU213,223199908

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

33111CPLUG(FOR TRANSMISSION CASE)

main96411-11600iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

L=11,OD=11

main90253-13017iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

L=12,OD=13

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

33118PLATE, STIFFENER, RH(MTM)

main33118-36021iBU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL199505

main33118-36031iYU210199505

main33118-37020iBU102..TD;BU102,112,142,212,222..(25T,30T,40T)..(ARL,EUR,GEN,SA)199505

main33118-37030iRZU100199703

main33118-37040iBU213,223199908

33119PLATE, STIFFENER, LH(MTM)

main33119-26021iRZU100199703

main33119-36030iYU210199505

main33119-36042iBU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL199505

main33119-37020iBU102..TD;BU102,112,142,212,213,222,223..(25T,30T,40T)..(ARL,EUR,GEN,SA)199505

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-36030iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

main33124-37010iBU213,223199908

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-36020iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

main33125-60010iBU213,223199908

33131RETAINER, BEARING, FRONT(MTM)

main33018-36050iYU210199505

main33018-36060iBU102,212,222..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,11#,14#,211,221,RZU100..(DM1,DM6,T1,T2,T3,T4,TW1,TW2)..(DSL,EFI)199505

main33018-37010iBU102..TD;BU102,112,142,212,222..(25T,30T,40T)..(ARL,EUR,GEN,SA)199505-200110

main33131-60070iBU213,223199908

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32012iBU102,212,222..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,11#,14#,211,221,RZU100,YU210..(DM1,DM6,T1,T2,T3,T4,TW1,TW2)..(CBR,DSL,EFI)199505

main90311-35023iBU102..TD;BU102,112,142,212,213,222,223..(25T,30T,40T)..(ARL,EUR,GEN,SA)199505-200110

33141ASEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)

main90311-48011iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33017-36031iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

main33151-37011iBU213,223199908

33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF

main33161-36010iBU142,212..LHD..(25T,40T)199505-199708

W(SEPARATE TYPE VACUUM P.T.O)

main33161-36010iBU101..GEN,SA;BU100,102,11#,14#,21#,22#,RZU100,YU210..CBR,DSL,EFI,TDEFI199505

main33161-36040iBU101..ARL;BU102,142,212,222..TD199505-200110

33162GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER

main33162-36020iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200110

33449BMAGNET, TRANSMISSION

main33449-35010iBU213,223199908

main33449-36010iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

9011908332

main90119-08332

9011908421

main90119-08421

9011910121

main90119-10121

9011910186

main90119-10186

9011910390

main90119-10390

9161160610

main91611-60610

9161160812

main91611-60812

9161161030

main91611-61030

9161261040

main91612-61040

9161261045

main91612-61045

9161961235

main91619-61235

9161961250

main91619-61250

9161961255

main91619-61255

37 parts on this diagram · 7 diagrams in section
