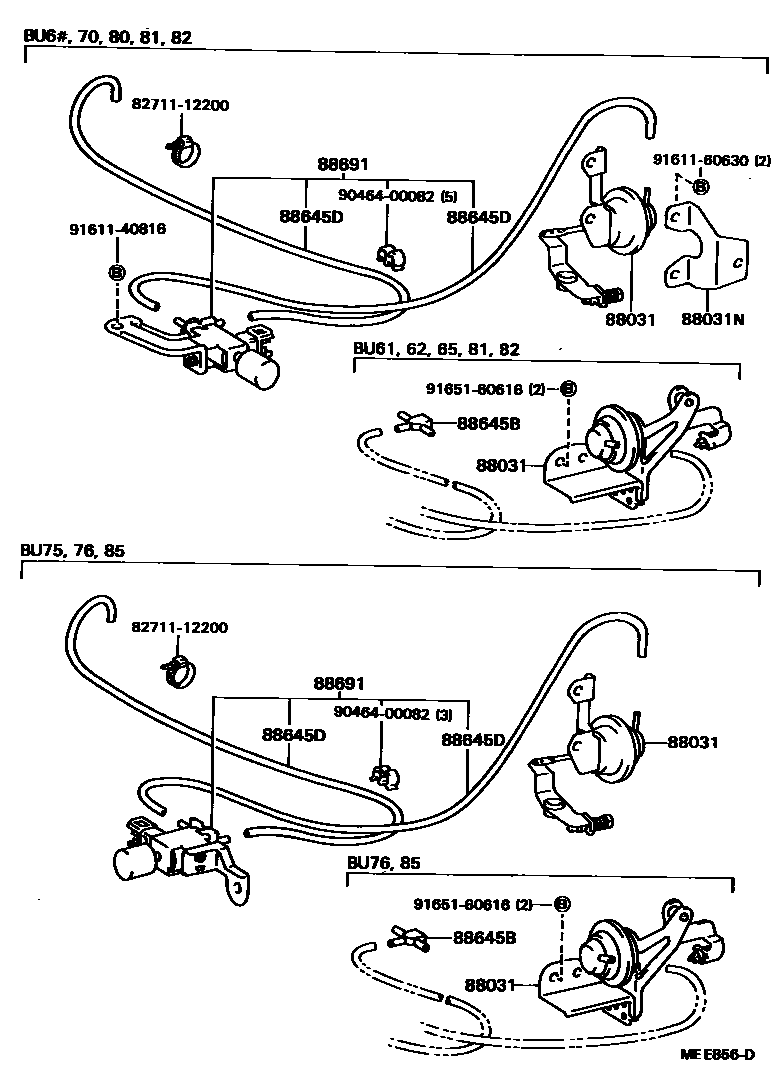

HEATING & AIR CONDITIONING - VACUUM PIPING

88031ACTUATOR SET, IDLE-UP

main88031-36030iBU60,63,70,75,80..GEN,GHD198409-198708

main88031-36041iBU65..CBU;BU61,62,76,81,82,85..ARL,GEN,GHD,SA198409-198708

88031NBRACKET, IDLE-UP ACTUATOR

main88688-36110iBU60,80..T1,T2,T3198409-198708

W/POWER STEERING

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04005iBU61,62,65,81,82..RHD..(ARL,GEN,GHD); BU61,62,81..LHD; BU76,85..GEN198409-198708

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10060iBU60,63,80..RHD; BU60,70,80..LHD; BU61,62,65,81,82..RHD..(ARL,GEN,GHD); BU61,62,81..LHD; BU75..GEN; BU76,85..GEN198409-198708

*H,L=360,MARK=#0; *H,L=480,MARK=#0; *H,L=510,MARK=#0; *H,L=600,MARK=#0

main95411-19995iBU60,63,80..RHD; BU60,70,80..LHD; BU61,62,65,81,82..RHD..(ARL,GEN,GHD); BU61,62,81..LHD; BU75..GEN; BU76,85..GEN198409-198708

*H,L=650,MARK=#*; *H,L=750,MARK=#*; *H,L=800,MARK=#*

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-95408iBU60,63,80..RHD198409-198708

main88690-95410iBU60,70,80..LHD198409-198708

main88690-95411iBU61,62,65,81,82..RHD..(ARL,GEN,GHD)198409-198708

main88690-95413iBU61,62,81..LHD198409-198708

main88690-95414iBU75..GEN198409-198708

main88690-95415iBU76,85..GEN198409-198708

main88690-95426iBU60,80..LHD..WT198411-198708

CHINA SPEC(24V)

main88690-95429iBU85..LHD..GEN198508-198708

CHINA SPEC(24V)

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9046400082

main90464-00082

9161140816

main91611-40816

9161160630

main91611-60630

9165160616

main91651-60616

10 parts on this diagram · 1 diagram in section
