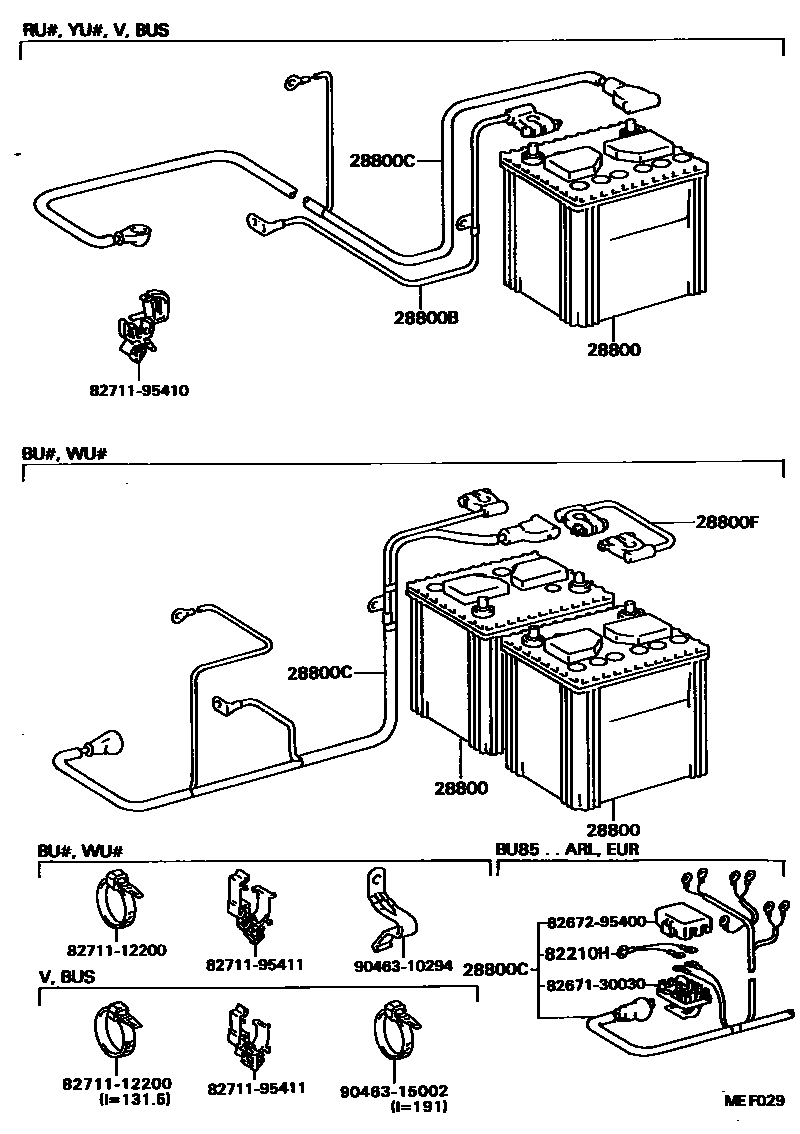

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14010×2iB,13B..BU75,85..EUR; B..BU60..LHD..TW1;B,11B..BU60,61,80,81..LHD..WT198409-198708

55D23R,55D23R

main28800-15010×2i11B..BU65..IV3198508-198708

55D23R,55D23R

main28800-46012i13B..BU85..GEN;B,11B,13B..BU60,61,62,63,7#,80,81,86..ARL,GEN,GHD,SA; B,13B..BU75,85..EUR198409-198708

75D31R,75D31R(N70Z)

main28800-46020i11B..BU65,86..RHD;B,13B..BU75,85..ARL,GEN; B..BU60..TS;B,11B,13B..BU61,62,76,80,81,82198409-198708

105E41R,105E41R(N100Z)

28800BCABLE, BATTERY TO GROUND

main82046-92618iB..BU70198409-198708

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-92614iB..BU70198409-198708

main82021-95413iB..BU60..LHD..TW1;B..BU60,80..LHD..WT198409-198708

CHINA SPEC

main82021-95419iB..BU60..TS;B,11B,13B..BU61,62,80,81,82198409-198708

main82021-95420iB..BU60..TB198409-198708

main82021-95421iB..BU60..TS;B,11B,13B..BU61,62,80,81,82198409-198708

105E41R(N100Z)

main82021-95432iB,11B,13B..BU75,76,85,86..GEN198409-198708

main82021-95433iB,11B,13B..BU75,76,85,86..GEN198409-198708

105E41R(N100Z)

main82021-95434i13B..BU85..ARL198409-198708

main82021-95435iB..BU75..EUR198409-198708

main82021-95436i13B..BU85..EUR198409-198708

main82021-95440i11B..BU61,81..LHD198501-198708

ALGERIA SPEC

main82021-95446iB..BU63198409-198508

main82021-95449iB..BU63198508-198708

main82021-95452i11B..BU65..IV3198508-198708

main82021-95455i11B..BU65..CBU198508-198708

28800FCABLE, BATTERY TO BATTERY

main90982-03006i13B..BU85..EUR; B..BU60..LHD..TW1;B,11B,13B..BU60,61,65,80,81,85..LHD..WT..GEN198409-198708

CHINA OR ALGERIA SPEC

82210HFUSIBLE LINK

main90982-08083iBU65,85..ARL,EUR198409-198708

FL 2L(BLUE) L=100+10

8267130030BLOCK, JUNCTION

main82671-30030

8267295400COVER, JUNKTION BLOCK

main82672-95400

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271195410WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95410

8271195411WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95411

9046310294

main90463-10294

9046315002

main90463-15002

12 parts on this diagram · 1 diagram in section
