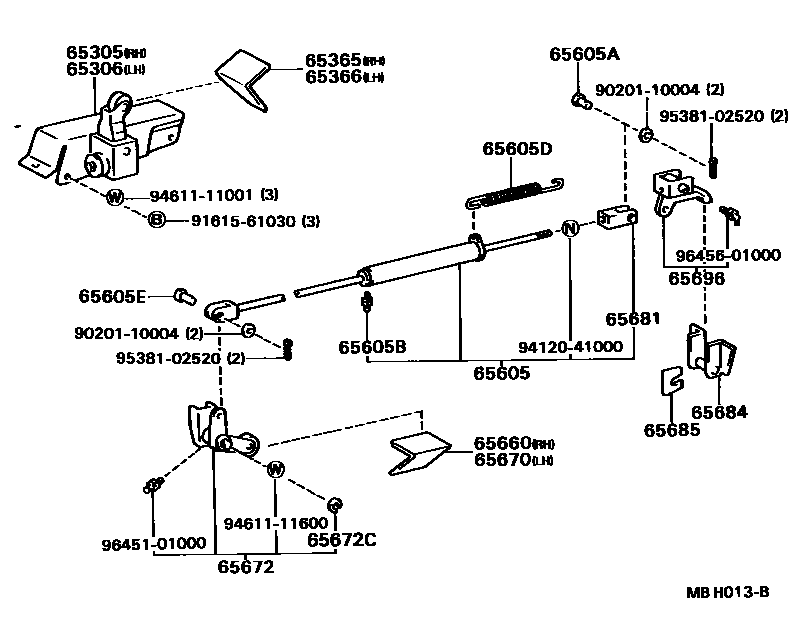

REAR BODY SIDE GATE LOCK & TAIL GATE LOCK

65305LOCK SUB-ASSY, BEZEL, RH

main65305-93104iBU63198409-198508

main65305-93106iBU65..CBU198508-198708

65306LOCK SUB-ASSY, BEZEL, LH

main65306-93104iBU63198409-198508

main65306-93106iBU65..CBU198508-198708

65365GUIDE, VESSEL LOCK, RH

main65365-93100iBU63,65198409-198609

main65365-93101iBU63,65198609-198708

65366GUIDE, VESSEL LOCK,

main65366-93100iBU63,65198409-198609

main65366-93101iBU63,65198609-198708

65605LINK SUB-ASSY, TAIL GATE LOCK

main65760-93100iBU63,65198409-198708

65605APIN, TAIL GATE LOCK LINK

main90240-10003iBU63,65198409-198708

65605BFITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK)

main96451-01000iBU63,65198409-198708

65605DSPRING, TENSION(FOR TAIL GATE LOCK LINK SETTING)

main90506-20032iBU63,65198409-198708

65605EPIN, W/HOLE(FOR TAIL GATE LOCK LINK SETTING)

main90240-10004iBU63,65198409-198708

65660GUIDE, ROLLER, RH

main65661-93102iBU63,65198409-198708

65670GUIDE, ROLLER, LH

main65661-93102iBU63,65198409-198708

65672ARM, TAIL GATE LOCK ROLLER

main65603-93102iBU63,65198409-198708

RH

main65604-93102iBU63,65198409-198708

LH

65672CRING, SNAP(FOR ROLLER ARM SETTING)

main96160-01200iBU63,65198409-198708

65681END, TAIL GATE LOCK LINK

main65681-93103iBU63,65198409-198708

65684HANGER, TAIL GATE

main65708-93100iBU63,65198409-198708

65685STOPPER, TAIL GATE HANGER

main65699-93103iBU63,65198409-198708

65696LATCH, TAIL GATE LOCK

main65780-93101iBU63,65198409-198708

RH

main65790-93101iBU63,65198409-198708

LH

9020110004

main90201-10004

9161561030

main91615-61030

9412041000

main94120-41000

9461111001

main94611-11001

9461111600

main94611-11600

9538102520

main95381-02520

9645101000

main96451-01000

9645601000

main96456-01000

25 parts on this diagram · 1 diagram in section
