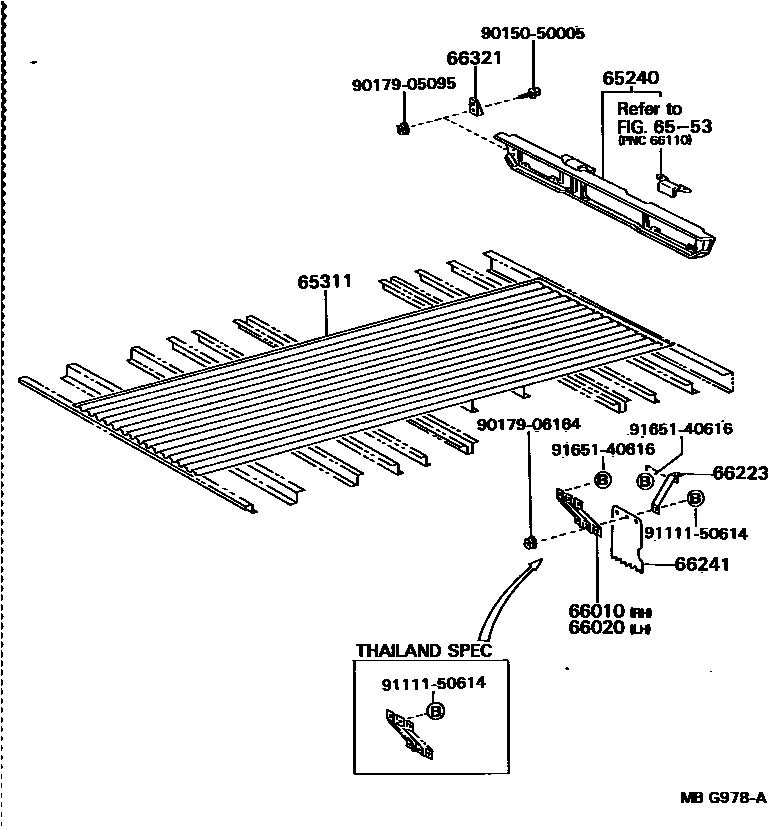

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

65240CROSSMEMBER, REAR BODY FLOOR, TAIL

main65240-92709iBU60..TB198409-198708

sub65240-92715

main65240-92804iBU75,76198409-198708

main65240-92805iBU85,86198409-198608

main65240-92808iBU80,81..T3198409-198708

main65240-92818iBU80..T2198409-198708

main65240-92824iBU85,86198608-198708

main65240-95418iBU60,61..T1,TW1198409-198708

sub65240-37060

main65240-95419iBU60..T3..ST198409-198708

sub65240-37040

main65240-95420iBU60,61..TS..WT198409-198708

sub65240-37020

65311PANEL, FLOOR, CENTER

main65311-95408iBU60..TW1198409-198708

main65311-95409iBU60,61..T3198409-198708

sub65311-37030

main65311-95411iBU60,61..T1198409-198708

6553

66010FENDER ASSY, REAR BODY, REAR RH

main66210-92702iBU60..TB198409-198708

main66210-92802iBU75,76,80,81,85,86..T3,TW1198409-198708

main66210-92803iBU80..T2198409-198708

main66210-95404iBU60,61..TS..WT198409-198708

sub66210-37300

main66221-93100iBU63,65198409-198608

main66225-95012iBU60,61..T1,TW1198409-198708

sub66243-95400

main66225-95403iBU60..T3..ST198409-198708

66020FENDER ASSY, REAR BODY, REAR LH

main66220-92702iBU60..TB198409-198708

main66220-92802iBU80..T2198409-198708

main66220-92803iBU75,76,80,81,85,86..T3,TW1198409-198708

main66220-95404iBU60,61..TS..WT198409-198708

sub66220-37260

main66222-93100iBU63,65198409-198608

main66225-95012iBU60,61..T1,TW1198409-198708

sub66243-95400

main66226-95402iBU60..T3..ST198409-198708

66223STAY, REAR FENDER REAR PLATE

main66235-92701×2iBU75,76,80,81,85,86..T3,TW1198409-198708

main66235-92702×2iBU60,80..T2198409-198708

sub66235-92703

main66235-93100×2iBU63,65198409-198608

main66235-95401×2iBU60,61..T1,TW1198409-198708

sub66235-95405

main66235-95402×2iBU60,61..TS..WT198409-198708

sub66235-95404

66241MUDGUARD, REAR

main53884-93101×2iBU63,65198409-198708

main66241-92704iBU60..TB198409-198708

RH

main66241-92802iBU75,76,80,81,85,86..T3,TW1198409-198708

LH

main66241-92809iBU75,76,80,81,85,86..T3,TW1198409-198708

RH

main66241-92811iBU60,80..T2198409-198708

LH

main66241-95401iBU60,61..TS..WT198409-198708

LH

main66241-95405iBU60,61..TS..WT198409-198708

RH

main66241-95408iBU60,61..T1,TW1198409-198708

RH

main66241-95600iBU60..T3..ST198409-198708

LH

66321BUMPER, GATE RUBBER

main66321-95012×2iBU60,61..T3198409-198708

SIDE GATE

main66321-95406×2iBU60,61..T1,TW1198409-198708

sub66321-37010

main66321-95407×2iBU60,61..T3198409-198708

TAIL GATE

9015050005

main90150-50005

9017905095

main90179-05095

9017906164

main90179-06164

9111150614

main91111-50614

9165140616

main91651-40616

13 parts on this diagram · 7 diagrams in section
