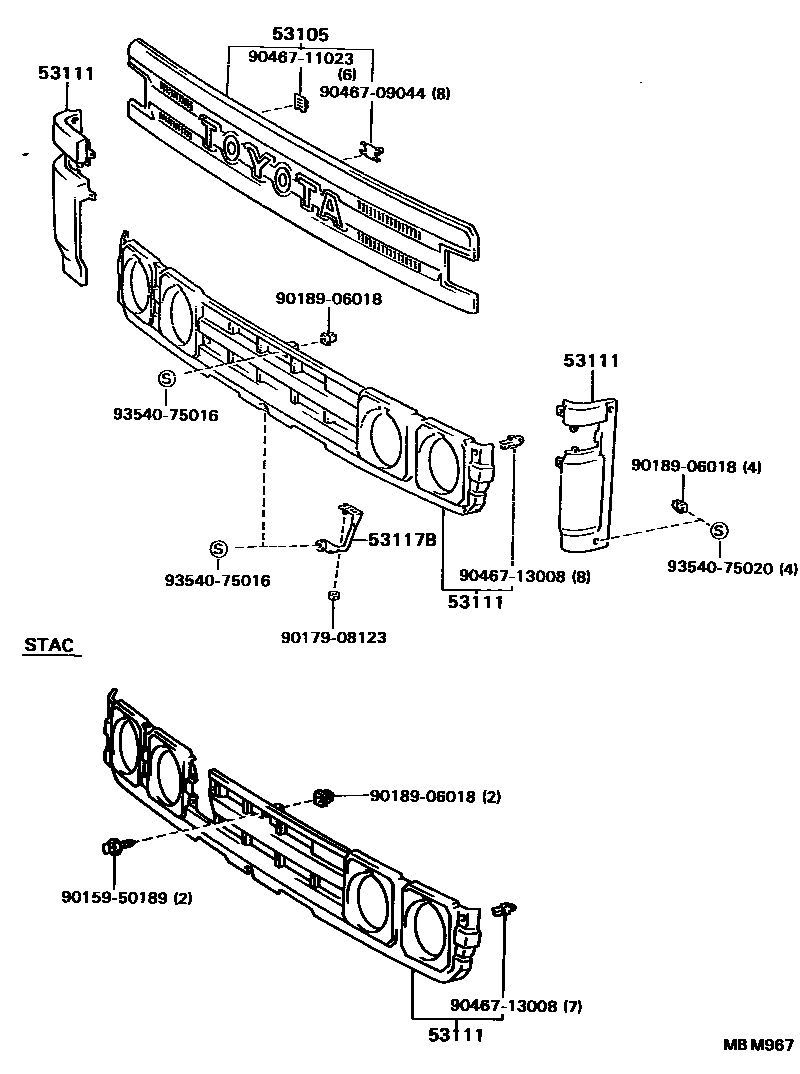

RADIATOR GRILLE

53105STAY, RADIATOR GRILLE, CENTER

main53105-95400iBU6#,70,80,81,82198409-198708

main53105-95401iBU75,76,85,86198409-198708

53111GRILLE, RADIATOR

main53111-95412iBU6#,70,80,81,82198409-198508

CTR

main53111-95413iBU75,76,85198409-198508

CTR

main53111-95416iBU6#,70,80,81,82198508-198708

CTR

main53111-95417iBU75,76,85,86198508-198708

CTR

main53111-95419iBU70..BUS;BU60..LHD..(T1,TW1); BU80,81..LHD..IV3198612-198708

CTR,W/*STAC

main53112-95401iBU6#,7#,8#198409-198708

RH

main53113-95403iBU6#,7#,8#198409-198708

LH

53117BBRACKET, RADIATOR GRILLE, LOWER

main53117-95400iBU6#,80,81,82..RHD198409-198708

main53117-95401iBU60,61,62,65,7#,80,81,85..LHD198409-198708

main53117-95402iBU75,76,85,86..RHD198409-198708

9015950189

main90159-50189

9017908123

main90179-08123

9018906018

main90189-06018

9046709044

main90467-09044

9046711023

main90467-11023

9046713008

main90467-13008

9354075016

main93540-75016

9354075020

main93540-75020

11 parts on this diagram · 1 diagram in section
