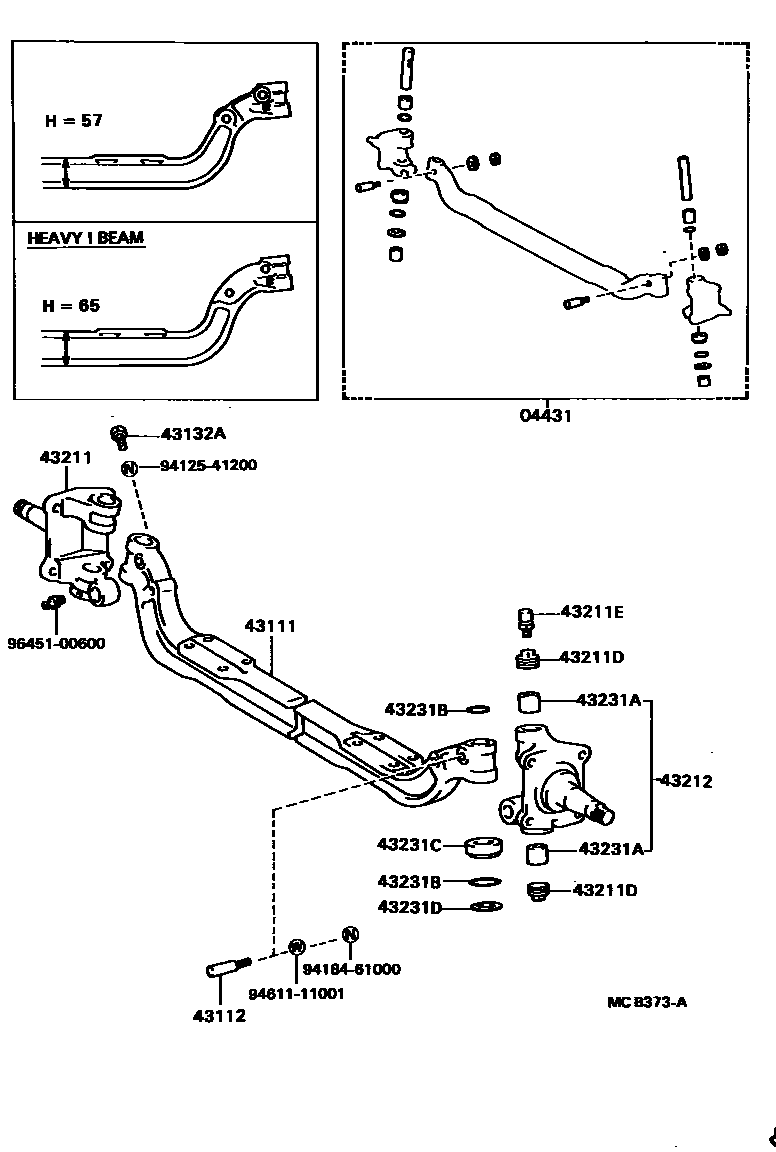

FRONT AXLE ARM & STEERING KNUCKLE

04431PIN KIT, STEERING KNUCKLE KING

main04431-25020iBU6#,7#,8#198409-198708

43111I BEAM, FRONT AXLE

main43111-36070iBU75,76,85,86198409-198708

main43111-36090iBU60,61,70..ST..(CBU,IV3)198409-198708

main43111-36100iBU60..GEN;BU60..WT..ARL;BU61,62,63,65,70,80,81,82198409-198708

HEAVY I BEAM

sub43111-36140

43112PIN, KING PIN LOCK

main43112-36020×2iBU6#,7#,8#198409-198708

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12001×2iBU6#,7#,8#198409-198708

43211KNUCKLE, STEERING, RH

main43201-36080iBU62..ST;BU62..ARL;BU60,61,63,65,70,80,81..ARL,GEN198508-198708

main43201-36090iBU62,85198409-198508

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33001×2iBU6#,7#,8#198409-198708

UPR

sub90345-33004

main90345-33002×2iBU6#,7#,8#198409-198708

LWR

sub90345-33003

43211EDEFLECTOR, DUST (FOR STEERING KNUCKLE)

main90930-03031×2iBU6#,7#,8#198409-198708

43212KNUCKLE, STEERING, LH

main43202-36070iBU62..ST;BU62..ARL;BU60,61,63,65,70,80,81..ARL,GEN198508-198708

main43202-36080iBU62,85198409-198508

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73086×4iBU6#,7#,8#198409-198708

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main96711-19028×4iBU6#,7#,8#198409-198708

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-28001×2iBU6#,7#,8#198409-198708

43231DSHIM (FOR KING PIN)

main90564-28128×2iBU6#,7#,8#198409-198708

T=0.20,T=0.2

main90564-28129×2iBU6#,7#,8#198409-198708

T=0.25,T=0.25

main90564-28130×2iBU6#,7#,8#198409-198708

T=0.30,T=0.3

main90564-28131×2iBU6#,7#,8#198409-198708

T=0.35,T=0.35

main90564-28144×2iBU6#,7#,8#198409-198708

T=0.40,T=0.4

main90564-28145×2iBU6#,7#,8#198409-198708

T=0.45,T=0.45

9412541200

main94125-41200

9418461000

main94184-61000

9461111001

main94611-11001

9645100600

main96451-00600

16 parts on this diagram · 1 diagram in section
