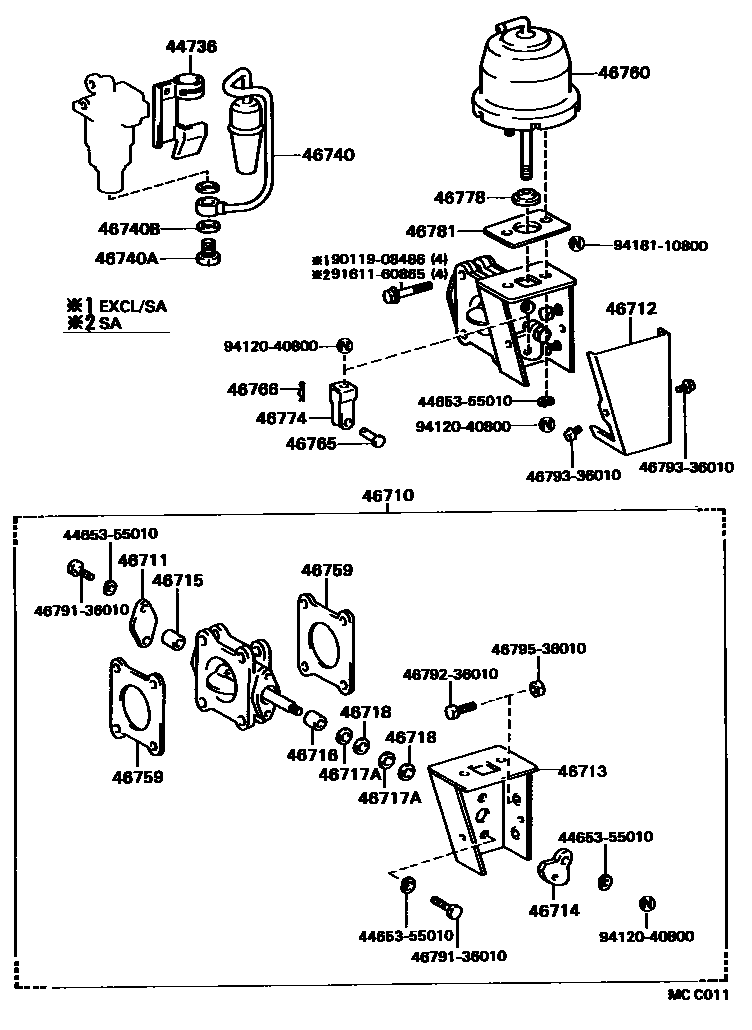

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

44736BRACKET, AIR CLEANER

main44736-36011iBU60..ST..ARL;BU60,61,62,75,76,8#..5F..WT198409-198708

main44736-36050iBU63,65..CBU198409-198708

46710VALVE ASSY, EXHAUST BRAKE

main46710-36090iBU61,62,76,81,82,85,86..5F198409-198708

main46710-36100iBU63,65..CBU;BU60..ST..ARL;BU60,75,80..WT198409-198708

46711COVER, EXHAUST VALVE

main46711-36010iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46712COVER, EXHAUST VALVE LINK

main46712-36060iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46713BRACKET, EXHAUST VALVE

main46713-36060iBU62..ST198602-198708

46714LEVER, EXHAUST VALVE

main46714-36010iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46715BUSH, EXHAUST VALVE, NO.1

main46715-36060iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

L=20.5

46716BUSH, EXHAUST VALVE, NO.2

main46715-36010iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46717ARING, EXHAUST VALVE SEAL, NO.1

main46717-36010×2iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46718RING, EXHAUST VALVE SEAL, NO.2

main46718-36010×2iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46740CLEANER ASSY, EXHAUST RETARDER

main46740-36011iBU60..ST..ARL;BU60,61,62,75,76,8#..5F..WT198409-198708

main46740-36060iBU63,65..CBU198409-198708

46740ABOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)

main90401-12097iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46740BGASKET(FOR EXHAUST BRAKE CLEANER ASSY)

main90430-12247×2iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46759GASKET, EXHAUST RETARDER

main46759-36010×2iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46760CYLINDER ASSY, EXHAUST RETARDER VACUUM

main46760-36090iBU60..ST..ARL;BU6#,75,76,8#..WT198409-198508

main46760-36091iBU60,65..ARL;BU60,61,62,63,75,76,8#..5F..WT198508-198708

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46774CLEVIS, EXHAUST BRAKE ROD

main46744-25010iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46778BEARING, VACUUM CYLINDER

main46778-36060iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-36060iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..5F..WT198409-198708

4465355010HUB SUB-ASSY, BOOSTER

main44653-55010

4679136010BOLT, EXHAUST VALVE COVER

main46791-36010

4679236010BOLT, EXHAUST VALVE STOPPER

main46792-36010

4679336010BOLT, EXHAUST VALVE LINK COVER

main46793-36010

4679536010NUT, EXHAUST VALVE BRACKET

main46795-36010

9011908486

main90119-08486

9161160865

main91611-60865

9412040800

main94120-40800

9418110800

main94181-10800

29 parts on this diagram · 1 diagram in section
