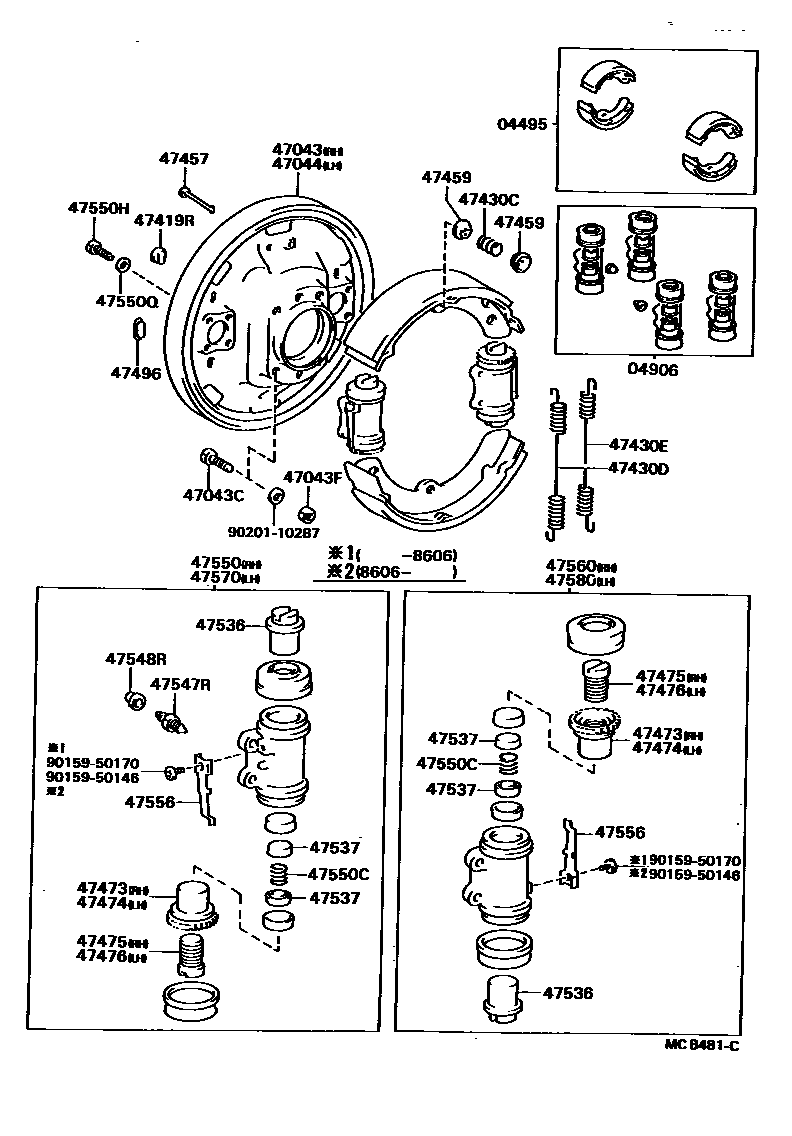

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1..ARL,EUR

04495SHOE KIT, REAR BRAKE

main04494-36080iBU60,61,62,70..ST198409-198708

sub04494-36160

main04494-36090iBU60,80..T2198409-198708

sub04494-36150

main04495-36070iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

sub04495-36110

main04495-36080iBU62,85..ARL,EUR198608-198708

FR DISC

sub04495-36110

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36070iBU75..EUR198409-198708

main04906-36080iBU60,80..T2198409-198708

main04906-36090iBU63,65198409-198708

main04906-36120iBU62..ARL198510-198608

FR DISC

main04906-36140iBU62..ARL198510-198708

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-36090iBU60,61,62,70..ST198409-198708

sub47043-36091

sub47492-28010

main47043-36100iBU60,80..T2198409-198708

sub47043-25110

sub47492-28010

main47043-36110iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

sub47043-36140

sub47492-28010

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10019×12iBU6#,7#,8#198409-198708

*10-1.25PX31-21.5

sub90114-10063

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10178×12iBU6#,7#,8#198409-198708

sub94130-01002

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-36090iBU60,61,62,70..ST198409-198708

sub47044-36091

sub47492-28010

main47044-36100iBU60,80..T2198409-198708

sub47044-25080

sub47492-28010

main47044-36110iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

sub47044-36140

sub47492-28010

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011×4iBU6#,7#,8#198409-198708

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iBU6#,7#,8#198409-198708

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006×2iBU60,61,62,70..ST198409-198708

main90507-29002×4iBU60,80..T2198409-198708

main90507-29006×4iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006×2iBU60,61,62,70..ST198409-198708

main90507-29002×4iBU60,80..T2198409-198708

main90507-29006×4iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iBU60,80..T2198409-198708

main47447-36020×4iBU60,61,62,70..ST198409-198708

main47447-60010×4iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iBU6#,7#,8#198409-198708

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47506-36010×2iBU62..ARL198510-198708

main47551-36130×2iBU75..EUR198409-198708

main47551-36150×2iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47551-36160×2iBU60..TS..WT;BU61,62,63,65,75,76..5F..WT..(ARL,GEN)198409-198708

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47507-36010×2iBU85..ARL,EUR198608-198708

FR DISC

main47552-36130×2iBU75..EUR198409-198708

main47552-36150×2iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47552-36160×2iBU60..TS..WT;BU61,62,63,65,75,76..5F..WT..(ARL,GEN)198409-198708

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36050×2iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47553-36060×2iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT198409-198708

main47553-36070×2iBU60,61,75,76..T3..WT..(ARL,GEN)198409-198508

FR DISC

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36050×2iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47554-36060×2iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT198409-198708

main47554-36070×2iBU60,61,75,76..T3..WT..(ARL,GEN)198409-198508

FR DISC

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010×8iBU6#,7#,8#198409-198708

sub47491-36020

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47536-36020×4iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47536-36030×4iBU60..TS..WT;BU61,62,63,65,75,76..WT..(ARL,GEN)198409-198708

main47536-36040×4iBU60,61,75,76,86..(T3,TW1)..WT198508-198708

FR DISC

47537SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-30011×8iBU62..ARL198510-198608

main47533-40013×8iBU6#,7#..ARL,GEN198409-198708

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iBU6#,7#,8#198409-198708

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iBU6#,7#,8#198409-198708

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-36100iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47550-36110iBU60..TS..WT;BU61,62,63,65,75,76..5F..WT..(ARL,GEN)198409-198708

main47550-36120iBU60,75..LHD..WT..GEN198508-198708

W/LSPV

main47550-36150iBU60,61,75,76,86..(T3,TW1)..WT198508-198708

FR DISC

main47550-36160iBU62..ARL198510-198708

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-08122×4iBU75..EUR198409-198708

main90501-09735×4iBU6#,7#..ARL,GEN198409-198708

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081×8iBU60,80..T2;BU60,61,62,70..ST198409-198708

main90101-10127×8iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002×8iBU60,80..T2;BU60,61,62,70..ST198409-198708

main90201-10287×8iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-36050×4iBU6#,7#,8#..5F198409-198606

sub47555-36H00

main47555-36051×4iBU6#,7#,8#..5F198606-198708

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36100iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47560-36110iBU60..TS..WT;BU61,62,63,65,75,76..5F..WT..(ARL,GEN)198409-198708

main47560-36120iBU75..EUR198409-198708

main47560-36150iBU62,85..ARL,EUR198608-198708

FR DISC

main47560-36160iBU62..ARL198510-198708

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-36100iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47570-36110iBU60..TS..WT;BU61,62,63,65,75,76..5F..WT..(ARL,GEN)198409-198708

main47570-36120iBU75..EUR198409-198708

main47570-36150iBU62..ARL198510-198608

FR DISC

main47570-36160iBU62..ARL198510-198708

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36100iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47580-36110iBU60..TS..WT;BU61,62,63,65,75,76..5F..WT..(ARL,GEN)198409-198708

main47580-36120iBU75..EUR198409-198708

main47580-36150iBU60,61,75,76..T3..WT..(ARL,GEN)198409-198508

FR DISR

main47580-36160iBU62..ARL198510-198708

9015950146

main90159-50146

9015950170

main90159-50170

9020110287

main90201-10287

32 parts on this diagram · 2 diagrams in section
