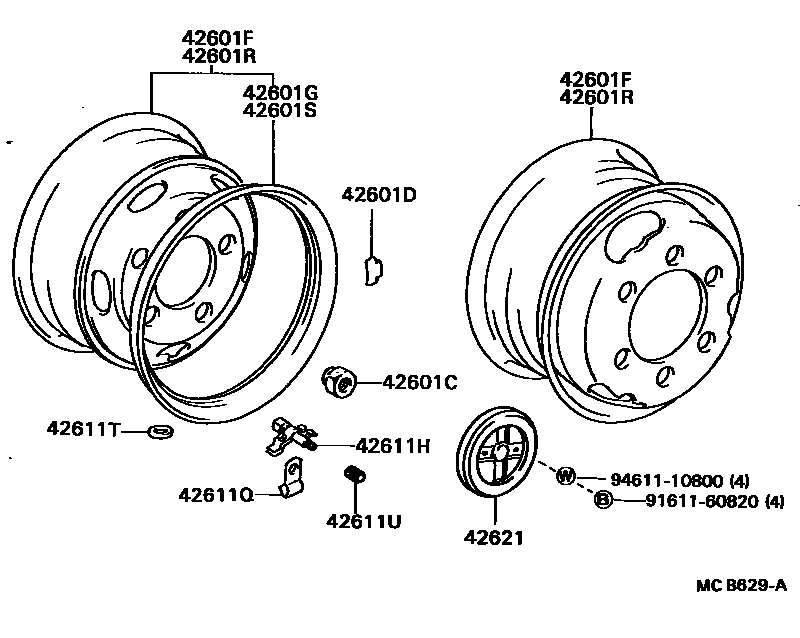

DISC WHEEL & WHEEL CAP

42601CNUT, HUB (FOR AXLE)

main42633-55030×5iBU60,80,85..T3..WT;BU61,62,63,65,75,76,81,82..WT198409-198708

RR,RH

main42634-55030×5iBU60,80,85..T3..WT;BU61,62,63,65,75,76,81,82..WT198409-198708

RR,LH

main90942-01010×6iBU60,80..T2198409-198708

RH

main90942-01011×6iBU60,80..T2198409-198708

LH

main90942-01012×6iBU60,61,62,70..ST198409-198708

RR,RH

main90942-01013×6iBU60,61,62,70..ST198409-198708

RR,LH

main90942-01023×5iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

FR,RH

main90942-01024×5iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

FR,LH

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iBU60,80..T2198409-198708

20G,T=8,20G

main90942-03020iBU60,80..T2198409-198708

30G,T=10,30G

main90942-03022iBU60,80..T2198409-198708

40G,T=9.5,40G

main90942-03025iBU60,80..T2198409-198708

50G,T=9.5,50G

main90942-03027iBU60,80..T2198409-198708

60G,T=9.5,60G

main90942-03029iBU60,80..T2198409-198708

70G,T=9.5,70G

main90942-03031iBU60,80..T2198409-198708

80G,T=9.5,80G

main90942-03041iBU60,80..T2198409-198708

10G,T=7.5,10G

main90942-03045iBU6#,7#,8#198409-198708

20G,20G,W/5.50F WHEEL

sub90942-03079

main90942-03047iBU6#,7#,8#198409-198708

40G,40G,W/5.50F WHEEL

sub90942-03081

main90942-03049iBU6#,7#,8#198409-198708

60G,60G,W/5.50F WHEEL

sub90942-03083

main90942-03050iBU6#,7#,8#198409-198708

30G,30G,W/5.50F WHEEL

sub90942-03080

main90942-03051iBU6#,7#,8#198409-198708

80G,80G,W/5.50F WHEEL

sub90942-03085

main90942-03052iBU6#,7#,8#198409-198708

50G,50G,W/5.50F WHEEL

sub90942-03082

main90942-03053iBU6#,7#,8#198409-198708

100G,100G,W/5.50F WHEEL

sub90942-03086

main90942-03064iBU6#,7#,8#198409-198708

70G,70G,W/5.50F WHEEL

sub90942-03084

main90942-03067iBU60,61,62,70..ST..(CBU,IV3)198409-198708

50G,50G,W/6.00 GS WHEEL

main90942-03068iBU60,61,62,70..ST..(CBU,IV3)198409-198708

100G,100G,W/6.00 GS WHEEL

main90942-03069iBU60,61,62,70..ST..(CBU,IV3)198409-198708

150G,150G,W/6.00 GS WHEEL

main90942-03134iBU60,61,62,70..ST..(CBU,IV3)198409-198708

20G,20G,W/6.00 GS WHEEL

main90942-03135iBU60,61,62,70..ST..(CBU,IV3)198409-198708

30G,30G,W/6.00 GS WHEEL

main90942-03136iBU60,61,62,70..ST..(CBU,IV3)198409-198708

40G,40G,W/6.00 GS WHEEL

main90942-03137iBU60,61,62,70..ST..(CBU,IV3)198409-198708

60G,60G,W/6.00 GS WHEEL

main90942-03138iBU60,61,62,70..ST..(CBU,IV3)198409-198708

70G,70G,W/6.00 GS WHEEL

main90942-03139iBU60,61,62,70..ST..(CBU,IV3)198409-198708

80G,80G,W/6.00 GS WHEEL

main90942-03140iBU60,61,62,70..ST..(CBU,IV3)198409-198708

90G,90G,W/6.00 GS WHEEL

main90942-03141iBU60,61,62,70..ST..(CBU,IV3)198409-198708

110G,110G,W/6.00 GS WHEEL

main90942-03142iBU60,61,62,70..ST..(CBU,IV3)198409-198708

120G,120G,W/6.00 GS WHEEL

main90942-03143iBU60,61,62,70..ST..(CBU,IV3)198409-198708

130G,130G,W/6.00 GS WHEEL

main90942-03144iBU60,61,62,70..ST..(CBU,IV3)198409-198708

140G,140G,W/6.00 GS WHEEL

42601FWHEEL, DISC (FOR FRONT)

main42610-25020×2iBU60,80..T2;BU60,61,62,70..ST198409-198708

5.50F-15,5.50F-15-30,TOPY

main42610-36220×2iBU62..ARL198508-198708

5.5F-16,5.50F-16-108

main42610-36230×2iBU80,81,82..GHD198409-198708

AFJ 16X5.50F,5.50F-16-115

main42610-36310×2iBU60,61,62,70..ST198409-198708

5.50F-15,5.50F-15-30,CHUO

main42610-36350-03×2iBU60,61,70..ST..(CBU,IV3)198409-198708

5.50F-16,5.50F-16-30,GRAY

42601GRING, DISC WHEEL SIDE (FOR FRONT)

main42613-35010×2iBU60,80..T2;BU60,61,62,70..ST198409-198708

5.50F-15,TOPY

main42613-36060×2iBU60,61,62,70..ST198409-198708

5.50F-15,CHUO

main42613-36080×2iBU60..TS;BU62,80..T3..WT;BU61,63,65,7#,81,82,85,86198409-198708

5.50F-16

42601RWHEEL, DISC (FOR REAR)

main42601-36360-03×5iBU60,80..T2198409-198708

14X4.5J,4.5J-14-102,GRAY

main42610-25020×3iBU60,61..(T1,T3)..ST198409-198708

5.50F-15,5.50F-15-30

main42610-36220×5iBU60,80..T3..WT..(ARL,GEN);BU61,63,75,76,81..WT..(ARL,EUR,GEN,SA)198409-198708

5.5F-16,5.50F-16-108

main42610-36230×5iBU80,81,82..GHD198409-198708

AFJ 16X5.50F,5.50F-16-115

main42610-36290-03×3iBU60,61,62,70..ST..(CBU,IV3)198409-198708

6.00GS-15,6.00GS-15-30,TOPY,GRAY

main42610-36300×3iBU60,62,70..ST198409-198708

6.00GS-15,6.00GS-15-30,CHUO

main42610-36310×2iBU60,61,70..ST198409-198708

5.50F-15,5.50F-15-30,CHUO

main42610-36350-03×3iBU60,61,70..ST..(CBU,IV3)198409-198708

5.50F-16,5.50F-16-30,GRAY

42601SRING, DISC WHEEL SIDE (FOR REAR)

main42613-35010×3iBU60,61..(T1,T3)..ST198409-198708

5.50F-15,TOPY

main42613-35020×3iBU60,61,62,70..ST..(CBU,IV3)198409-198708

6.00GS-15,TOPY

main42613-36060×2iBU60,61,70..ST198409-198708

5.50F-15,CHUO

main42613-36070×3iBU60,62,70..ST198409-198708

6.00GS-15,CHUO

main42613-36080×5iBU60..TS;BU62,80..T3..WT;BU61,63,65,7#,81,82,85,86198409-198708

5.50F-16

42611HEXTENSION, VALVE

main90942-05012×2iBU60,80..T2198409-198609

main90942-05022×2iBU60,80..T2198609-198708

42611QCLIP (FOR TUBE)

main90468-10014×3iBU60,61,62,75,76..T3..WT198409-198708

42611TWASHER (FOR TUBE)

main90201-11009×3iBU60,61,62,75,76..T3..WT198409-198708

42611UCAP, TIRE VALVE

main90942-05013×2iBU60,80..T2198409-198708

42621CAP, WHEEL

main42621-36121×2iBU75,85..EUR198409-198708

sub42621-36122

9161160820

main91611-60820

9461110800

main94611-10800

13 parts on this diagram · 1 diagram in section
