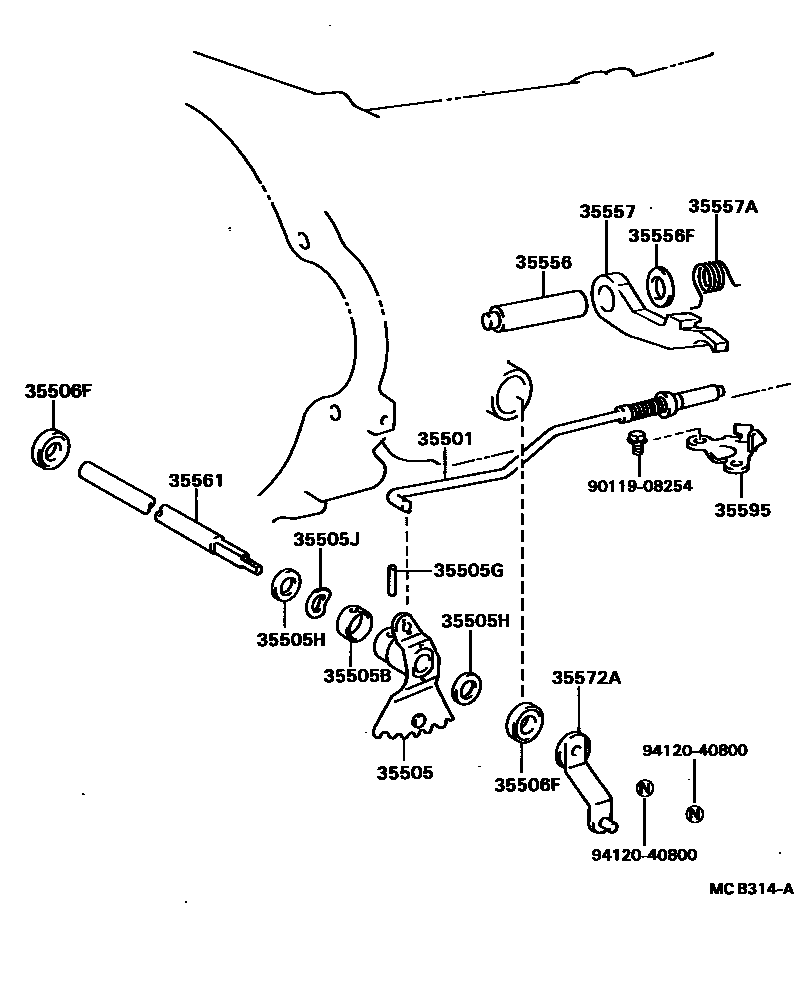

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1

35501ROD SUB-ASSY, PARKING LOCK

main35501-36010iBU62..ARL198510-198708

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-36010iBU62..ARL198510-198708

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20008iBU62..ARL198510-198708

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04012iBU62..ARL198510-198708

35505HWASHER, PLATE (FOR MANUAL VALVE LEVER)

main90201-12042×2iBU62..ARL198510-198708

35505JWASHER, WAVE (FOR MANUAL VALVE LEVER)

main90206-12001iBU62..ARL198510-198708

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iBU62..ARL198510-198708

35556SHAFT, PARKING LOCK PAWL

main35556-36010iBU62..ARL198510-198708

35556FWASHER, PLATE (FOR PARKING LOCK PAWL SHAFT)

main90201-16012iBU62..ARL198510-198708

35557PAWL, PARKING LOCK

main35557-36010iBU62..ARL198510-198708

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-30003iBU62..ARL198510-198708

35561SHAFT, MANUAL VALVE LEVER

main35561-36010iBU62..ARL198510-198708

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-36010iBU62..ARL198510-198708

35595BRACKET, PARKING LOCK PAWL

main35595-36010iBU62..ARL198510-198708

9011908254

main90119-08254

9412040800

main94120-40800

16 parts on this diagram · 2 diagrams in section
