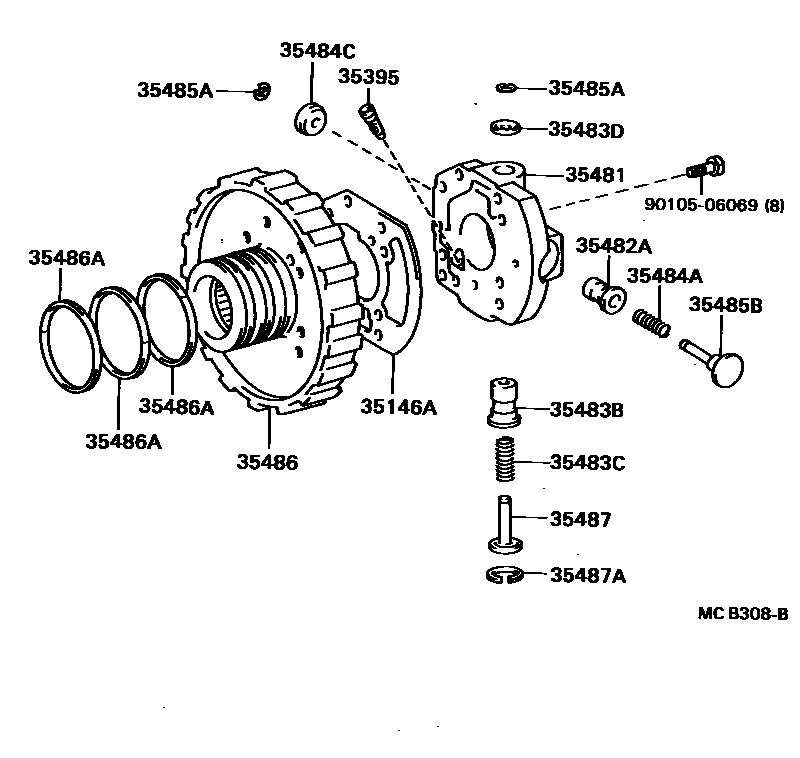

REAR OIL PUMP & GOVERNOR (ATM)

35146AGASKET, GOVERNOR BODY

main35146-36010iBU62..ARL198510-198708

35395STRAINER, GOVERNOR OIL

main35395-36010iBU62..ARL198510-198708

35481BODY, GOVERNOR

main35481-36010iBU62..ARL198510-198704

main35481-36011iBU62..ARL198704-198708

35482AVALVE, GOVERNOR, NO.1

main35482-36010iBU62..ARL198510-198708

35483BVALVE, GOVERNOR, NO.2

main35483-36010iBU62..ARL198510-198708

35483CSPRING, COMPRESSION (FOR GOVERNOR VALVE NO.2)

main90501-12081iBU62..ARL198510-198708

35483DSPACER (FOR GOVERNOR VALVE NO.2)

main90561-06006iBU62..ARL198510-198708

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-07038iBU62..ARL198510-198708

35484CWEIGHT, GOVERNOR

main35484-36010iBU62..ARL198510-198704

main35484-36011iBU62..ARL198704-198708

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05002×2iBU62..ARL198510-198708

35485BSHAFT, GOVERNOR VALVE, NO.1

main35485-36010iBU62..ARL198510-198708

35486SUPPORT, GOVERNOR BODY

main35486-36010iBU62..ARL198510-198708

35486ARING (FOR GOVERNOR BODY SUPPORT)

main35735-36010×3iBU62..ARL198510-198708

35487SHAFT, GOVERNOR VALVE, NO.2

main35487-36010iBU62..ARL198510-198708

35487ARING, SNAP (FOR GOVERNOR VALVE SHAFT NO.2)

main96151-02500iBU62..ARL198510-198708

9010506069

main90105-06069

16 parts on this diagram · 1 diagram in section
