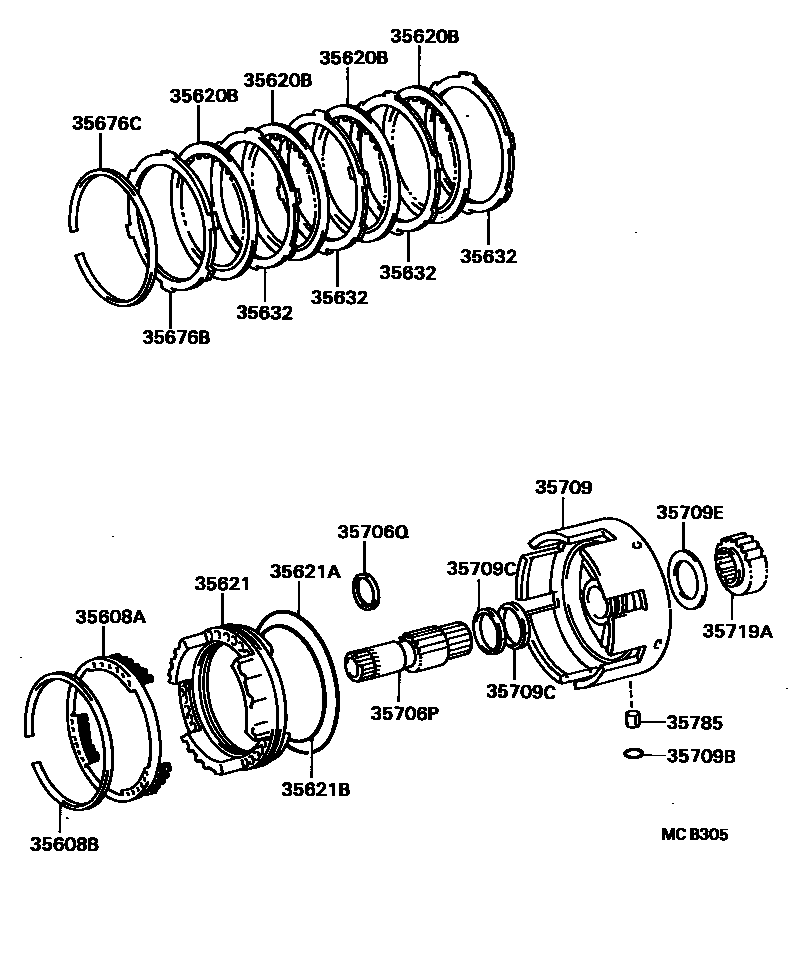

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608ASPRING SUB-ASSY, BRAKE PISTON RETURN
35608BRING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING)
35620BDISC, CLUTCH (FOR BRAKE)
35621PISTON, BRAKE, NO.1
35621ARING, O (FOR BRAKE PISTON OUTER)
35621BRING, O (FOR BRAKE PISTON INNER)
35632PLATE, BRAKE
35676BFLANGE, BRAKE, NO.1
T=5.0,T=5.0
T=5.2,T=5.2
T=5.4,T=5.4
T=5.6,T=5.6
35676CRING, HOLE SNAP (FOR BRAKE FLANGE NO.1)
35706PGEAR SUB-ASSY, FRONT PLANETARY SUN
35706QRING, SHAFT SNAP (FOR FRONT PLANETARY SUN GEAR)
35709SUPPORT SUB-ASSY, CENTER
35709BRING, O (FOR CENTER SUPPORT)
35709CRING, OIL SEAL (FOR CENTER SUPPORT)
35709EWASHER (FOR CENTER SUPPORT)
T=1.8,T=1.8
T=2.1,T=2.1
T=2.4,T=2.4
T=2.7,T=2.7
35719AGEAR, REAR PLANETARY SUN
35785RETAINER, CENTER SUPPORT RING
17 parts on this diagram · 1 diagram in section
