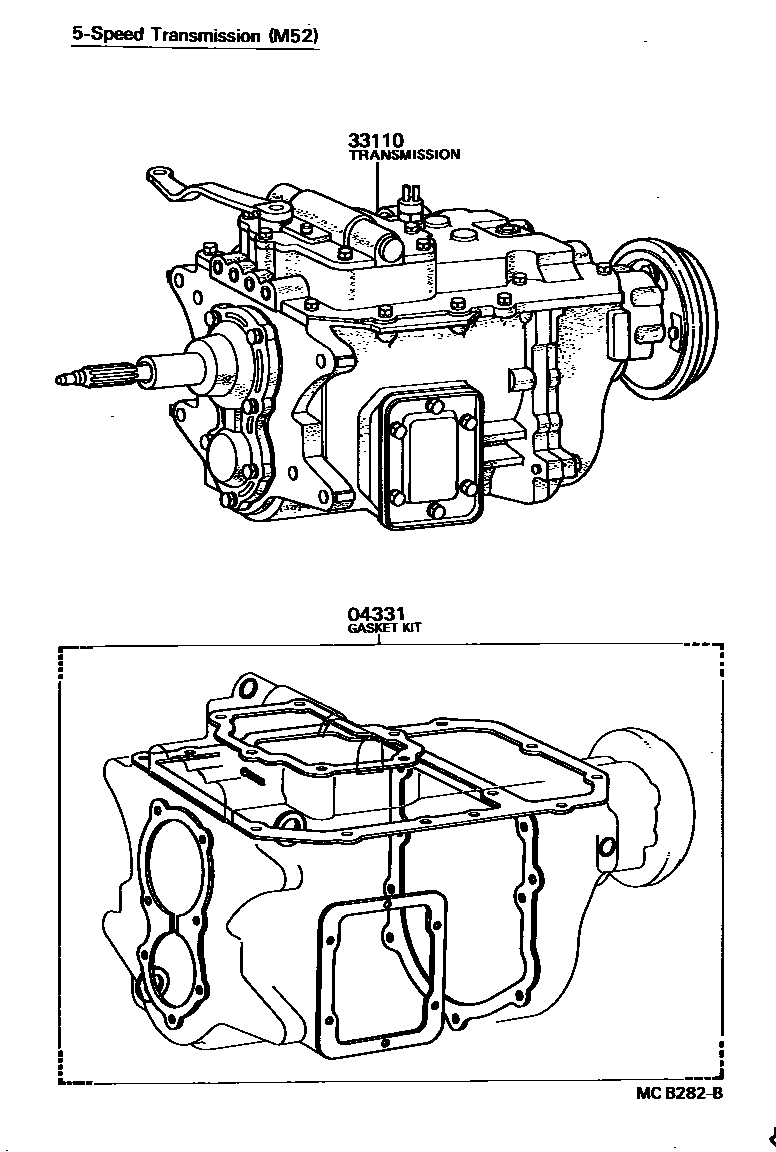

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0003 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36060iBU65..IV3198508-198708

main04331-36070iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33110TRANSMISSION ASSY, MANUAL

main33110-3C320iBU60..ST..ARL198409-198504

main33110-3C340iBU60..WT..ARL198409-198504

main33110-3C360iBU60..ST..ARL198409-198508

W/EXHAUST BRAKE

sub33110-3C361

main33110-3C400iBU60..WT..ARL198409-198504

W/EXHAUST BRAKE

main33110-3C430iBU85..ARL,EUR198409-198508

W/EXHAUST BRAKE

main33110-3C450iBU60,61,70..ST..GEN198409-198508

main33110-3C460iBU80..T2;BU60,62..TB198409-198508

main33110-3C470iBU80..T2;BU60,62..TB198409-198508

W/EXHAUST BRAKE

main33110-3C480iBU60,61,82..T3..WT..(GEN,GHD)198409-198508

SMG R=16:4

main33110-3C490iBU82;BU60,61,80,81..T3..WT..GEN198409-198508

SMG R=17:4

main33110-3C500iBU60..WT..ARL198504-198508

W/EXHAUST BRAKE

main33110-3C510iBU82;BU60,61,80,81..T3..WT..GEN198409-198508

SMG R=17:4,W/EXHAUST BRAKE

main33110-3C520iBU63198409-198508

main33110-3C530iBU63198409-198508

W/EXHAUST BRAKE

main33110-3C540iBU80,81..GHD198409-198508

main33110-3C550iBU80,81..GHD198409-198508

W/EXHAUST BRAKE

main33110-3C560iBU75,76..GEN198409-198508

main33110-3C570iBU75,76..GEN198409-198508

W/EXHAUST BRAKE

main33110-3C581iBU85..GEN198409-198508

main33110-3C591iBU85..GEN..(CBU,IV3)198409-198508

*AXC=Q424

main33110-3C600iBU85..GEN198409-198508

W/EXHAUST BRAKE

main33110-3C610iBU85..GEN..(CBU,IV3)198409-198508

*AXC=Q424 & W/EXHAUST BRAKE

main33110-3C620iBU75..EUR198409-198508

main33110-3C630iBU75..EUR198409-198508

W/EXHAUST BRAKE

main33110-3C641iBU85..EUR198409-198508

main33110-3E310iBU62..ST198602-198708

W/EXHAUST BRAKE

sub33110-3E630

main33110-3E320iBU80,81..T3..(GEN,SA)198508-198708

W/EXHAUST BRAKE

main33110-3E330iBU63,65..CBU;BU80,81..GHD198508-198708

W/EXHAUST BRAKE

sub33110-3E680

main33110-3E340iBU60,61,62,70..ST198608-198708

sub33110-3E620

main33110-3E350iBU80,81..T3..(GEN,SA)198508-198708

main33110-3E360iBU63,65..CBU;BU80,81..GHD198508-198708

*AXC=Q424

sub33110-3E670

main33110-3E370iBU75,76,85,86198508-198708

W/EXHAUST BRAKE

main33110-3E380iBU75,76,86198508-198708

sub33110-3E690

main33110-3E390iBU85..LHD..GEN;BU85..RHD..CBU198508-198708

*AXC=Q424 & W/EXHAUST BRAKE

sub33110-3E720

main33110-3E400iBU85..LHD..GEN;BU85..RHD..CBU198508-198708

*AXC=Q424

sub33110-3E710

main33110-3E530iBU62..ST198602-198608

main33120-3C790iBU65..IV3198508-198708

2 parts on this diagram · 2 diagrams in section
