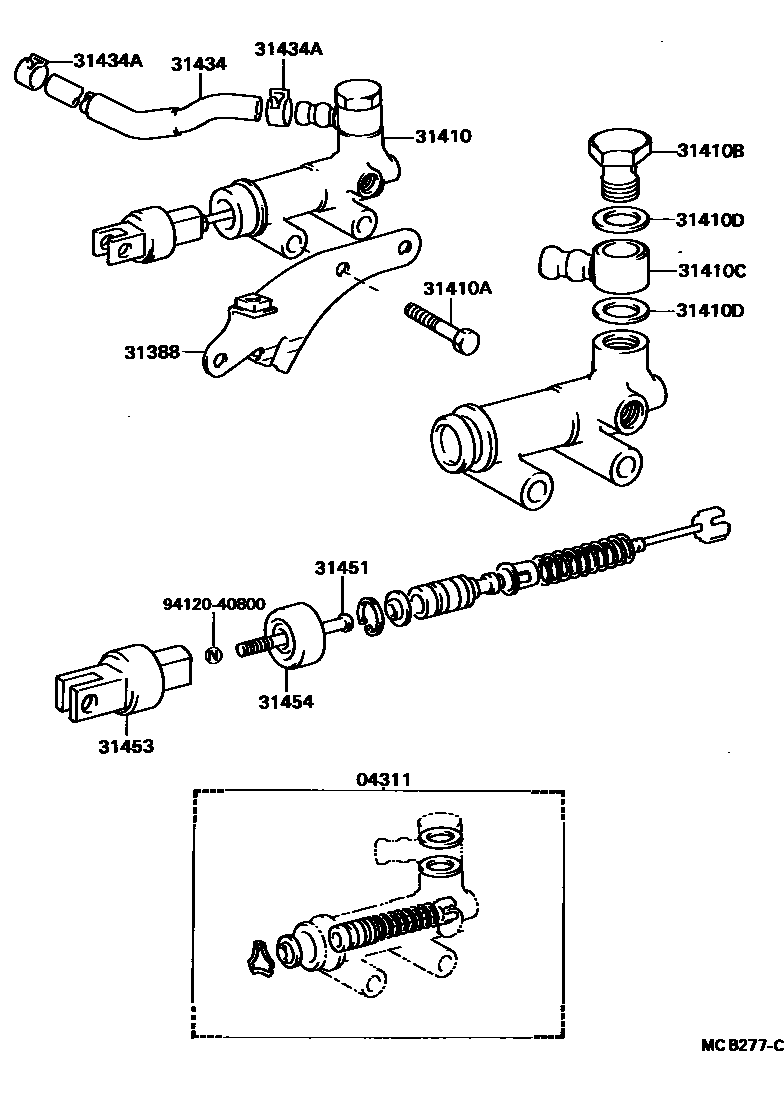

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-26031iBU6#,7#,8#..5F198611-198704

main04311-26033iBU6#,7#,8#..5F198704-198708

sub04311-26035

main04311-36040iBU6#,7#,8#..5F198409-198611

sub04311-26030

main04311-36050iBU75,76,86;BU60,63,65..ARL198409-198704

W/CLUTCH BOOSTER

main04311-36051iBU85..CBU,IV3198704-198708

W/CLUTCH BOOSTER

sub04311-36052

31388SUPPORT, CLUTCH MASTER CYLINDER

main55105-95410iBU75,76,85,86..CBU,IV3198409-198608

W/CLUTCH BOOSTER

main55105-95411iBU60,63,65..ARL198409-198708

W/CLUTCH BOOSTER & *EB

main55165-95401iBU60,61,62,63,7#,80,82,86..5F198409-198708

main55165-95402iBU65..CBU;BU60..ST..ARL;BU60,61,62,63,75,76,8#..WT198409-198708

W/EXHAUST BRAKE

31410CYLINDER ASSY, CLUTCH MASTER

main31401-36010iBU75,76,86;BU60,63,65..ARL198409-198704

W/CLUTCH BOOSTER

main31401-36011iBU85..CBU,IV3198704-198708

W/CLUTCH BOOSTER

sub31401-36012

main31420-36070iBU6#,7#,8#..5F198409-198704

main31420-36071iBU6#,7#,8#..5F198704-198708

sub31420-36072

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865×2iBU6#,7#,8#..5F198409-198708

31410BBOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)

main90401-16078iBU6#,7#,8#..5F198409-198708

31410CUNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90405-10125iBU6#,7#,8#..5F198409-198708

31410DGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90430-16242×2iBU6#,7#,8#..5F198409-198708

31434TUBE, CLUTCH RESERVOIR

main31434-36090iBU60,61,63,65,80,81,82..RHD198409-198708

main31434-36100iBU60,61,62,65,70,80,81..LHD198409-198708

main31434-36110iBU75,76,85,86..RHD198409-198708

main31434-36120iBU75,76,85..LHD198409-198708

main31434-36130iBU60,63,65..ARL198409-198708

W/CLUTCH BOOSTER

main31434-36140iBU75,76,85,86..RHD..(CBU,IV3)198409-198708

W/CLUTCH BOOSTER

main31434-36150iBU75,76,85..LHD198409-198708

W/CLUTCH BOOSTER

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800×2iBU6#,7#,8#..5F198409-198708

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-30060iBU6#,7#,8#..5F198409-198708

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-36020iBU6#,7#,8#..5F198409-198708

sub31404-36021

main31404-36030iBU75,76,86;BU60,63,65..ARL198409-198708

W/CLUTCH BOOSTER

sub31404-36031

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iBU6#,7#,8#..5F198409-198708

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
