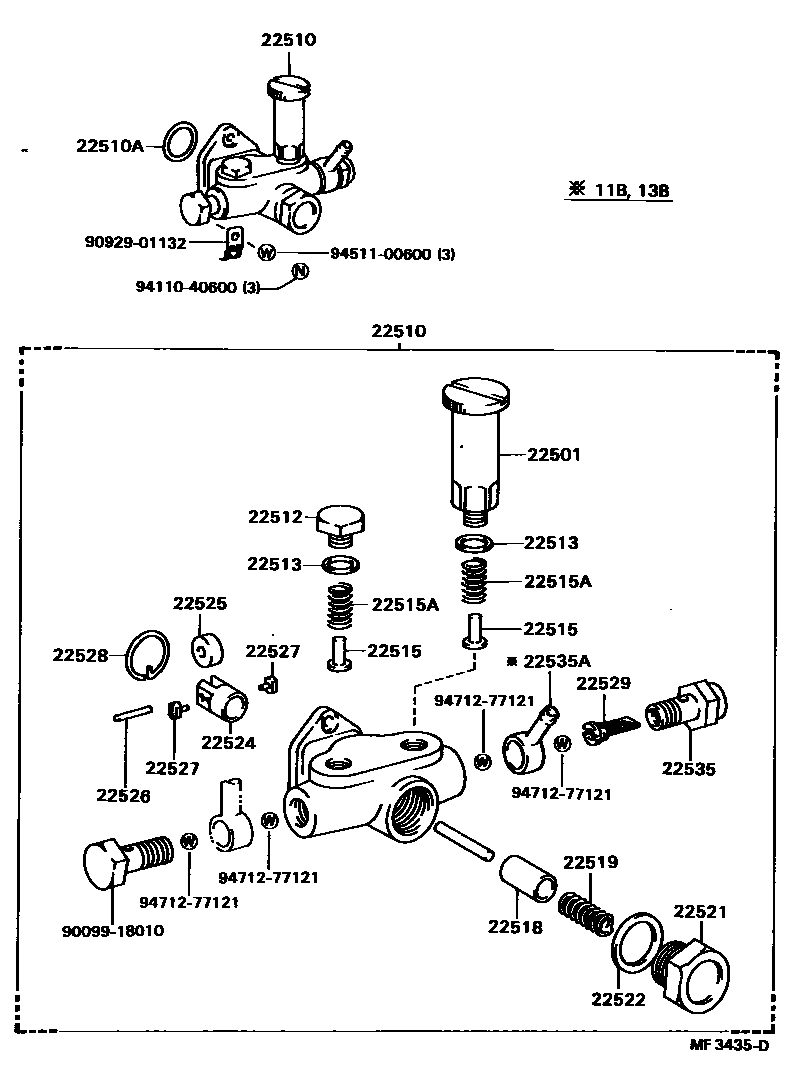

FUEL FEED PUMP

22501PUMP SUB-ASSY, PRIMING

main22501-77021iB,11B,13B..BU6#,7#,8#198409-198708

22510PUMP ASSY, FUEL FEED

main22510-56040iB,13B..BU6#,7#,8#198409-198501

main22510-58230i11B,13B..BU61,62,65,76,81,82,85,86198501-198708

22510ARING, O(FOR FUEL FEED PUMP)

main90099-14015iB,11B,13B..BU6#,7#,8#198409-198708

22512PLUG, FEED PUMP CHECK VALVE CHAMBER

main22512-77020iB,11B,13B..BU6#,7#,8#198409-198708

22513GASKET, CHECK VALVE CHAMBER PLUG

main22513-77020×2iB,11B,13B..BU6#,7#,8#198409-198708

22515VALVE, FEED PUMP CHECK

main22515-77020×2i11B,13B..BU61,62,65,76,81,82,85,86198501-198708

main22515-77021×2iB,13B..BU6#,7#,8#198409-198501

22515ASPRING, FEED PUMP CHECK VALVE

main90501-05141×2iB,11B,13B..BU6#,7#,8#198409-198708

22518PISTON, FEED PUMP

main22518-56010iB..BU60,63,70,75,80198501-198708

RED,RED

main22518-56011iB,13B..BU6#,7#,8#198409-198501

YELLOW,YELLOW

main22518-56012iB,13B..BU6#,7#,8#198409-198501

GREEN,GREEN

main22518-56013iB..BU60,63,70,75,80198501-198708

WHITE,WHITE

main22518-77020i13B..BU62,82,85198409-198501

BLUE,BLUE

22519SPRING, FEED PUMP PISTON

main22519-48010iB,11B,13B..BU6#,7#,8#198409-198708

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77021iB,11B,13B..BU6#,7#,8#198409-198708

22522GASKET, FEED PUMP PISTON PLUG

main22522-77020iB,11B,13B..BU6#,7#,8#198409-198708

22524TAPPET, FEED PUMP

main22524-77021iB,11B,13B..BU6#,7#,8#198409-198708

22525ROLLER, FEED PUMP TAPPET

main22525-77020iB,11B,13B..BU6#,7#,8#198409-198708

22526PIN, FEED PUMP TAPPET ROLLER

main22526-77020iB,11B,13B..BU6#,7#,8#198409-198708

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-56010×2iB,11B,13B..BU6#,7#,8#198409-198708

22528RING, FEED PUMP TAPPET SNAP

main22528-77020iB,11B,13B..BU6#,7#,8#198409-198708

22529FILTER, FUEL PUMP

main22529-67010iB,11B,13B..BU6#,7#,8#198409-198708

22535SCREW, FUEL PIPE FOLLOW

main22535-46010iB,11B,13B..BU6#,7#,8#198409-198708

22535ANIPPLE(FOR FUEL FEED PUMP)

main23323-56020i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

9009918010

main90099-18010

9092901132

main90929-01132

9411040600

main94110-40600

9451100600

main94511-00600

9471277121

main94712-77121

24 parts on this diagram · 1 diagram in section
