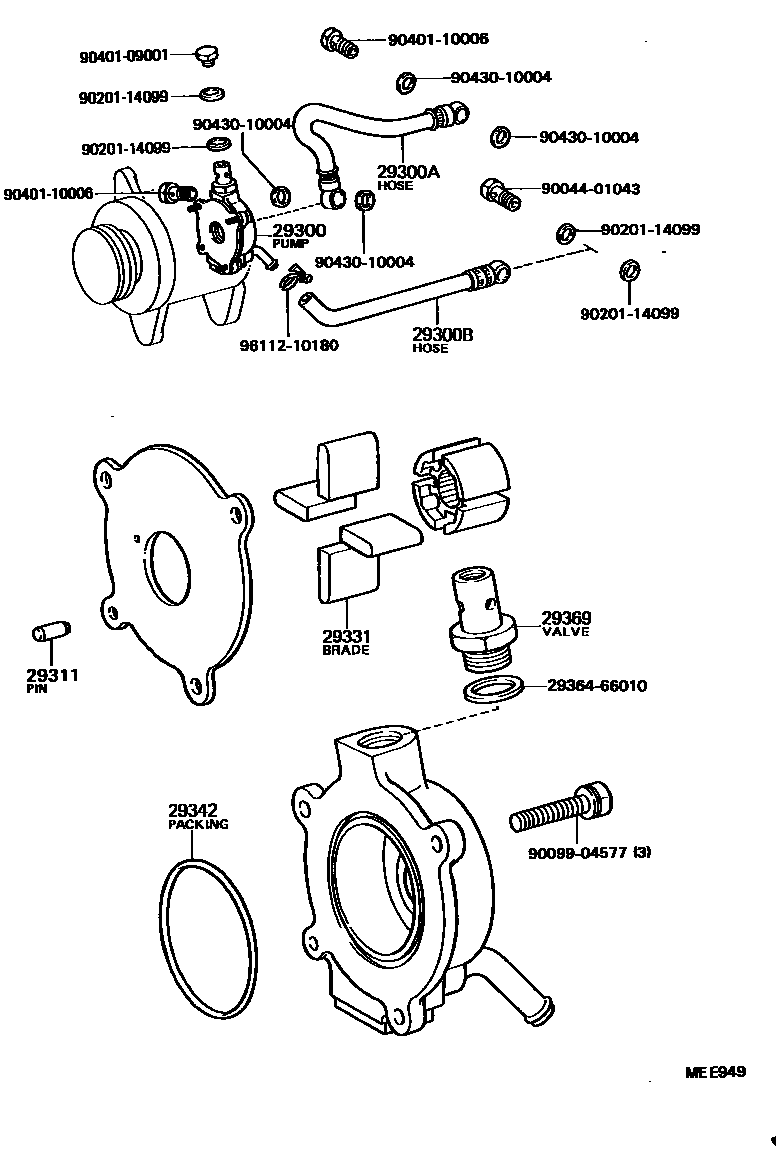

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-56090iB,11B,13B..BU6#,7#,8#198409-198708

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02072iB,11B,13B..BU6#,7#,8#198409-198708

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02068iB,13B..BU6#,7#,8#198409-198501

main90923-02068i11B..BU61..GEN..(CBU,IV3);B,11B,13B..BU60,63,75,76,80,81,85,86..GEN198501-198708

OIL FILTER;ELEMENT TYPE

main90923-02073iB,11B,13B..BU6#,7#,8#198501-198708

OIL FILTER;CARTRIGE TYPE

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010iB,11B,13B..BU6#,7#,8#198409-198708

29331BLADE, VACUUM PUMP, A

main29331-78010iB,11B,13B..BU6#,7#,8#198409-198708

29342PACKING, VACUUM PUMP

main96740-02063iB,11B,13B..BU6#,7#,8#198409-198708

29369VALVE SUB-ASSY, CHECK

main29369-56070iB,11B,13B..BU6#,7#,8#198409-198708

2936466010WASHER, VACUUM PUMP

main29364-66010

9004401043

main90044-01043

9009904577

main90099-04577

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9043010004

main90430-10004

9611210180

main96112-10180

15 parts on this diagram · 1 diagram in section
