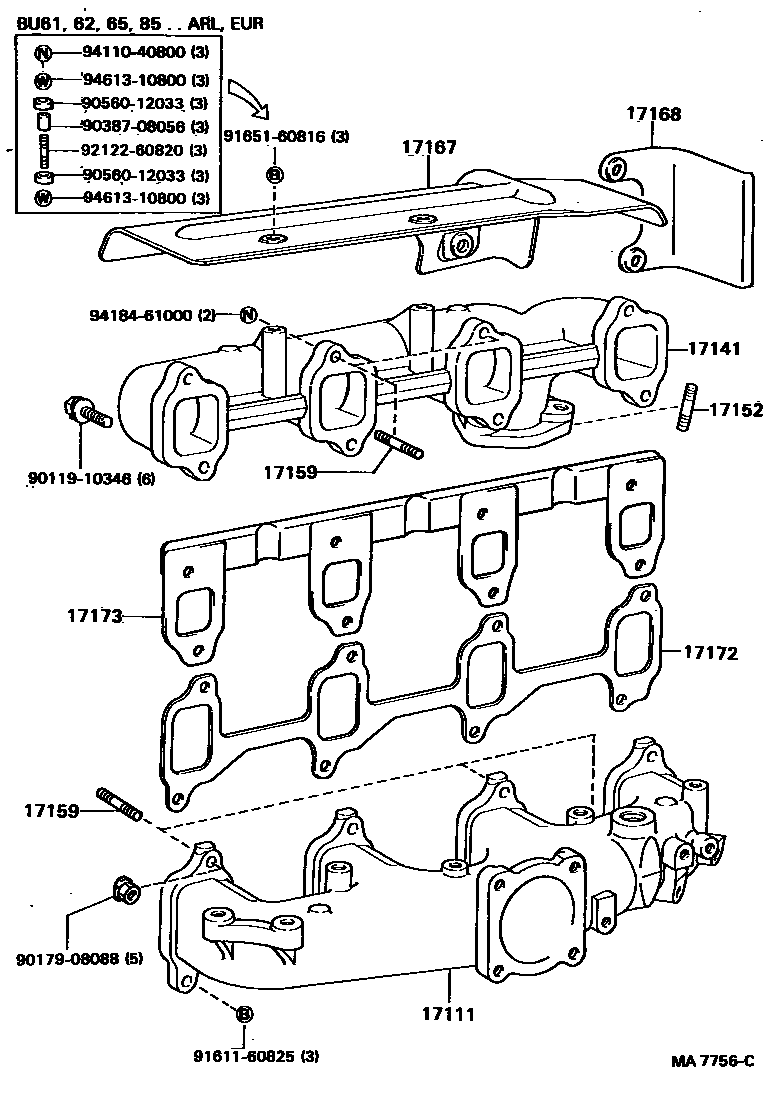

MANIFOLD

17111MANIFOLD, INTAKE

main17111-56150iB..BU60,63,70,75,80198409-198708

main17111-56160i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

17141MANIFOLD, EXHAUST

main17141-56050iB,11B,13B..BU6#,7#,8#198409-198708

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10056×3iB,11B,13B..BU6#,7#,8#198409-198705

main90116-10087×3iB,11B,13B..BU6#,7#,8#198705-198708

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10098×2iB,11B,13B..BU6#,7#,8#198409-198708

EXHAUST MANIFOLD

main92132-60825×5iB,11B,13B..BU6#,7#,8#198409-198708

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-56022i11B,13B..BU61,62,65,85..GEN; B,11B,13B..BU60,63,7#,80,81,82,86198409-198708

main17167-56030i11B,13B..BU61,62,65,85..ARL,EUR198409-198708

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-58030iB,11B,13B..BU6#,7#,8#198409-198708

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-56022iB,11B,13B..BU6#,7#,8#198409-198708

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-58010iB,11B,13B..BU6#,7#,8#198409-198708

9011910346

main90119-10346

9017908088

main90179-08088

9038708056

main90387-08056

9056012033

main90560-12033

9161160825

main91611-60825

9165160816

main91651-60816

9212260820

main92122-60820

9411040800

main94110-40800

9418461000

main94184-61000

9461310800

main94613-10800

18 parts on this diagram · 1 diagram in section
