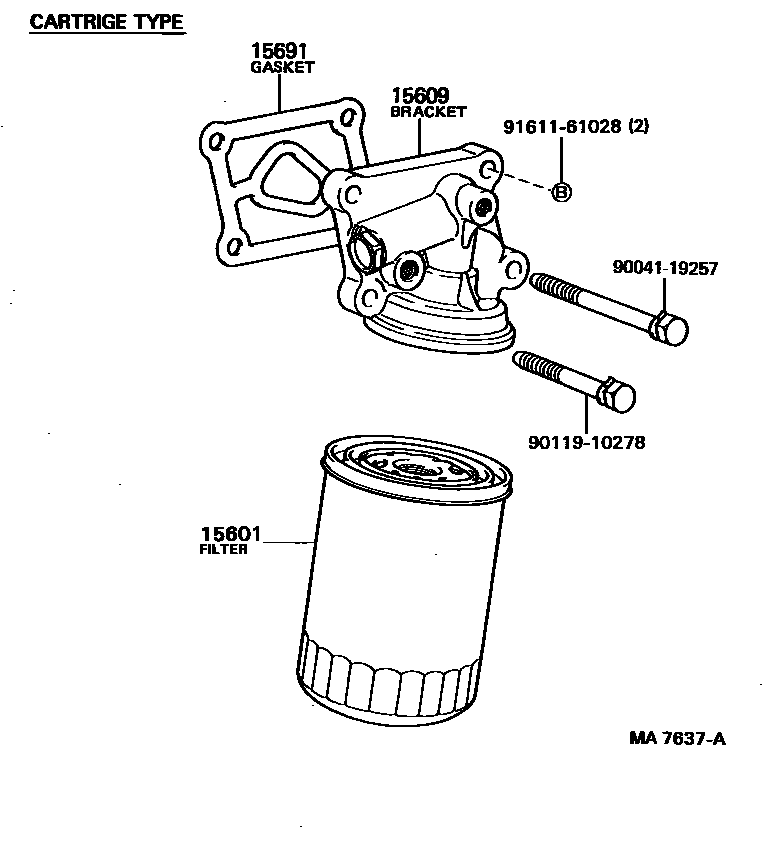

OIL FILTER

0001 1 0002 1

15601FILTER SUB-ASSY, OIL

main04152-46011i11B..BU61,76,81,86..(GEN,GHD)..(CBU,IV3)198501-198708

ELEMENT TYPE

main15600-41010iB,11B,13B..BU6#,7#,8#198409-198708

sub90915-40002

15609BRACKET SUB-ASSY, OIL FILTER

main15609-56040iB,11B,13B..BU6#,7#,8#198409-198708

15691GASKET, OIL FILTER

main15691-56030iB,11B,13B..BU6#,7#,8#198409-198708

sub15691-56031

9004119257

main90041-19257

9011910278

main90119-10278

9161161028

main91611-61028

6 parts on this diagram · 2 diagrams in section
