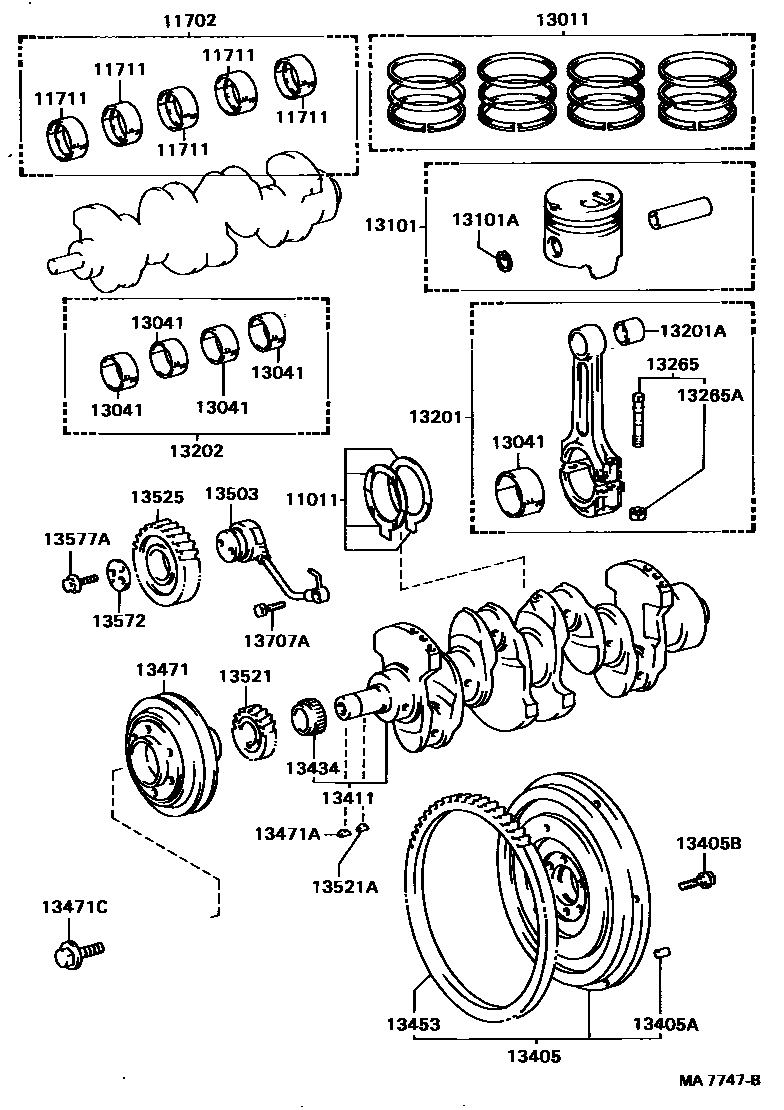

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-56010iB,11B,13B..BU6#,7#,8#198409-198506

STD,STD

main11011-56020iB,11B,13B..BU6#,7#,8#198506-198708

STD,STD

main11012-56010iB,11B,13B..BU6#,7#,8#198409-198506

O/S 0.125,O/S 0.125

main11012-56020iB,11B,13B..BU6#,7#,8#198506-198708

O/S 0.125,O/S 0.125

main11013-56010iB,11B,13B..BU6#,7#,8#198409-198506

O/S 0.250,O/S 0,250

main11013-56020iB,11B,13B..BU6#,7#,8#198506-198708

O/S 0.250,O/S 0,250

11702BEARING SET, CRANKSHAFT

main11704-56020iB,11B,13B..BU6#,7#,8#198409-198708

U/S 0.25,U/S 0.25

main11705-56020iB,11B,13B..BU6#,7#,8#198409-198708

U/S 0.50,U/S 0.50

main11707-56020iB,11B,13B..BU6#,7#,8#198409-198708

U/S 1.00,U/S 1.00

11711BEARING, CRANKSHAFT

main11701-56010-01iB,11B,13B..BU6#,7#,8#198409-198708

MARK"1",MARK 1

main11701-56010-02iB,11B,13B..BU6#,7#,8#198409-198708

MARK"2",MARK 2

13011RING SET, PISTON

main13011-56021iB..BU60,63,70,75,80198409-198605

STD

main13011-56022iB..BU60,63,70,75,80198605-198708

STD

main13011-56030i11B..BU61,65,76,81,86198501-198708

STD

main13011-58030i13B..BU62,82,85198409-198708

STD

13041BEARING, CONNECTING ROD

main13041-56010-01iB..BU60,63,70,75,80198409-198708

MARK"1",MARK 1

main13041-56010-02iB..BU60,63,70,75,80198409-198708

MARK"2",MARK 2

main13041-58010-01i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

MARK"1",MARK 1

main13041-58010-02i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

MARK"2",MARK 2

13101PISTON SUB-ASSY, W/PIN

main13101-56031iB..BU60,63,70,75,80198409-198605

STD

main13101-56032iB..BU60,63,70,75,80198605-198708

STD

main13101-56041i11B..BU61,65,76,81,86198501-198708

STD

main13101-58020i13B..BU62,82,85198409-198708

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-31001iB..BU60,63,70,75,80198409-198708

main90521-37007i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

13201ROD SUB-ASSY, CONNECTING

main13201-59045iB..BU60,63,70,75,80198409-198708

main13201-59055i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73065iB..BU60,63,70,75,80198409-198708

main90999-73099i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

13202BEARING SET, CONNECTING ROD

main13204-56011iB..BU60,63,70,75,80198409-198708

U/S 0.25,U/S 0.25

main13204-58011i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

U/S 0.25,U/S 0.25

main13205-56011iB..BU60,63,70,75,80198409-198708

U/S 0.50,U/S 0.50

main13205-58011i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

U/S 0.50,U/S 0.50

main13207-56011iB..BU60,63,70,75,80198409-198708

U/S 1.00,U/S 1.00

main13207-58011i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

U/S 1.00,U/S 1.00

13265BOLT, CONNECTING ROD

main13265-58010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

main13265-59015iB..BU60,63,70,75,80198409-198708

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-11006iB..BU60,63,70,75,80198409-198708

main90179-12044i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

13405FLYWHEEL SUB-ASSY

main13405-56031iB,11B,13B..BU6#,7#,8#..5F198409-198705

main13405-56032iB,11B,13B..BU6#,7#,8#..5F198705-198708

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-10192iB,11B,13B..BU6#,7#,8#..5F198409-198708

L=22,OD=10,L=22,OD=10

13405BBOLT, FLYWHEEL SETTING

main90105-13004iB,11B,13B..BU6#,7#,8#..5F198409-198705

main90913-01015iB,11B,13B..BU6#,7#,8#..5F198705-198708

13411CRANKSHAFT

main13401-56020iB..BU60,63,70,75,80198409-198708

main13401-58020i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

13434SPLINE, OIL PUMP DRIVE

main13519-56010iB,11B,13B..BU6#,7#,8#198409-198708

13453GEAR, FLYWHEEL RING

main13453-56020iB,11B,13B..BU6#,7#,8#..5F198409-198708

N=110

13471PULLEY, CRANKSHAFT

main13470-56150i11B,13B..BU61,62,65,76,81,82,85,86..ARL,EUR,GEN,GHD198409-198708

main13470-56170i11B..BU61,76,81,86..(GEN,GHD)..(CBU,IV3)198409-198708

W/HAC

main13470-56170i11B..BU81..SA198604-198708

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-10416iB,11B,13B..BU6#,7#,8#198409-198708

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16003iB,11B,13B..BU6#,7#,8#198409-198708

13503SHAFT SUB-ASSY, IDLE GEAR

main13504-56030iB,11B,13B..BU6#,7#,8#198409-198708

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-56030iB,11B,13B..BU6#,7#,8#198409-198708

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-10519iB,11B,13B..BU6#,7#,8#198409-198708

13525GEAR, IDLE, NO.1

main13508-56010iB,11B,13B..BU6#,7#,8#198409-198708

13572PLATE, IDLE GEAR THRUST

main13572-56020iB,11B,13B..BU6#,7#,8#198409-198708

13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)

main90105-10194iB,11B,13B..BU6#,7#,8#198606-198708

main90119-10208iB,11B,13B..BU6#,7#,8#198409-198606

13707AUNION(FOR OIL PIPE, NO.1)

main90044-01010iB,11B,13B..BU6#,7#,8#198409-198708

28 parts on this diagram · 2 diagrams in section
