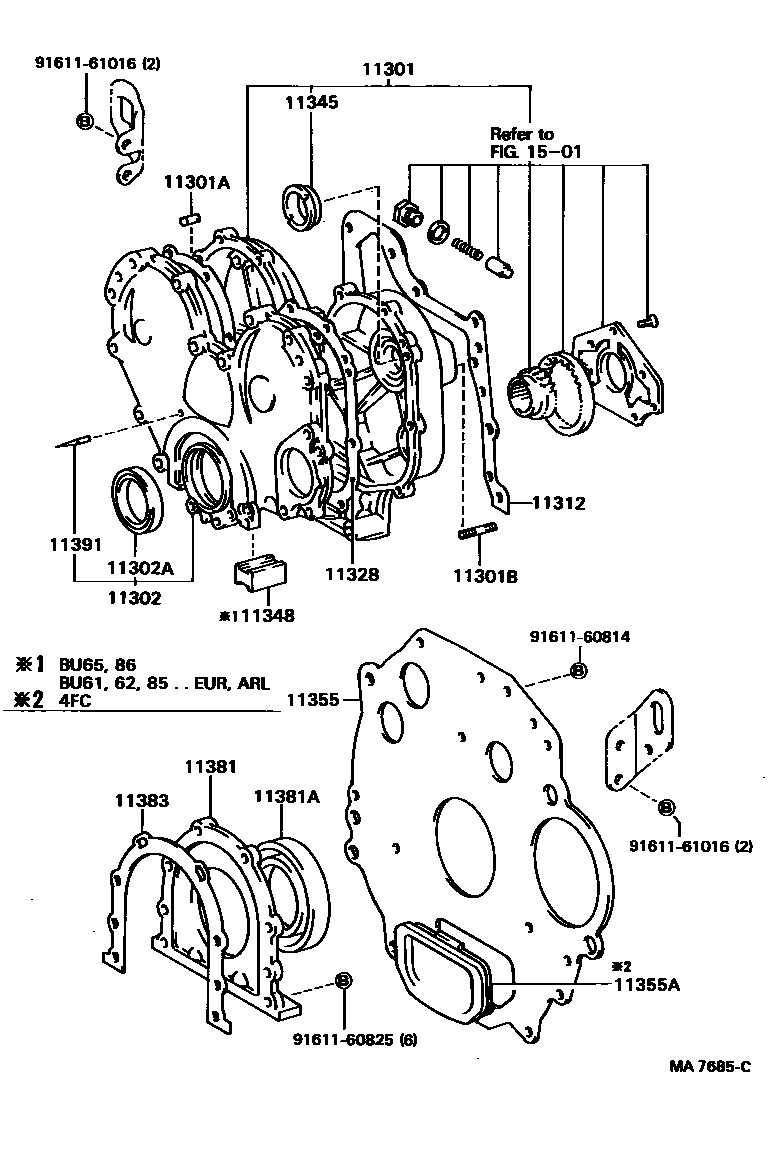

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-56060i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

main11301-56070iB..BU60,63,70,75,80198409-198708

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120×2iB,11B,13B..BU6#,7#,8#198409-198708

L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-10048×3iB,11B,13B..BU6#,7#,8#198409-198708

L=40,S=19&12

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-56040iB,11B,13B..BU6#,7#,8#198409-198708

main11302-56050i11B..BU65..CBU; B..BU60..T1,T2,T3198508-198708

W/POWER STEERING

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-50002iB,11B,13B..BU6#,7#,8#198409-198503

main90311-50007iB,11B,13B..BU6#,7#,8#198503-198708

11312GASKET, FRONT END PLATE

main11312-56031iB,11B,13B..BU6#,7#,8#198409-198708

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-56040iB,11B,13B..BU6#,7#,8#198409-198708

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010iB..BU60,63,70,75,80198409-198708

main11345-56020i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

11348SPACER, TIMING GEAR COVER

main11348-56010i11B,13B..BU61,62,85..ARL,EUR198409-198708

11355PLATE, REAR END

main11355-56052iB,11B,13B..BU6#,7#,8#198409-198502

main11355-56053iB,11B,13B..BU6#,7#,8#..5F198502-198708

main11355-58011i13B..BU62..ARL198510-198708

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01263i13B..BU62..ARL198510-198708

11381RETAINER, ENGINE REAR OIL SEAL

main11381-56031iB,11B,13B..BU6#,7#,8#198409-198708

11381ASEAL, ENGINE REAR OIL

main90311-95001iB,11B,13B..BU6#,7#,8#198409-198502

main90311-95003iB,11B,13B..BU6#,7#,8#198502-198708

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-56031iB,11B,13B..BU6#,7#,8#198409-198708

11391POINTER, TIMING

main11391-56020iB,11B,13B..BU6#,7#,8#198409-198708

1501ENGINE OIL PUMP

→ Go to FIG 15-01

9161160814

main91611-60814

9161160825

main91611-60825

9161161016

main91611-61016

19 parts on this diagram · 2 diagrams in section
