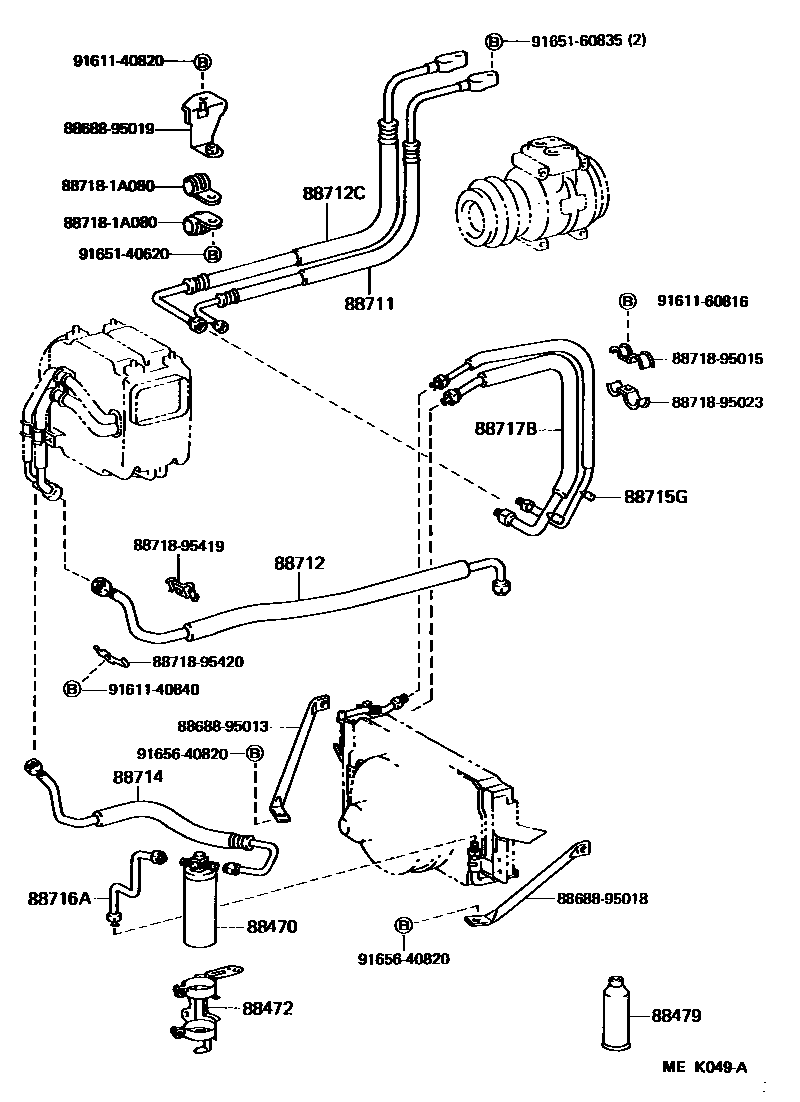

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1MAKER OPTION 0003 1DEALER OPTION 0005 1DEALER OPTION 0006 1MAKER OPTION 0007 1DEALER OPTION 0008 1DEALER OPTION 0009 1MAKER OPTION 0011 1MAKER OPTION 0012 1DEALER OPTION 0013 1MAKER OPTION 0014 1MAKER OPTION 0015 1DEALER OPTION 0016 1 0017 1

88470RECEIVER & DRYER ASSY, COOLER

main88471-16040iLY61..RHD..ST..GEN; LY61..T2;LY61..ARL198808-199309

DEALER OPTION

main88471-20050iLY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST; YY61..RHD..ST199309-199505

W(BOOST VENTILATOR)

main88471-95010iLY61..LHD; LY61..RHD..ST..GEN198808-199309

MAKER OPTION

main88471-95401iLY60..LHD; LY60..RHD..ST..GEN198708-198808

MAKER OPTION

main88471-95700iLY60..ARL;LY60,YY61..T2; YY52,61..LHD; YY61..RHD..ST198708-199309

DEALER OPTION; W(BOOST VENTILATOR)

88472BRACKET, RECEIVER TANK, NO.1

main88472-25030iYY61..LHD..T3;YY52,61..T2,TW; YY61..RHD..ST199309-199505

W(BOOST VENTILATOR)

main88472-25040iLY61..RHD..ST..GEN199309-199505

MAKER OPTION

main88472-25050iLY61..LHD199309-199505

main88472-95010iYY61..RHD..ST; YY61..T2;LY60,YY52;YY61..LHD198708-199309

main88472-95011iLY61..ARL..CBU;LY61..RHD..(T2,T3)198808-199309

main88472-95012iLY61..LHD198808-199309

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iLY61..LHD; LY61..RHD..ST..GEN; YY52,61..LHD198808-198910

400G

main90986-02004×2iLY61..ARL..IV;LY61,YY61..RHD..(T2,TW); LY61..RHD..ST..GEN; YY52,61..LHD198808-198910

250G

main90986-02007iLY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST; YY61..RHD..ST199309-199505

250G

main90986-02008×2iLY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST; YY61..RHD..ST199309-199505

200G

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-25050iYY61..LHD..T3;YY52,61..T2,TW; YY61..RHD..ST199309-199505

W(BOOST VENTILATOR) & DEALER OPTION

main88711-25060iLY61..T2,T3;LY61..TW..ST199309-199505

main88711-95012iYY61..RHD..ST; YY61..T2;YY52,61..LHD198708-199309

W(BOOST VENTILATOR)

main88711-95041iLY60..ST..GEN198708-198808

main88711-95043iLY61..T2,T3;LY61..TW..ST198808-199309

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-25040iYY61..LHD..T3;YY52,61..T2,TW; YY61..RHD..ST199309-199505

W(BOOST VENTILATOR)

main88712-25050iLY61..RHD..(T2,T3)199309-199505

main88712-25060iLY61..LHD199309-199505

main88712-95015iLY60,YY52,61..LHD198708-198808

main88712-95017iYY61..RHD..ST; YY61..WT;LY60..RHD..GEN198708-198808

W(BOOST VENTILATOR)

main88712-95032iLY60..ARL198708-198808

main88712-95033iLY61..ARL..CBU;LY61..RHD..(T2,T3)198808-199309

main88712-95034iLY61..LHD198808-199309

88712CHOSE, SUCTION

main88712-25070iYY61..LHD..T3;YY52,61..T2,TW; YY61..RHD..ST199309-199505

W(BOOST VENTILATOR) & DEALER OPTION

main88712-25080iLY61..T2,T3;LY61..TW..ST199309-199505

main88712-95018iYY61..RHD..ST; YY61..T2;YY52,61..LHD198708-199309

W(BOOST VENTILATOR)

main88712-95031iLY60..ST..GEN198708-198808

main88712-95035iLY61..T2,T3;LY61..TW..ST198808-199309

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-25020iYY52,61..LHD199309-199505

main88721-25030iLY61..T2,T3;LY61..TW..ST199309-199505

main88721-25040iYY61..RHD..ST; YY61..WT199309-199505

W(BOOST VENTILATOR)

main88721-95012iYY61..RHD..ST; YY61..WT;LY60..RHD..GEN198708-198808

W(BOOST VENTILATOR)

main88721-95013iLY60,YY52,61..LHD198708-198808

main88721-95014iLY60..ARL198708-198808

main88721-95016iLY61..T2,T3;LY61..TW..ST198808-199309

main88721-95017iYY52,61..LHD198808-199309

88715GTUBE, DISCHARGE, G

main88715-25060iYY61..LHD..T3;YY52,61..T2,TW; YY61..RHD..ST199309-199505

W(BOOST VENTILATOR)

main88715-25070iLY61..T2,T3;LY61..TW..ST199309-199505

main88715-95011iYY61..RHD..ST; YY61..T2;LY60,YY52;YY61..LHD198708-199309

W(BOOST VENTILATOR)

main88715-95012iLY61..T2,T3;LY61..TW..ST198808-199309

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-25040iYY61..LHD..T3;YY52,61..T2,TW; YY61..RHD..ST199309-199505

W(BOOST VENTILATOR)

main88716-25050iLY61..RHD..(T2,T3)199309-199505

main88716-25060iLY61..LHD199309-199505

main88716-95014iYY61..RHD..ST; YY61..T2;LY60,YY52;YY61..LHD198708-199309

W(BOOST VENTILATOR)

main88716-95021iLY61..ARL..CBU;LY61..RHD..(T2,T3)198808-199309

main88716-95023iLY61..LHD198808-199309

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-25080iYY52,61..LHD199309-199505

main88717-25090iLY61..RHD..(T2,T3)199309-199505

main88717-25100iLY61..LHD199309-199505

main88717-25120iYY61..RHD..ST; YY61..WT199309-199505

W(BOOST VENTILATOR)

main88717-95013iLY60,YY52,61..LHD198708-199309

main88717-95014iYY61..RHD..ST; YY61..T2;LY60..RHD198708-199309

W(BOOST VENTILATOR)

main88717-95015iLY61..ARL..CBU;LY61..RHD..(T2,T3)198808-199309

main88717-95016iLY61..LHD198808-199309

8868895013BRACKET, COOLER DIAPHRAGM

main88688-95013

8868895018BRACKET, COOLER DIAPHRAGM

main88688-95018

8868895019BRACKET, COOLER DIAPHRAGM

main88688-95019

887181A080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A080

8871895015PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95015

8871895023PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95023

8871895419PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95419

8871895420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95420

9161140820

main91611-40820

9161140840

main91611-40840

9161160816

main91611-60816

9165140620

main91651-40620

9165160835

main91651-60835

9165640820

main91656-40820

24 parts on this diagram · 15 diagrams in section
