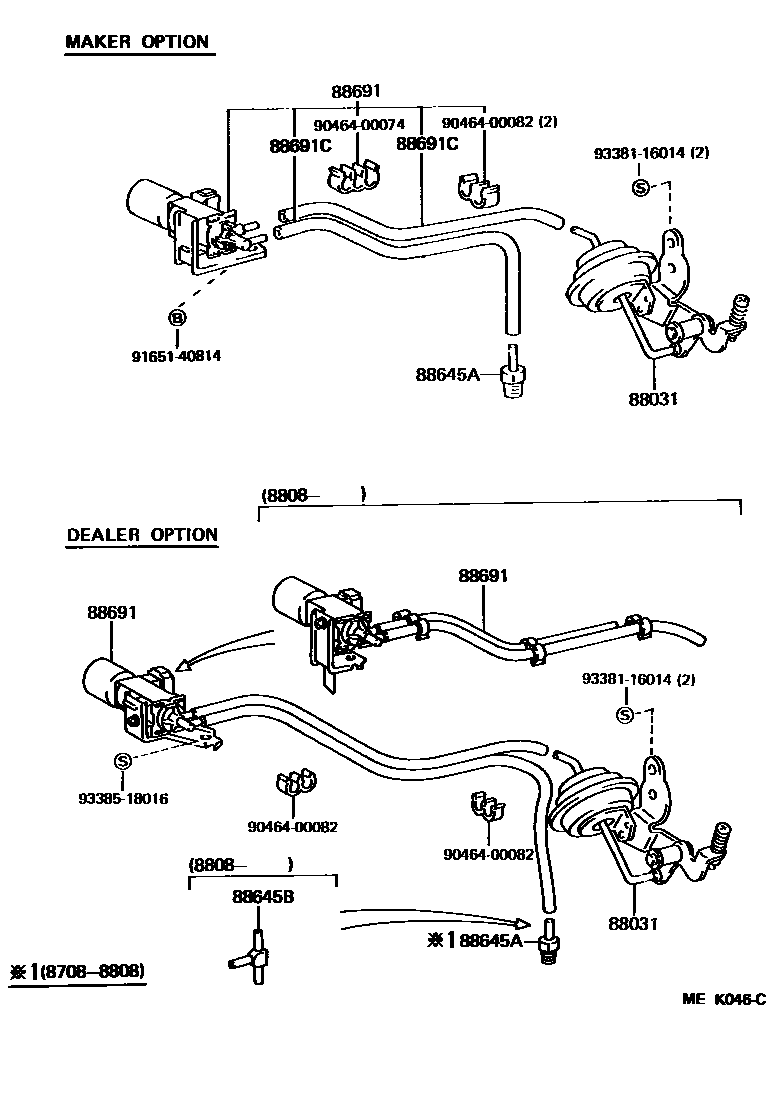

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1MAKER OPTION 0003 1DEALER OPTION

88031ACTUATOR SET, IDLE-UP

main88031-25020iLY61..RHD..ST..GEN; LY61..T2;LY61..ARL199102-199309

DEALER OPTION

main88031-28010iYY61..RHD..ST198708-199309

SINGAPORE SPEC & W(BOOST VENTILATOR) OR DEALER OPTION

main88031-30060iLY61..RHD..ST..GEN198808-199505

MAKER OPTION & W(HEATER)

main88031-35040iLY61..ARL..IV;LY61..RHD..(T2,TW); LY61..RHD..ST..GEN198808-199102

DEALER OPTION

88645AUNION (FOR IDLE UP DEVICE)

main90404-51093iYY61..LHD..T3;YY52,61..T2,TW; YY61..RHD..ST198708-198808

main90405-05127iLY60;LY61..RHD198708-199102

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04001iYY61..RHD..ST; YY61..T2198808-199309

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-95020iLY60..LHD; LY60..RHD..ST..GEN198708-198808

MAKER OPTION

main88690-95021iYY61..RHD..ST199301-199505

SINGAPORE SPEC

main88690-95022iYY52,61..LHD198708-199505

MAKER OPTION

main88690-95023iLY60..RHD..ST..GEN; LY60..WT;LY60..ARL198708-198808

DEALER OPTION

main88690-95024iYY52,61..LHD198708-199505

DEALER OPTION

main88690-95027iLY61..LHD; LY61..RHD..ST..GEN198808-199505

MAKER OPTION

main88690-95028iLY61..RHD..ST..GEN; LY61..T2;LY61..ARL198808-199505

DEALER OPTION

main88690-95A15iYY61..RHD..ST; YY61..WT198708-198808

SINGAPORE SPEC

main88690-95A25iYY61..RHD..ST; YY61..T2198808-199301

SINGAPORE SPEC

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90999-92002iYY52,61..ST199309-199505

L=300

main90999-92003iLY60..ST..GEN198708-198808

L=600

main90999-92004iLY61..ST..GEN198808-199108

L=950

main95411-10038iLY61..ST..GEN199108-199505

*H,L=380,MARK=#0

9046400074

main90464-00074

9046400082

main90464-00082

9165140814

main91651-40814

9338116014

main93381-16014

9338518016

main93385-18016

10 parts on this diagram · 3 diagrams in section
