BATTERY & BATTERY CABLE

28800BATTERY

main28800-12060×2i3Y..YY52,61198908-199505

50D20R,50D20R

main28800-46012×2i3L..LY61199207-199505

75D31R

main28800-54030i2L..LY60..GEN;3L..LY61..TW..ST..GEN;3L..LY61..(T2,T3)..GEN198708-199505

95D31L,95D31L

main28800-72010i3Y..YY52,61198708-199505

34B19L(S)

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-25030i3Y..YY61..RHD..ST; 3Y..YY61..T2199208-199309

50D20R; SINGAPORE SPEC & 50D20R BATTERY

main82021-25040i3Y..YY61..TW..WT199208-199309

50D20R

main82021-25050i3Y..YY61..T2,T3199109-199208

main82021-25051i3Y..YY61..T3199309-199505

main82021-25060i3Y..YY52,61..TW..ST199208-199309

main82021-25061i3Y..YY52,61..TW..ST199309-199505

main82021-25070i3Y..YY61..T3199208-199309

50D20R

main82021-25071i3Y..YY61..T3199309-199505

50D20R

main82021-25080i3Y..YY52,61..TW..ST199208-199309

50D20R

main82021-25081i3Y..YY52,61..TW..ST199309-199505

50D20R

main82021-25110i3Y..YY61..RHD..ST; 3Y..YY61..T2199208-199309

SINGAPORE SPEC

main82021-25111i3Y..YY61..RHD..ST; 3Y..YY61..T2199309-199505

SINGAPORE SPEC

main82021-25120i3Y..YY61..TW..WT199208-199309

main82021-25121i3Y..YY61..TW..WT199309-199505

main82021-25190i3L..LY61..T2,T3199309-199505

main82021-25200i3L..LY61..TW199309-199505

main82021-25210i3L..LY61..(T2,T3)..GEN199309-199505

95D31L

main82021-25220i3L..LY61..TW..ST199309-199505

95D31L

main82021-25230i3Y..YY61..RHD..ST; 3Y..YY61..T2199309-199505

50D20R; SINGAPORE SPEC & 50D20R BATTERY

main82021-25240i3Y..YY61..TW..WT199309-199505

50D20R

main82021-95035i3Y..YY52,61..TW198708-198910

50D20R

main82021-95037i3Y..YY52,61..TW198708-198910

main82021-95043i2L,3L..LY6#..T2,T3198708-199309

main82021-95044i2L,3L..LY6#..(T2,T3)..GEN198708-199309

95D31L

main82021-95045i2L,3L..LY6#..TW198708-199309

main82021-95046i2L,3L..LY6#..TW..ST..GEN198708-199309

95D31L

main82021-95052i3Y..YY61..T2,T3198708-198910

50D20R

main82021-95053i3Y..YY61..T2,T3198708-198910

main82021-95067i3Y..YY61..T2,T3198910-199109

50D20R

main82021-95068i3Y..YY52,61..TW198910-199109

50D20R

main82021-95069i3Y..YY61..T2,T3198910-199109

main82021-95070i3Y..YY52,61..TW198910-199109

8271130700WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30700

8271140020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-40020

8271195013WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95013

8271195017WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95017

9011908827

main90119-08827

9017008204

main90170-08204

9046110432

main90461-10432

9046112146

main90461-12146

9046308124

main90463-08124

9161160814

main91611-60814

9165160830

main91651-60830

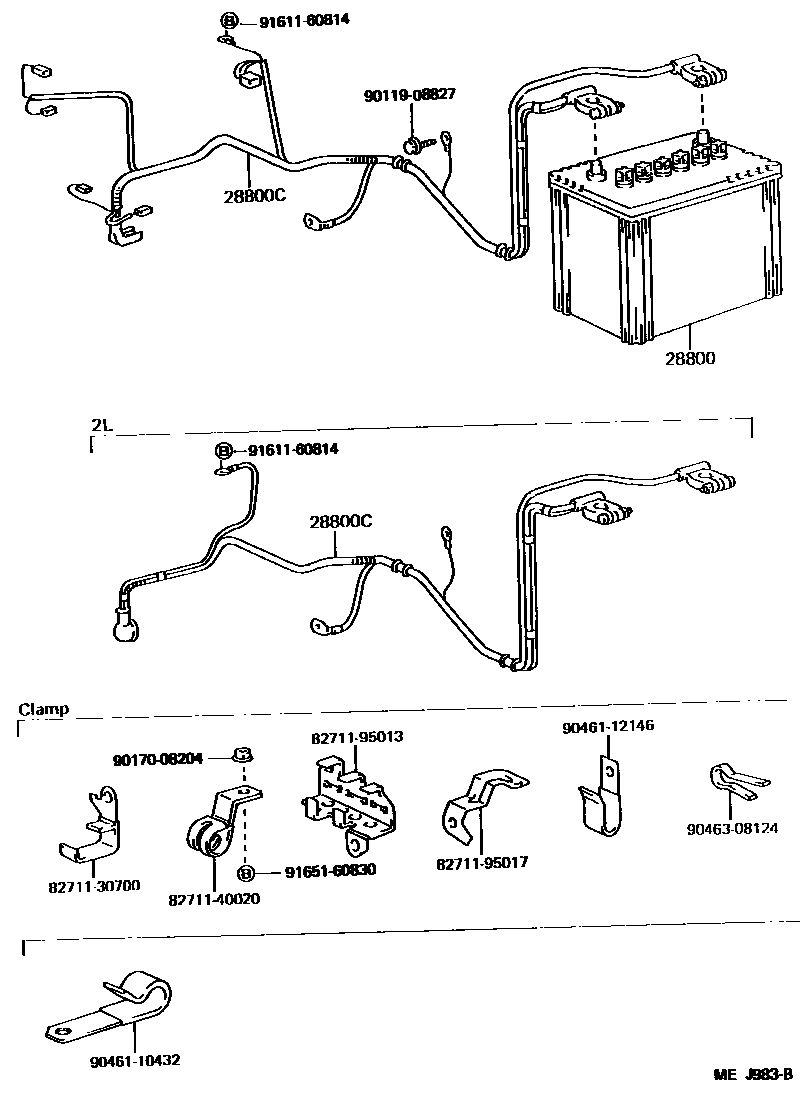

13 parts on this diagram · 1 diagram in section
