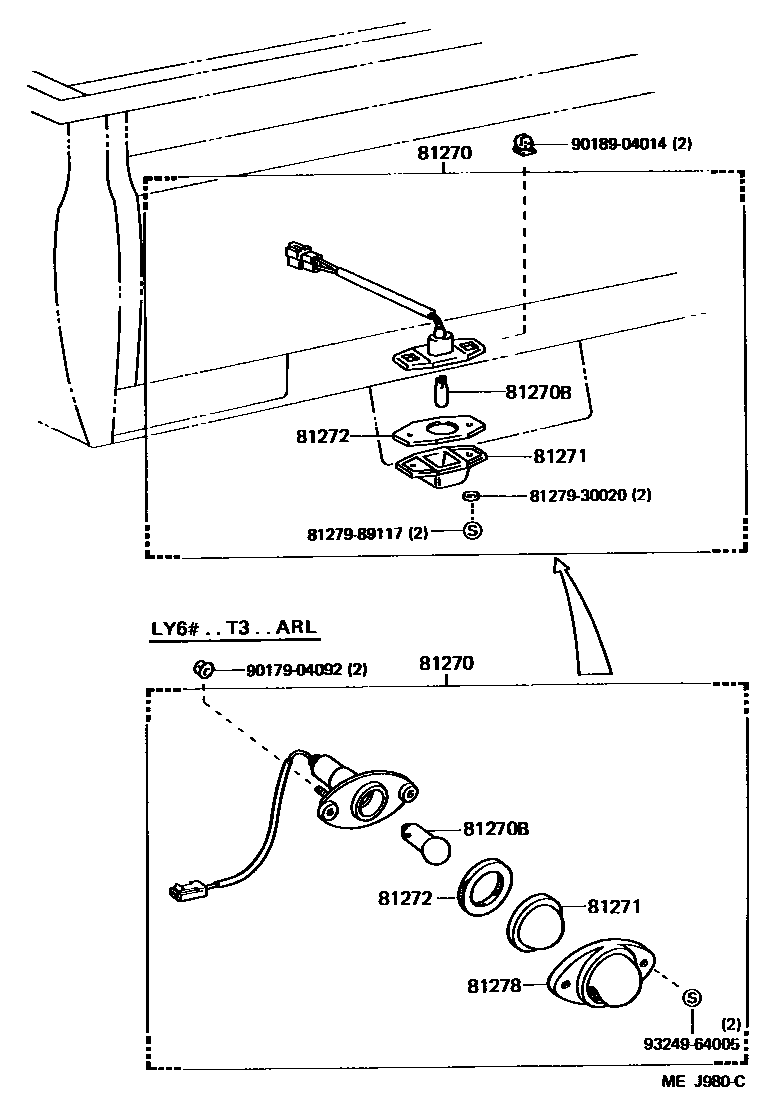

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-25030×2iLY61,YY52,61..GEN..CBU199110-199505

main81270-37030×2iLY61..ARL199109-199505

main81270-95014×2iLY61..CBU;LY61..GEN..IV;LY60..ARL..CBU;LY60,YY52,61..GEN198708-199105

main81270-95015×2iLY6#..ARL..IV198708-199105

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12013×2iLY6#..ARL..IV198708-199105

12V 10W

main99132-12050×2iLY61,YY52,61..GEN199105-199505

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-10010×2iLY6#..ARL..IV198708-199105

main81271-89110×2iLY61..CBU;LY61..GEN..IV;LY60..ARL..CBU;LY60,YY52,61..GEN198708-199105

81272GASKET, LICENSE PLATE LAMP LENS

main81272-10010×2iLY6#..ARL..IV198708-199105

main81272-37020×2iLY61..ARL199109-199505

main81272-89110×2iLY61,YY52,61..GEN199105-199505

81278COVER, LICENSE PLATE LAMP

main81276-95016×2iLY61..ARL199109-199505

main81278-10011×2iLY6#..ARL..IV198708-199105

8127930020WASHER, SIDE TURN SIGNAL LAMP

main81279-30020

8127989117WASHER, SIDE TURN SIGNAL LAMP

main81279-89117

9017904092

main90179-04092

9018904014

main90189-04014

9324964005

main93249-64005

10 parts on this diagram · 1 diagram in section
