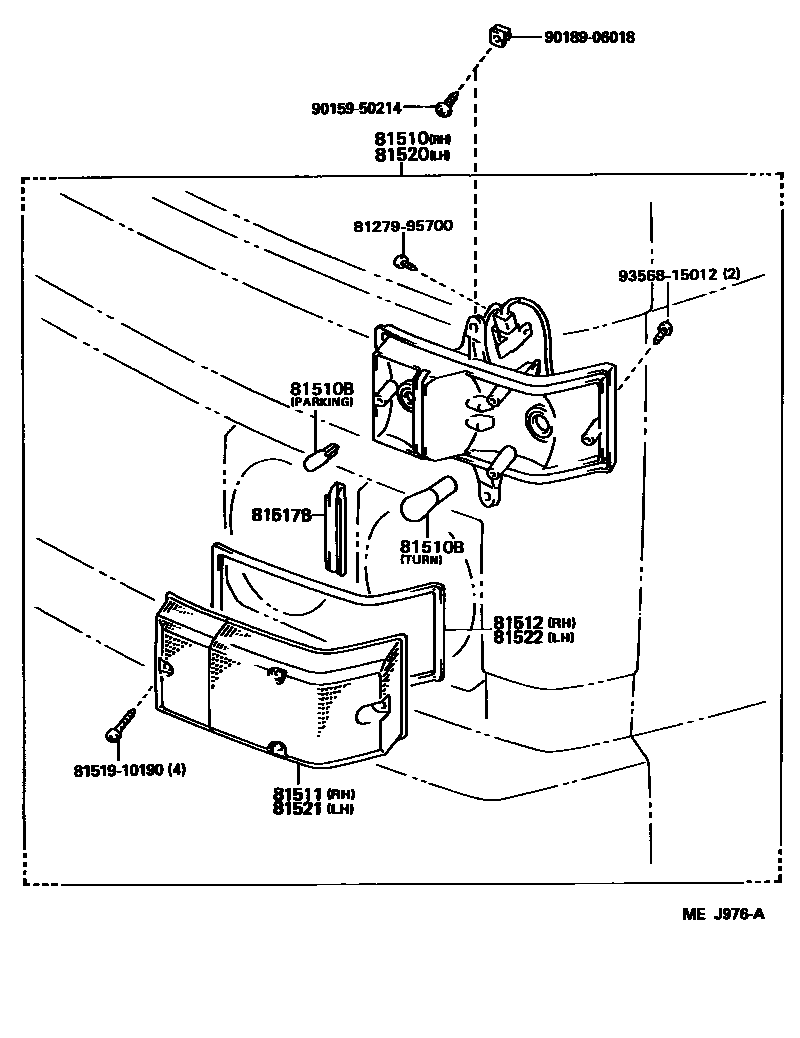

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-95409iLY6#..ARL198708-198910

main81510-95413iLY6#,YY52,61..GEN198708-199505

main81510-95416iLY61..ARL198910-199505

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iLY6#,YY52,61198708-199505

12V 21W

main99132-12050×2iLY6#,YY52,61198708-199505

12V 5W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-95408iLY6#,YY52,61198708-199505

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-95406iLY6#,YY52,61198708-199505

81517BSHADE, FRONT TURN SIGNAL LAMP

main81517-95406×2iLY6#,YY52,61..GEN198708-199505

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-95409iLY6#..ARL198708-198910

main81520-95413iLY6#,YY52,61..GEN198708-199505

main81520-95416iLY61..ARL198910-199505

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81511-95408iLY6#,YY52,61198708-199505

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-95406iLY6#,YY52,61198708-199505

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

8151910190BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-10190

9015950214

main90159-50214

9018906018

main90189-06018

9356815012

main93568-15012

13 parts on this diagram · 1 diagram in section
