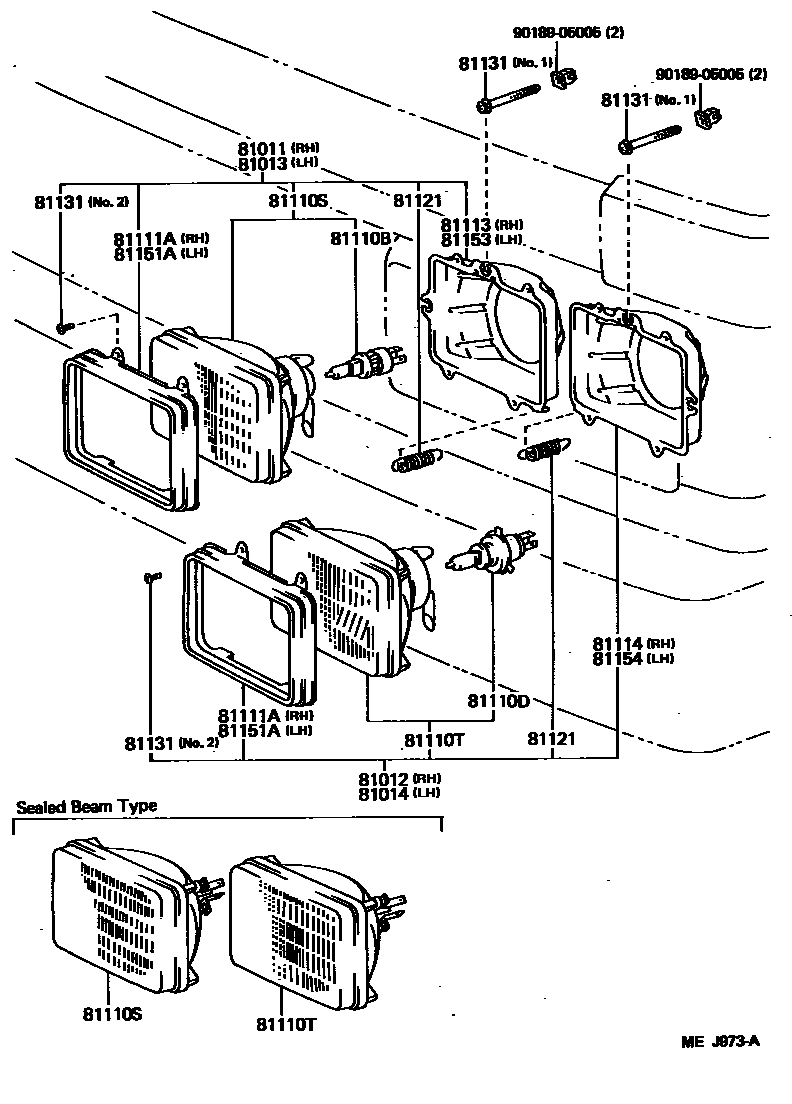

HEADLAMP
81011HEADLAMP SUB-ASSY, NO.1
YELLOW SEMI SHIELD BEAM
CHINA SPEC OR WHITE SEMI SHIELD BEAM; WHITE SEMI SHIELD BEAM
CHINA SPEC OR WHITE SEMI SHIELD BEAM; WHITE SEMI SHIELD BEAM
YELLOW SEMI SHIELD BEAM
HALOGEN,WHITE
81012HEADLAMP SUB-ASSY, NO.2
YELLOW SEMI SHIELD BEAM
CHINA SPEC OR WHITE SEMI SHIELD BEAM; WHITE SEMI SHIELD BEAM
WHITE SEMI SHIELD BEAM
CHINA SPEC OR WHITE SEMI SHIELD BEAM; WHITE SEMI SHIELD BEAM
WHITE SEMI SHIELD BEAM
YELLOW SEMI SHIELD BEAM
HALOGEN,WHITE
81013HEADLAMP SUB-ASSY, TYPE 1, LH
YELLOW SEMI SHIELD BEAM
CHINA SPEC OR WHITE SEMI SHIELD BEAM; WHITE SEMI SHIELD BEAM
CHINA SPEC OR WHITE SEMI SHIELD BEAM; WHITE SEMI SHIELD BEAM
YELLOW SEMI SHIELD BEAM
HALOGEN,WHITE
81014HEADLAMP SUB-ASSY, TYPE 2, LH
YELLOW SEMI SHIELD BEAM
CHINA SPEC OR WHITE SEMI SHIELD BEAM; WHITE SEMI SHIELD BEAM
WHITE SEMI SHIELD BEAM
CHINA SPEC OR WHITE SEMI SHIELD BEAM; WHITE SEMI SHIELD BEAM
WHITE SEMI SHIELD BEAM
YELLOW SEMI SHIELD BEAM
HALOGEN,WHITE
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE
12V 45/40W,YELLOW
81110DBULB(FOR HEADLAMP, NO.2)
12V 45/40W,WHITE
12V 45/40W,YELLOW
81110SSEALED BEAM UNIT, NO.1
12V 37.5W,*WB
12V 45/40W,*YSB
12V 45/40W,*WSB
12V 50W,*HAL,*WB
12V 50W,*WB
81110TSEALED BEAM UNIT, NO.2
12V 37.5/50W,*WB
12V 37.5/50W,*WB
12V 45/40W,*YSB
12V 45/40W,*WSB
12V 45/40W,*WSB
12V 40/60W,*WB
12V 40/60W,*HAL,*WB
81111ARING, SEALED BEAM RETAINING, NO.1 RH
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81114RING, SEALED BEAM MOUNTING, NO.2 RH
81121SPRING, HEADLAMP TENSION
LH
RH
81131SCREW, HEADLAMP ADJUSTING
NO.2
NO.1
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
81154RING, SEALED BEAM MOUNTING, NO.2 LH
9018905005
main90189-05005
17 parts on this diagram · 2 diagrams in section
