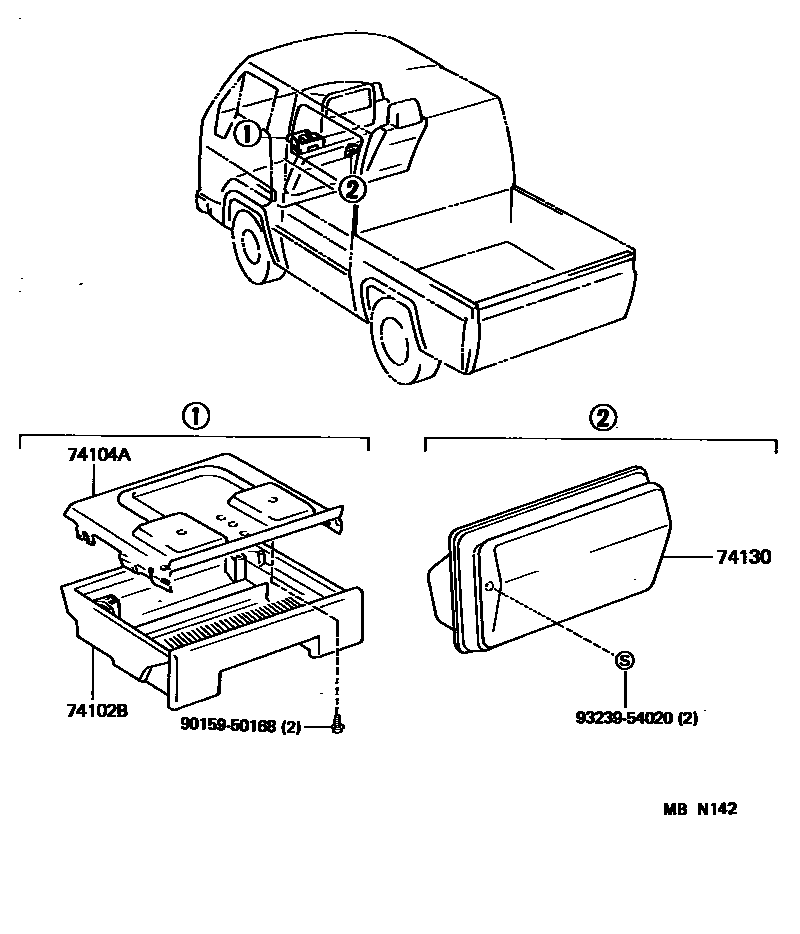

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-95409-06iLY6#,YY52,61198708-199109

BROWN,TRIM4#

main74102-95409-B0iLY61,YY52,61199109-199505

GRAY,TRIM1#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-95406iLY6#,YY52,61198708-199505

74130RECEPTACLE ASSY, REAR ASH

main74130-14020-01iLY60,YY52,61..TW198708-198710

BLACK,TRIM4#

main74130-95401-06iLY6#,YY52,61..TW198710-199109

BROWN,TRIM4#

main74130-95401-B0iLY61,YY52,61..TW199109-199505

GRAY,TRIM1#

9015950168

main90159-50168

9323954020

main93239-54020

5 parts on this diagram · 1 diagram in section
