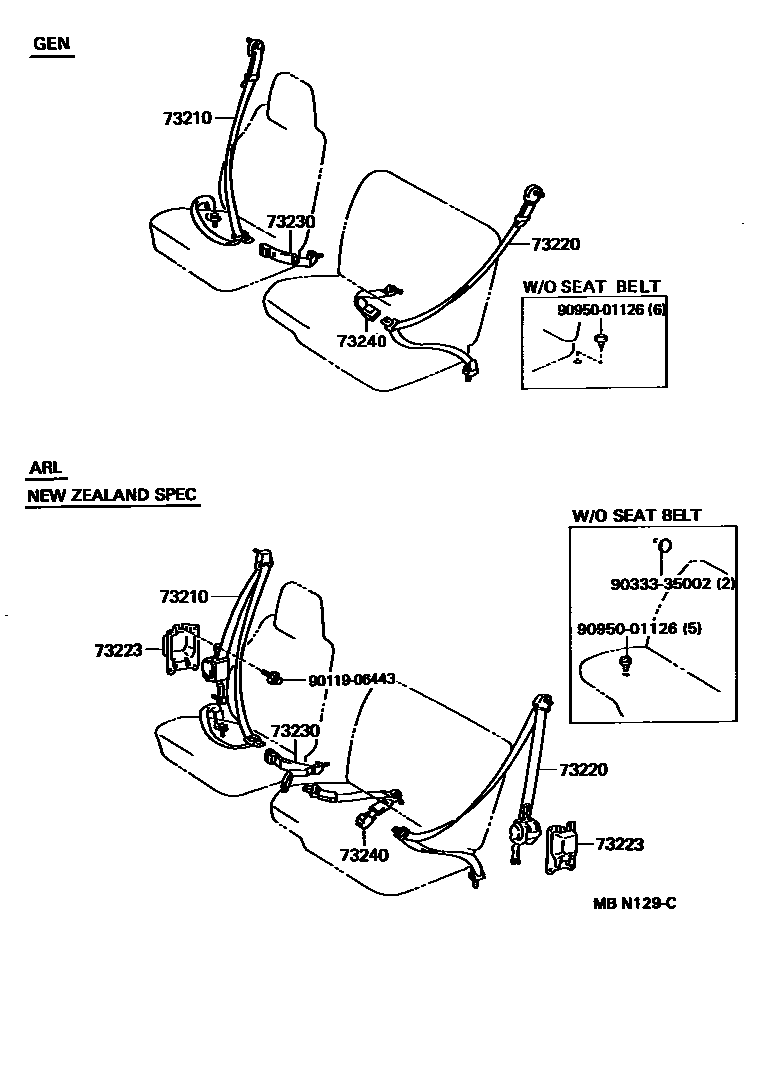

SEAT BELT
73210BELT ASSY, FRONT SEAT OUTER, RH
GRAY,TRIM1#
BROWN,TRIM4#; NEW ZEALAND SPEC,BROWN,TRIM4#
DARK BROWN,TRIM4#; NEW ZEALAND SPEC,DARK BROWN,TRIM4#
main73210-95A00-06iLY6#..RHD..GEN..IV; YY61..T2,T3;YY61..TW..ST;LY60..LHD..IV;LY6#,YY52..GEN..CBU198708-199109
BROWN,TRIM4#; W(3-POINT TYPE FRONT SEAT BELT),BROWN,TRIM4#
W(3-POINT TYPE FRONT SEAT BELT),GRAY,TRIM1#
73220BELT ASSY, FRONT SEAT OUTER, LH
GRAY,TRIM1#
BROWN,TRIM4#; NEW ZEALAND SPEC,BROWN,TRIM4#
DARK BROWN,TRIM4#; NEW ZEALAND SPEC,DARK BROWN,TRIM4#
main73210-95A00-06iLY6#..RHD..GEN..IV; YY61..T2,T3;YY61..TW..ST;LY60..LHD..IV;LY6#,YY52..GEN..CBU198708-199109
BROWN,TRIM4#; W(3-POINT TYPE FRONT SEAT BELT),BROWN,TRIM4#
W(3-POINT TYPE FRONT SEAT BELT),GRAY,TRIM1#
73223COVER, SEAT BELT RETRACTOR
73230BELT ASSY, FRONT SEAT INNER, RH
BROWN,TRIM4#; NEW ZEALAND SPEC,BROWN,TRIM4#
GRAY,TRIM1#
BROWN,TRIM4#; W(3-POINT TYPE FRONT SEAT BELT),BROWN,TRIM4#
GRAY,TRIM1#
BROWN,TRIM4#
GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
NEW ZEALAND SPEC,GRAY,TRIM1#
BROWN,TRIM4#; NEW ZEALAND SPEC,BROWN,TRIM4#
main73240-95425-06iLY6#..RHD..GEN..IV; YY61..T2,T3;YY61..TW..ST;LY60..LHD..IV;LY6#,YY52..GEN..CBU198708-199109
BROWN,TRIM4#; W(3-POINT TYPE FRONT SEAT BELT),BROWN,TRIM4#
GRAY,TRIM1#
DARK BROWN,TRIM4#; NEW ZEALAND SPEC,DARK BROWN,TRIM4#
9011906443
main90119-06443
9033335002
main90333-35002
9095001126
main90950-01126
8 parts on this diagram · 3 diagrams in section
