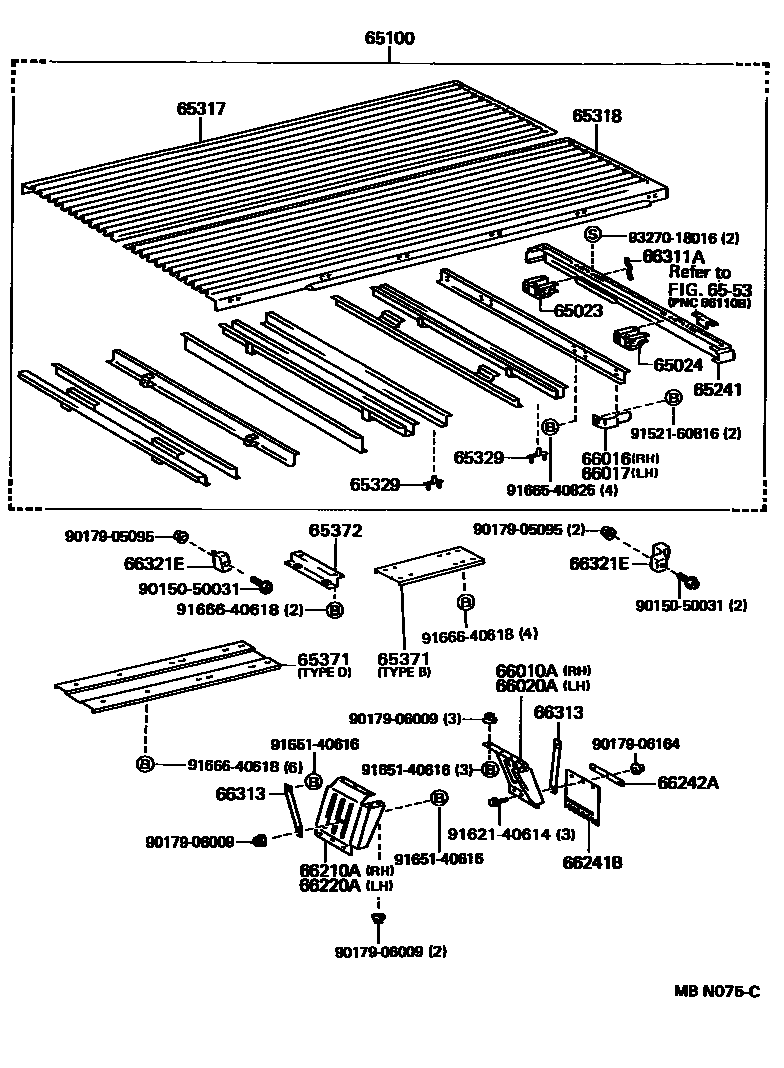

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1 0004 1

65023BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, RH

main65023-95010iLY6#,YY61..T2198708-199505

65024BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, LH

main65024-95010iLY6#,YY61..T2198708-199505

65100FLOOR ASSY, REAR BODY

main65100-25070iYY61..T2199008-199505

main65100-25100iYY52199008-199210

main65100-25101iYY52199210-199505

main65100-25110iYY61..TW..ST199008-199210

main65100-25111iYY61..TW..ST199210-199505

main65100-25120iYY61..T3199008-199505

main65100-25130iLY61..T3..CBU199008-199505

main65100-25200iLY61..ARL..CBU199106-199207

main65100-25240iLY61..TW..ST199210-199505

main65100-95L09iLY61..T2198910-199505

main65100-95L10iYY52198708-199008

main65100-95L12iLY61..TW..ST..GEN198708-199210

main65100-95L15iLY6#,YY61..T3..CBU198708-198910

main65100-95L18iLY6#,YY61..WT198708-198910

main65100-95L20iLY61,YY61..T3..CBU198910-199008

65241SILL, REAR CROSS

main65240-25020iLY61..ARL..CBU199106-199207

main65240-25030iLY61,YY52,61..TW..ST199210-199505

main65240-95037iLY6#,YY52,61..TW..ST198708-199210

main65240-95A06iLY6#,YY61..T3..CBU198708-198910

main65240-95A07iLY6#,YY61..WT198708-198910

main65240-95A09iLY61,YY61..T3..CBU198910-199505

main65240-95A10iLY61,YY61..T2198910-199505

main65241-92206iLY61,YY61..TW..WT198910-199404

main65241-92503iLY61,YY61..TW..WT199404-199505

65317PANEL, FLOOR SIDE, RH

main65317-26020iLY61,YY61..T2199109-199505

main65317-95040iLY6#,YY61..T3..CBU198708-198910

main65317-95043iLY6#,YY61..WT198708-198910

main65317-95044iLY61,YY61..T3..CBU198910-199505

main65317-95047iLY61,YY61..T2198910-199109

65318PANEL, FLOOR SIDE, LH

main65318-95038iLY6#,YY61..(T2,T3)..CBU198708-198910

main65318-95040iLY61,YY61..(T2,T3)..CBU198910-199505

65329BRACKET, REAR FENDER

main65329-95A00iLY6#,YY61..T2198708-199505

65371INSULATOR, REAR FLOOR

main65371-25020iYY61..T2199208-199505

TYPE B

main65371-25040iYY61..RHD..ST199208-199505

TYPE D

main65371-25040iYY61..T2199208-199505

SINGAPORE SPEC

65372STAY, REAR FLOOR INSULATOR

main65372-25020iYY61..T2199208-199505

6553REAR BODY GUARD FRAME & TAIL GATE

→ Go to FIG 65-53

66010AFENDER ASSY, REAR NO.2 RH

main66010-92202iLY61,YY61..TW..WT198910-199505

main66010-95017iLY6#,YY61..T3..CBU198708-199505

main66210-95018iLY6#,YY61..T2198708-199505

66016GUSSET SUB-ASSY, GATE HINGE, RH

main66015-95010iLY61,YY61..T2198910-199505

main66016-95010iLY6#,YY61..WT198708-198910

66017GUSSET SUB-ASSY, GATE HINGE, LH

main66016-95011iLY61,YY61..T2198910-199505

main66017-95010iLY6#,YY61..WT198708-198910

66020AFENDER ASSY, REAR NO.2 LH

main66020-92202iLY61,YY61..TW..WT198910-199505

main66020-95017iLY6#,YY61..T3..CBU198708-199505

main66220-95020iLY6#,YY61..T2198708-199505

66210AFENDER ASSY, REAR NO.1 RH

main66010-95018iLY6#,YY61..T2198708-199505

main66205-95011iLY6#,YY61..T3..CBU198708-199505

main66205-95A00iLY60,YY52,61..TW198708-198804

main66205-95A01iLY6#,YY52,61..TW..ST198804-199505

main66210-92203iLY61,YY61..TW..WT198910-199505

66220AFENDER ASSY, REAR NO.1 LH

main66020-95018iLY6#,YY61..T2198708-199505

main66205-95A00iLY60,YY52,61..TW198708-198804

main66205-95A01iLY6#,YY52,61..TW..ST198804-199505

main66206-95011iLY6#,YY61..T3..CBU198708-199505

main66220-92202iLY61,YY61..TW..WT198910-199505

66241BBAFFLE, RUBBER

main66241-92211iLY61,YY61..TW..WT198910-199505

RH

main66241-92212iLY61,YY61..TW..WT198910-199505

LH

main66241-95010iLY6#,YY61..T2198708-199505

LH

main66241-95600iLY6#,YY52,61..ST..CBU198708-199505

main76625-95012iLY6#,YY61..T2198708-199505

RH

66242APLATE, BAFFLE RUBBER

main66242-92201iLY61,YY61..TW..WT198910-199505

LH

main66242-92202iLY61,YY61..TW..WT198910-199505

RH

main66242-95011iLY6#,YY61..T2198708-199505

main66242-95012iLY6#,YY52,61..ST..CBU198708-199505

66311AHOOK, ROPE, NO.1

main66311-95707iLY61,YY61..T2198910-199505

RH

main66311-95D00iLY6#,YY61..WT198708-198910

RH

main66312-95010iLY6#,YY61..WT198708-198910

LH

main66312-95012iLY61,YY61..T2198910-199505

LH

main66313-92701iLY61,YY61..TW..WT198910-199505

TYPE B

main66315-92832iLY61,YY61..TW..WT198910-199505

TYPE C

66313SUPPORT, REAR FENDER

main66235-92202iLY61,YY61..TW..WT198910-199505

RR

main66235-95011iLY6#,YY61..T2198708-199505

FR

main66236-92200iLY61,YY61..TW..WT198910-199505

FR

main66236-95011iLY6#,YY61..T2198708-199505

RR

66321EBUMPER, GATE RUBBER

main66321-25010iLY61,YY61..(T2,T3)..CBU199109-199505

TAIL

main66321-92200iLY61,YY61..TW..WT198910-199505

SIDE

main66321-92805iLY61,YY61..TW..WT198910-199505

TAIL

main66321-95017iLY6#,YY61..(T2,T3)..CBU198708-199109

TAIL

main66321-95406iLY6#,YY52,61..TW..ST198708-199505

main66331-95010iLY6#,YY61..(T2,T3)..CBU198708-199505

SIDE

9015050031

main90150-50031

9017905095

main90179-05095

9017906009

main90179-06009

9017906164

main90179-06164

9152160816

main91521-60816

9162140614

main91621-40614

9165140616

main91651-40616

9166540825

main91665-40825

9166640618

main91666-40618

9327018016

main93270-18016

31 parts on this diagram · 4 diagrams in section
