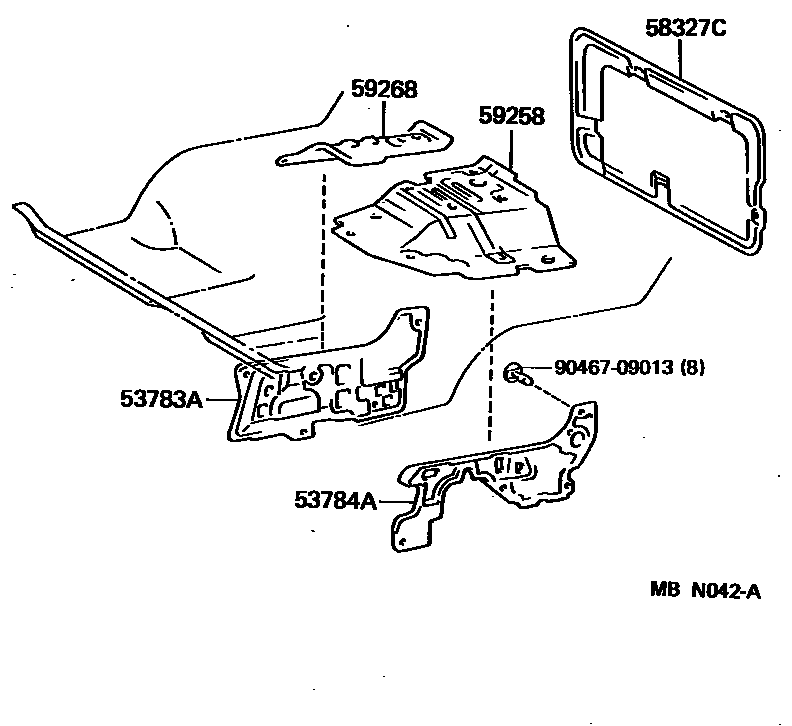

FLOOR INSULATOR

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-95A00iLY61..ARL199210-199505

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-95A01iLY61..ARL199210-199505

58327CINSULATOR, TRANSMISSION SERVICE HOLE COVER

main58327-92601iLY6#,YY52,61..TW198708-199505

59258INSULATOR, ENGINE SERVICE HOLE COVER MAIN

main59258-95010iLY6#,YY61..RHD198708-199505

main59258-95401iLY6#,YY52,61..LHD198708-199505

59268INSULATOR, ENGINE SUB COVER

main59268-95010iLY6#,YY61..RHD198708-199505

main59268-95403iLY6#,YY52,61..LHD198708-199505

9046709013

main90467-09013

6 parts on this diagram · 1 diagram in section
