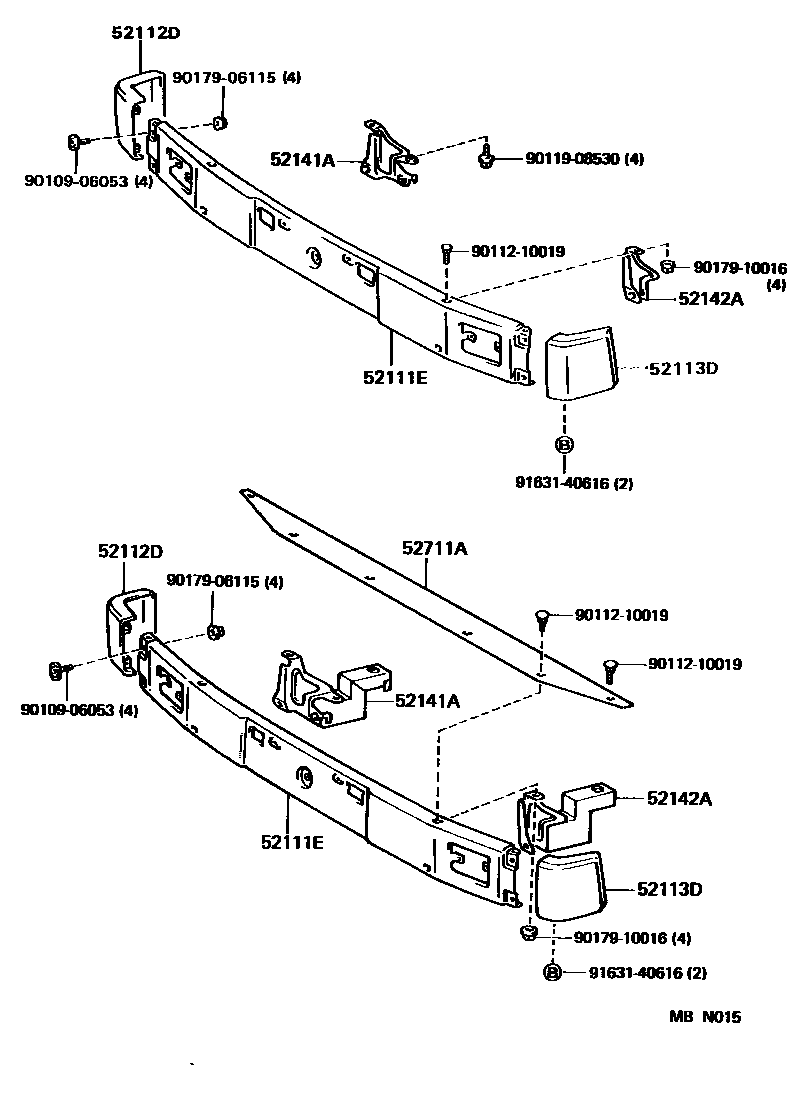

FRONT BUMPER & BUMPER STAY

52111EBAR, FRONT BUMPER

main52111-95434-03iLY6#,YY52,61..GEN198708-199109

W(FOG LAMP),SILVER M,048 ,391 ,4E4 ,541 ,6A9 ,8E5

main52111-95434-05iLY6#,YY52,61..GEN198708-199109

W(FOG LAMP),BEIGE M,048 ,4E4

main52111-95434-J0iYY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN199109-199505

W(FOG LAMP),BLUE,8E5

main52111-95435-03iLY6#,YY52,61198708-199109

SILVER M,048 ,391 ,4E4 ,541 ,6A9 ,8E5

main52111-95435-X3iLY61,YY52,61199109-199505

SILVER M,048 ,391 ,541 ,6A9 ,8E5

main52111-95436-03iLY61..LHD; YY52,61..LHD199109-199505

W(SCHNORKEL AIR CLEANER & FOG LAMP),SILVER M,048 ,391 ,541 ,6A9 ,8E5

main52111-95437-03iLY6#..LHD; YY52,61..LHD198708-199109

W(SCHNORKEL AIR CLEANER),SILVER M,048 ,391 ,4E4 ,541 ,6A9 ,8E5

main52111-95441-01iLY61..GEN..IV198808-198910

IRELAND SPEC,BLACK,048 ,391 ,4E4 ,541 ,6A9 ,8E5

main52111-95448-01iLY61..GEN..IV198808-198910

IRELAND SPEC & W(FOG LAMP),BLACK,048 ,391 ,4E4 ,541 ,6A9 ,8E5

52112DEXTENSION, FRONT BUMPER, RH

main52112-95406iLY6#,YY52,61198708-199505

52113DEXTENSION, FRONT BUMPER, LH

main52113-95406iLY6#,YY52,61198708-199505

52141AARM, FRONT BUMPER, UPPER RH

main52081-95010iLY6#..LHD; YY52,61..LHD198708-199505

W(SCHNORKEL AIR CLEANER)

main52141-95013iLY6#,YY52,61198708-199505

52142AARM, FRONT BUMPER, UPPER LH

main52082-95010iLY6#..LHD; YY52,61..LHD198708-199505

W(SCHNORKEL AIR CLEANER)

main52142-95013iLY6#,YY52,61198708-199505

52711AGARNISH, FRONT BUMPER

main52711-95401iLY6#,YY52,61..LHD198708-199505

9010906053

main90109-06053

9011210019

main90112-10019

9011908530

main90119-08530

9017906115

main90179-06115

9017910016

main90179-10016

9163140616

main91631-40616

12 parts on this diagram · 1 diagram in section
