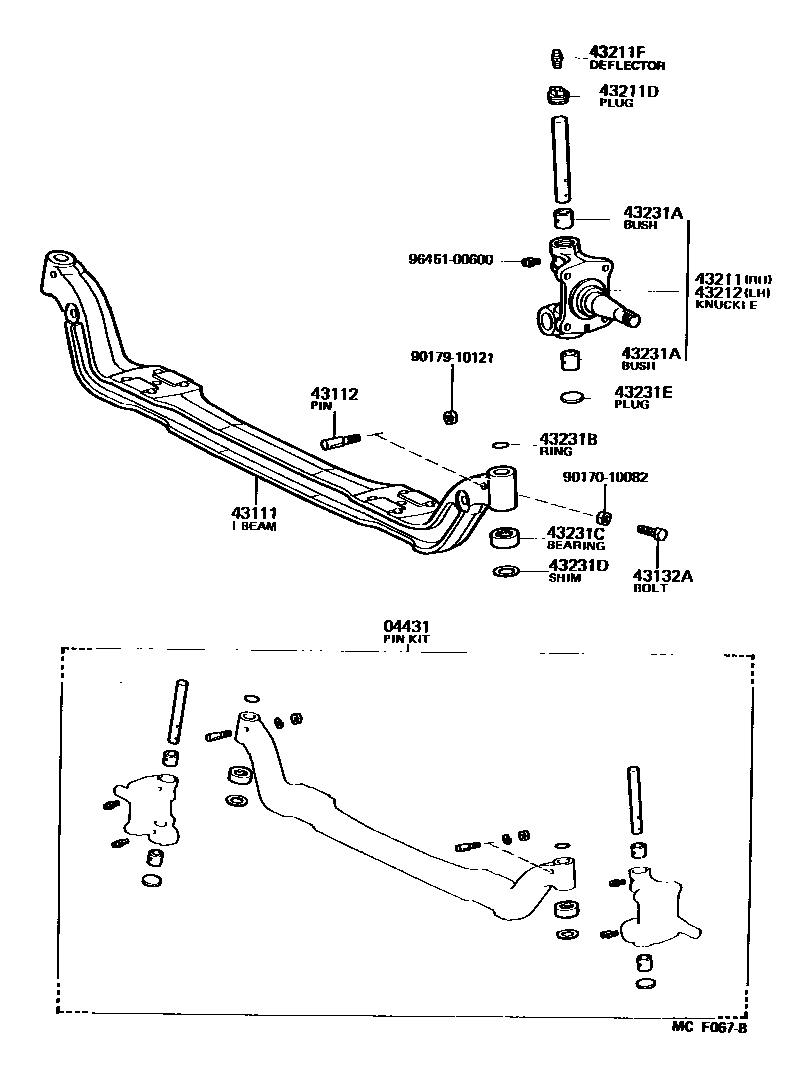

FRONT AXLE ARM & STEERING KNUCKLE

04431PIN KIT, STEERING KNUCKLE KING

main04431-25010iLY6#,YY52,61198708-199505

43111I BEAM, FRONT AXLE

main43111-25040iLY6#,YY52,61198708-199505

sub43111-25041

43112PIN, KING PIN LOCK

main43112-25010×2iLY6#,YY52,61198708-199505

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-10005×2iLY6#,YY52,61198708-199505

43211KNUCKLE, STEERING, RH

main43201-25060iLY6#,YY52,61198708-199008

main43201-25070iLY61,YY52,61199008-199505

43211DPLUG (FOR STEERING KNUCKLE)

main90345-32001×2iLY6#,YY52,61198708-199008

main90345-33004×2iLY61,YY52,61199008-199505

43211FPLUG, BLEEDER (FOR STEERING KNUCKLE)

main90930-03031×2iLY6#,YY52,61198708-199505

43212KNUCKLE, STEERING, LH

main43202-25050iLY6#,YY52,61198708-199008

main43202-25060iLY61,YY52,61199008-199505

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73084×2iLY6#,YY52,61198708-199505

LWR

sub90999-73160

main90999-73085×2iLY6#,YY52,61198708-199505

UPR

sub90999-73159

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main96711-19025×2iLY6#,YY52,61198708-199505

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-25002×2iLY6#,YY52,61198708-199505

43231DSHIM (FOR KING PIN)

main90564-25125iLY6#,YY52,61198708-199505

T=0.10

main90564-25126iLY6#,YY52,61198708-199505

T=0.05

main90564-25127iLY6#,YY52,61198708-199505

T=0.25

43231EPLUG (FOR STEERING KNUCKLE)

main90345-33003×2iLY61,YY52,61199008-199505

main96412-03500×2iLY6#,YY52,61198708-199008

9017010082

main90170-10082

9017910121

main90179-10121

9645100600

main96451-00600

16 parts on this diagram · 1 diagram in section
