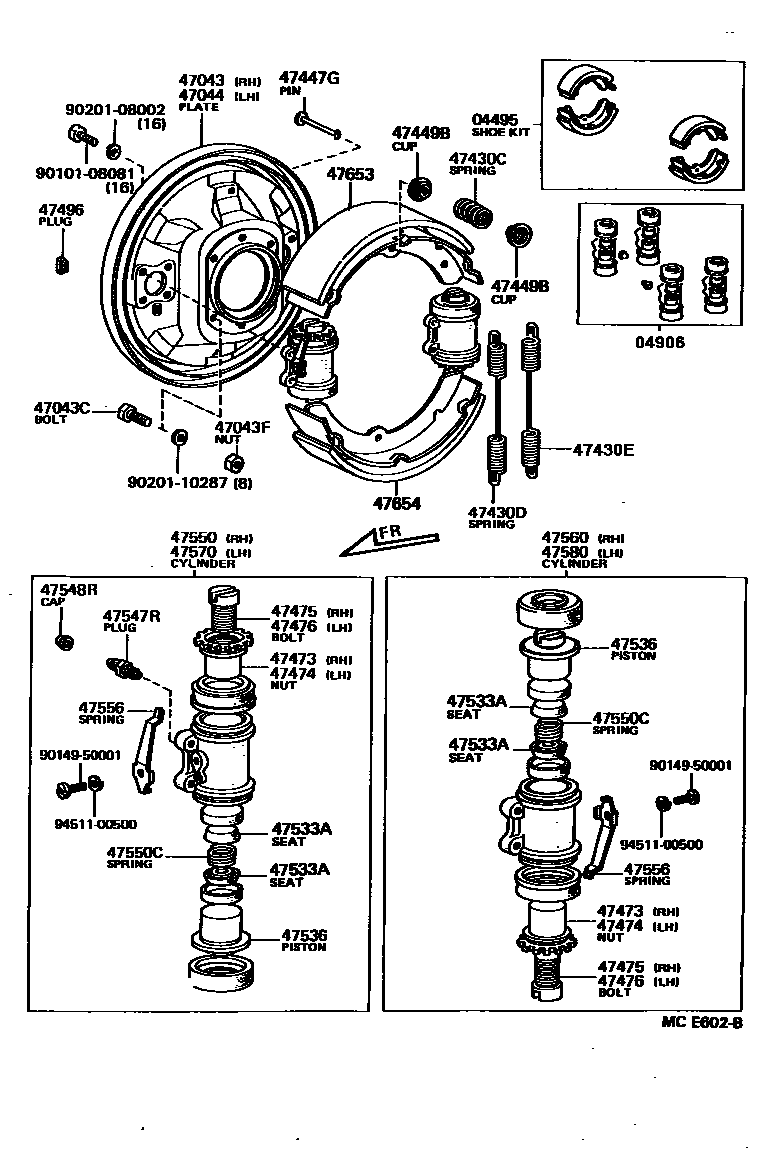

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04495SHOE KIT, REAR BRAKE
MARK NBK LN508
MARK NBK LN508
MARK NBK LN508,W(FR DISC BRAKE)
MARK NBK LN503
04906CUP KIT, REAR WHEEL CYLINDER
W(FR DISC BRAKE)
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
*10-1.25PX23-13
*10-1.25PX27-18
47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
W(FR DISC BRAKE)
47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
W(FR DISC BRAKE)
47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)
47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47496PLUG, HOLE(FOR REAR BRAKE)
47533ASEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
W(FR DISC BRAKE)
47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
W(FR DISC BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
W(FR DISC BRAKE)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
W(FR DISC BRAKE)
47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
W(FR DISC BRAKE)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
W(FR DISC BRAKE)
47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
W(FR DISC BRAKE)
47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
9010108081
main90101-08081
9014950001
main90149-50001
9020108002
main90201-08002
9020110287
main90201-10287
9451100500
main94511-00500
33 parts on this diagram · 3 diagrams in section
