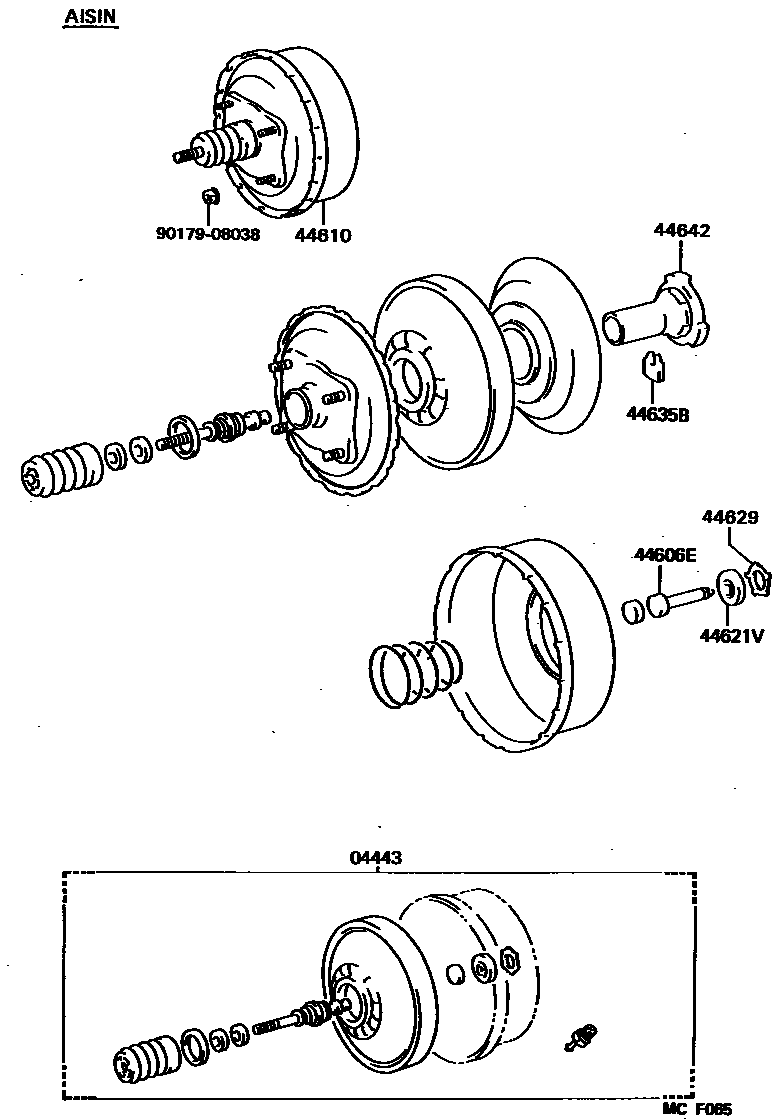

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-25110iLY61..T2198808-199505

main04443-25120iYY61..T2198708-199505

main04443-25130iYY52,61..ST198708-199505

W(FR DISC BRAKE)

main04443-25140iLY60..LHD;LY61..ARL198708-199505

main04443-25140iLY61..ST..GEN198808-199505

W(FR DISC BRAKE)

main04443-25160iYY52,61..ST198708-199505

main04443-25170iLY61..ST..GEN198808-199505

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-36240iLY6#,YY61..LHD..T3;LY6#,YY52,61..(T2,TW)..GEN198708-199505

44610BOOSTER ASSY, BRAKE

main44610-25130iLY6#,YY61..WT198708-199505

main44610-25140iLY61,YY61..LHD198708-199505

main44610-25150iLY6#..ARL198708-199505

W(FR DISC BRAKE)

main44610-25160iLY6#,YY52,61..LHD198708-199505

W(FR DISC BRAKE)

main44610-25180iLY6#,YY61..RHD..ST..GEN198708-199505

44621VSEAL, BOOSTER BODY

main44621-28120iLY6#,YY61..LHD..T3;LY6#,YY52,61..(T2,TW)..GEN198708-199505

44629RING, CIRCULAR INTERNAL

main44628-28120iLY6#,YY61..LHD..T3;LY6#,YY52,61..(T2,TW)..GEN198708-199505

44635BKEY, VALVE STOPPER

main44635-36240iLY6#,YY61..LHD..T3;LY6#,YY52,61..(T2,TW)..GEN198708-199505

44642PISTON, BRAKE BOOSTER

main44642-36240iLY6#,YY52,61..LHD198708-199505

main44642-36260iLY6#,YY61..WT198708-199505

9017908038

main90179-08038

8 parts on this diagram · 4 diagrams in section
