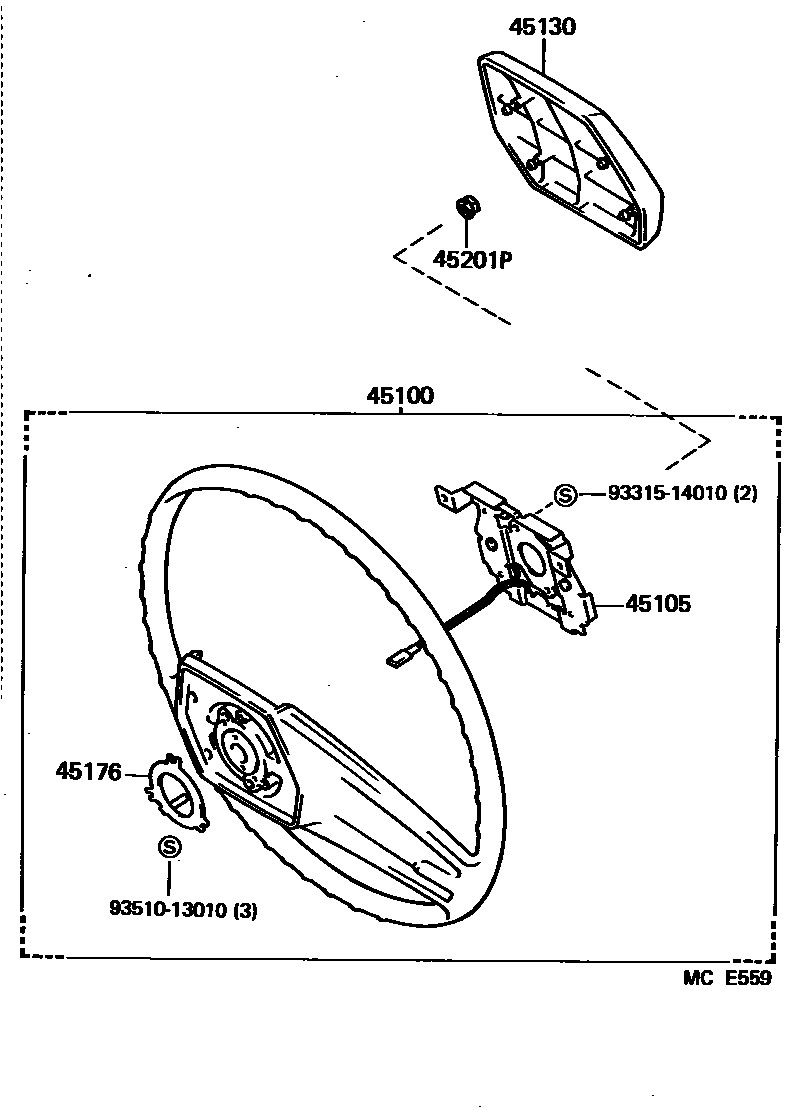

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-36110-06iLY6#,YY52,61198708-199109

2SPOKE,POLYPROPYLENE,BROWN,TRIM4#

main45100-36110-B0iLY61,YY52,61199109-199505

2SPOKE,POLYPROPYLENE,GRAY,TRIM1#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-36010iLY6#,YY52,61198708-199505

45130BUTTON ASSY, HORN

main45130-36100-06iLY6#,YY52,61198708-199109

BROWN,TRIM4#

main45130-36100-B0iLY61,YY52,61199109-199505

GRAY,TRIM1#

45176RING, HORN CONTACT

main45176-36010iLY6#,YY52,61198708-199505

45201PNUT, STEERING WHEEL SET

main90179-12071iLY61,YY52,61199306-199505

main90179-12086iLY6#,YY52,61198708-199306

9331514010

main93315-14010

9351013010

main93510-13010

7 parts on this diagram · 1 diagram in section
